Diagnostic Aids

Check for poor connections or damaged harness.

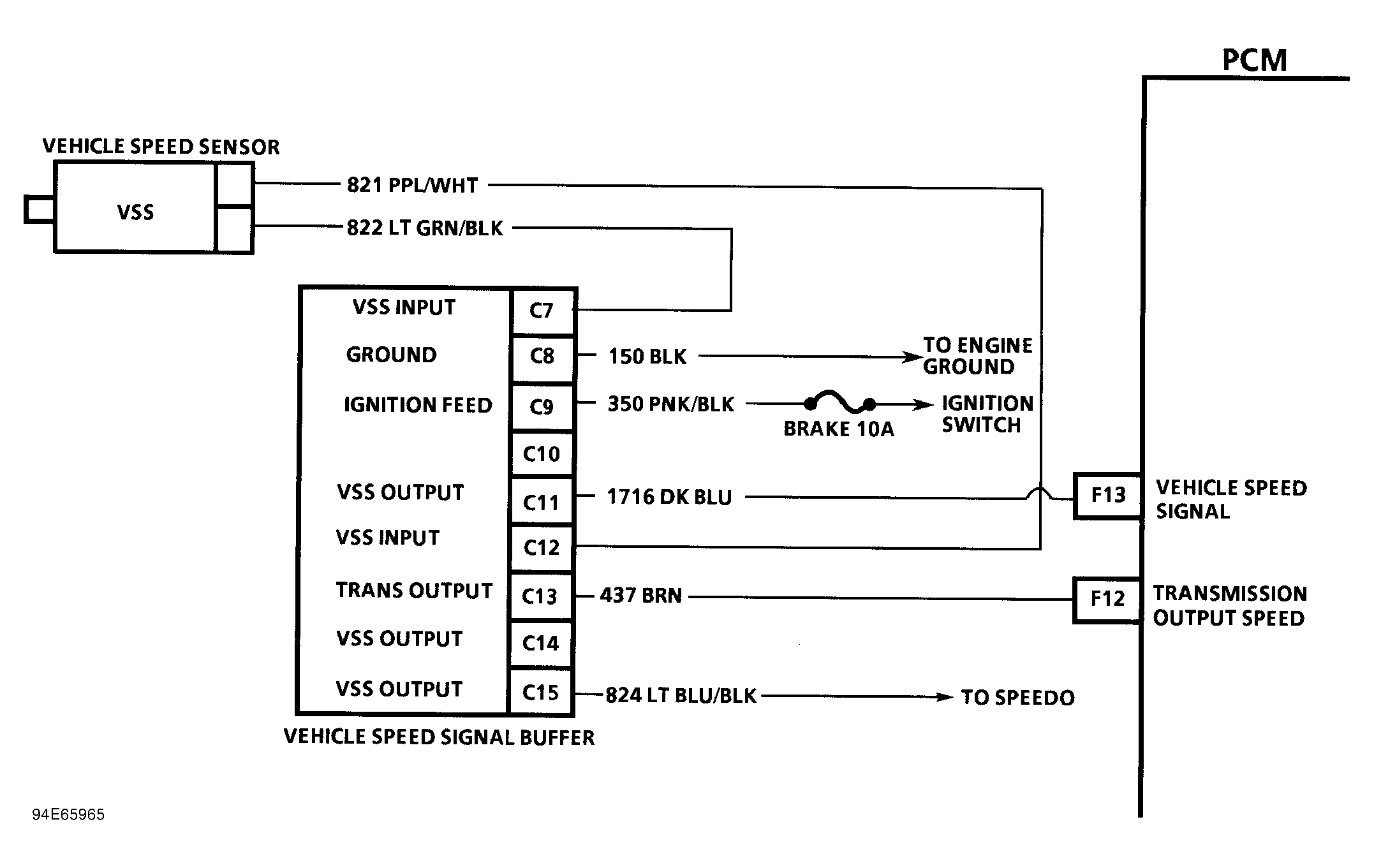

Fig 1: Code 16 Schematic ("C" & "K" Series A/T) VSS Buffer Fault

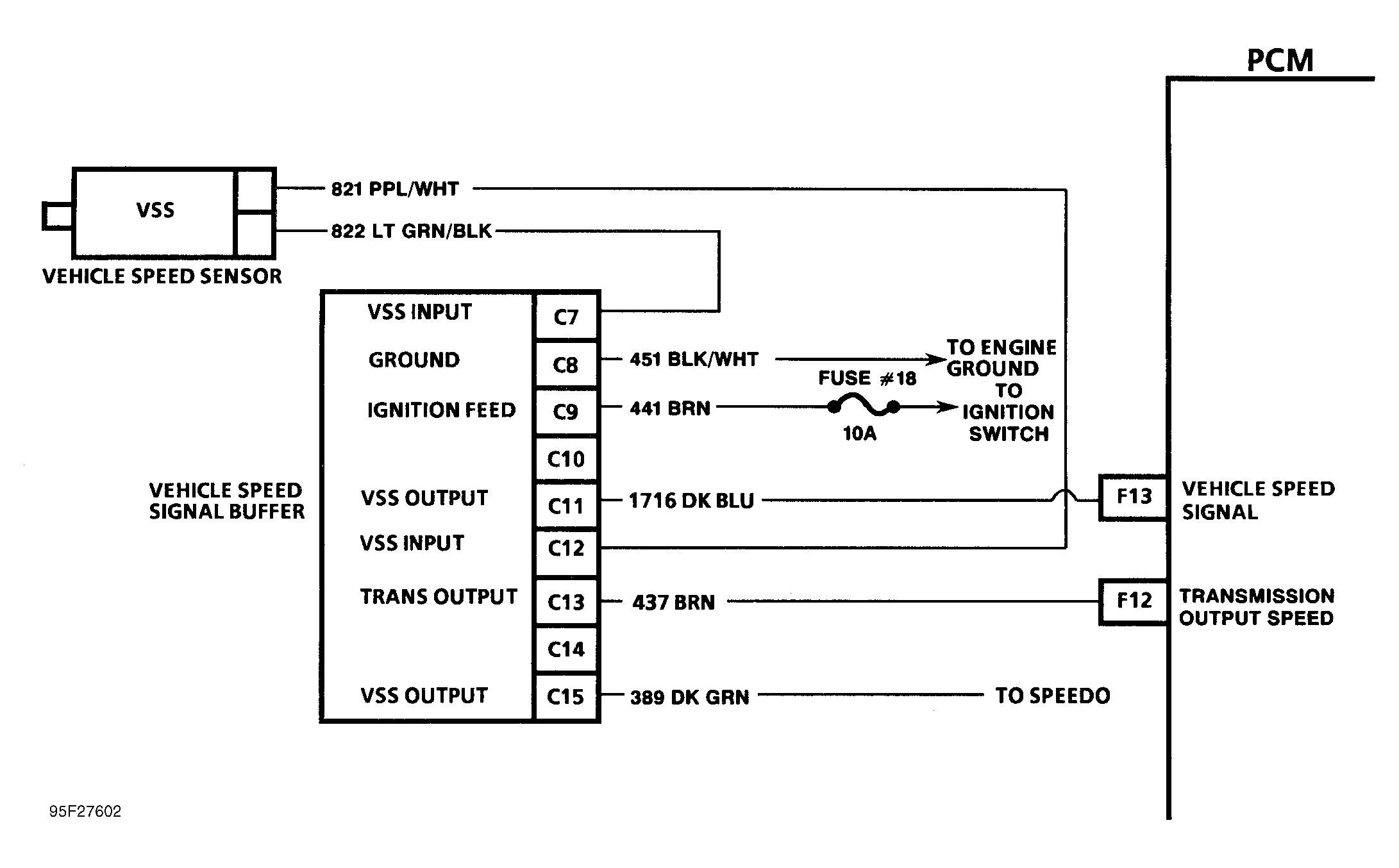

Fig 2: Code 16 Schematic ("G" Series) VSS Buffer Fault

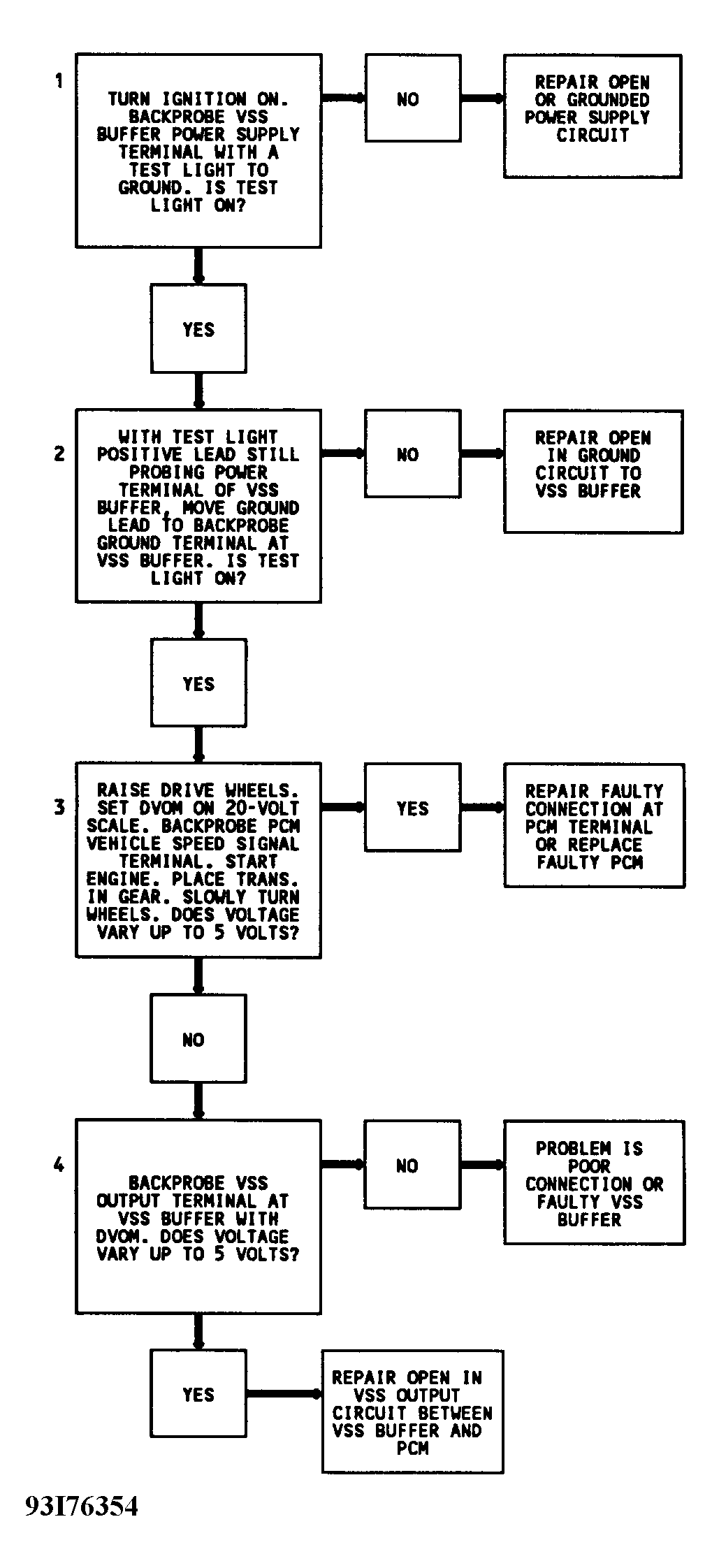

Fig 3: Code 16 Flow Chart (All Models) VSS Buffer Fault
