Diagnostic Aids (Knock Sensor With Spark Control Module)

Code 43 can be caused by a faulty knock sensor connection at ESC module or engine control module. Also, check controller-to-control module signal line for an open or short to ground.

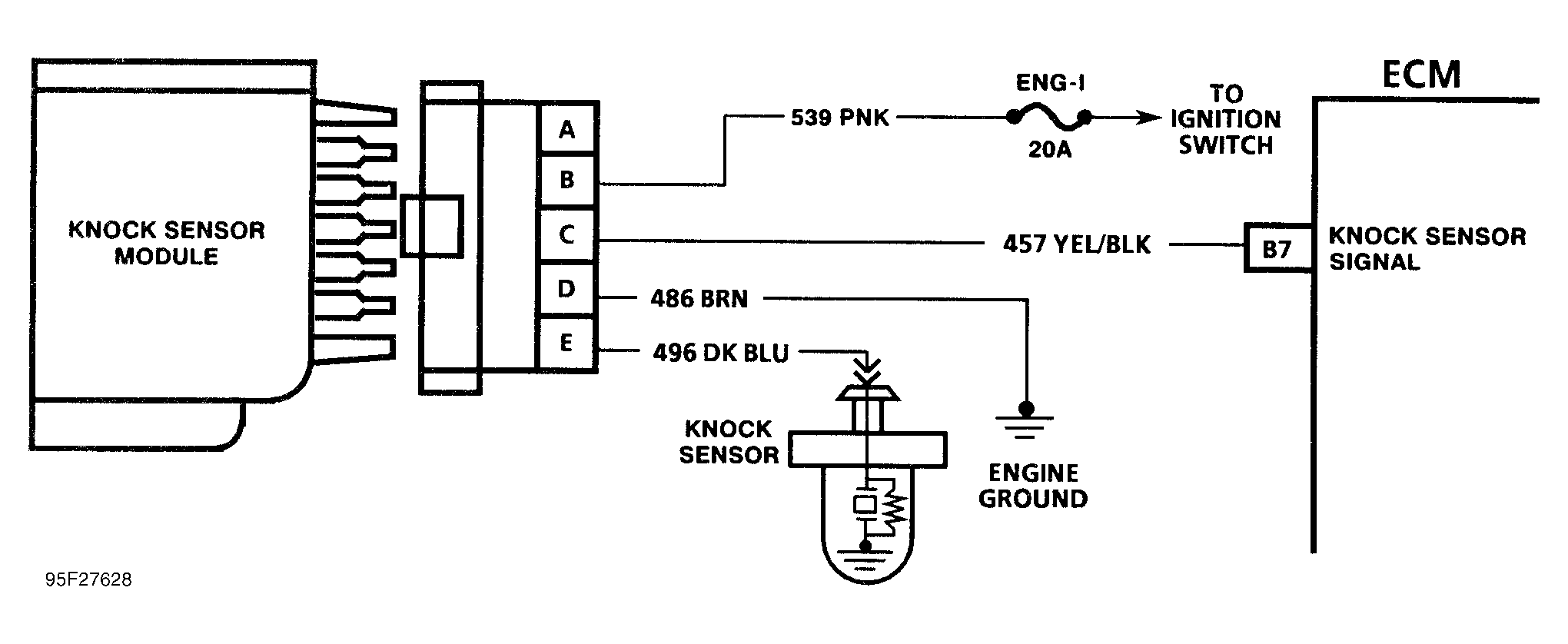

Fig 1: Code 43 Schematic ("P" Series) Knock Sensor With Spark Control Module

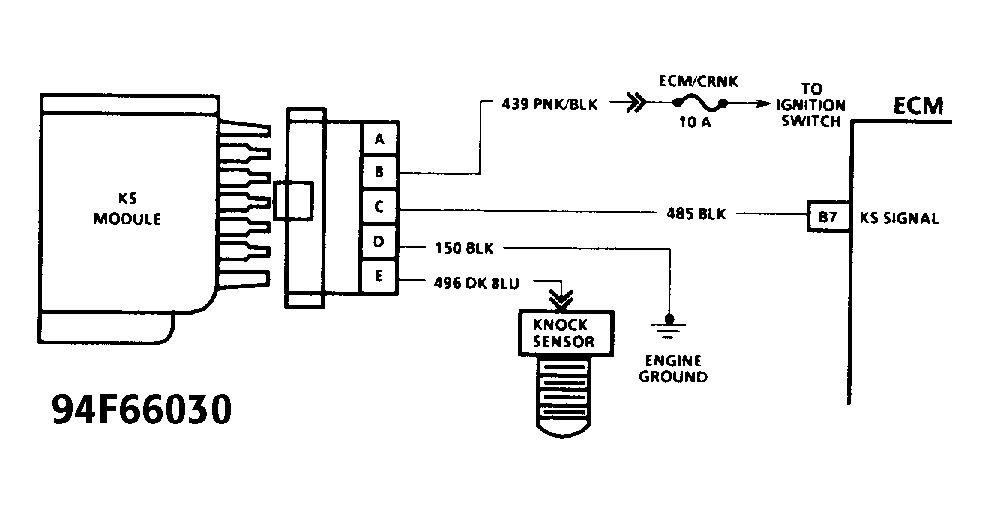

Fig 2: Code 43 Schematic ("C" & "K" Series) Knock Sensor With Spark Control Module

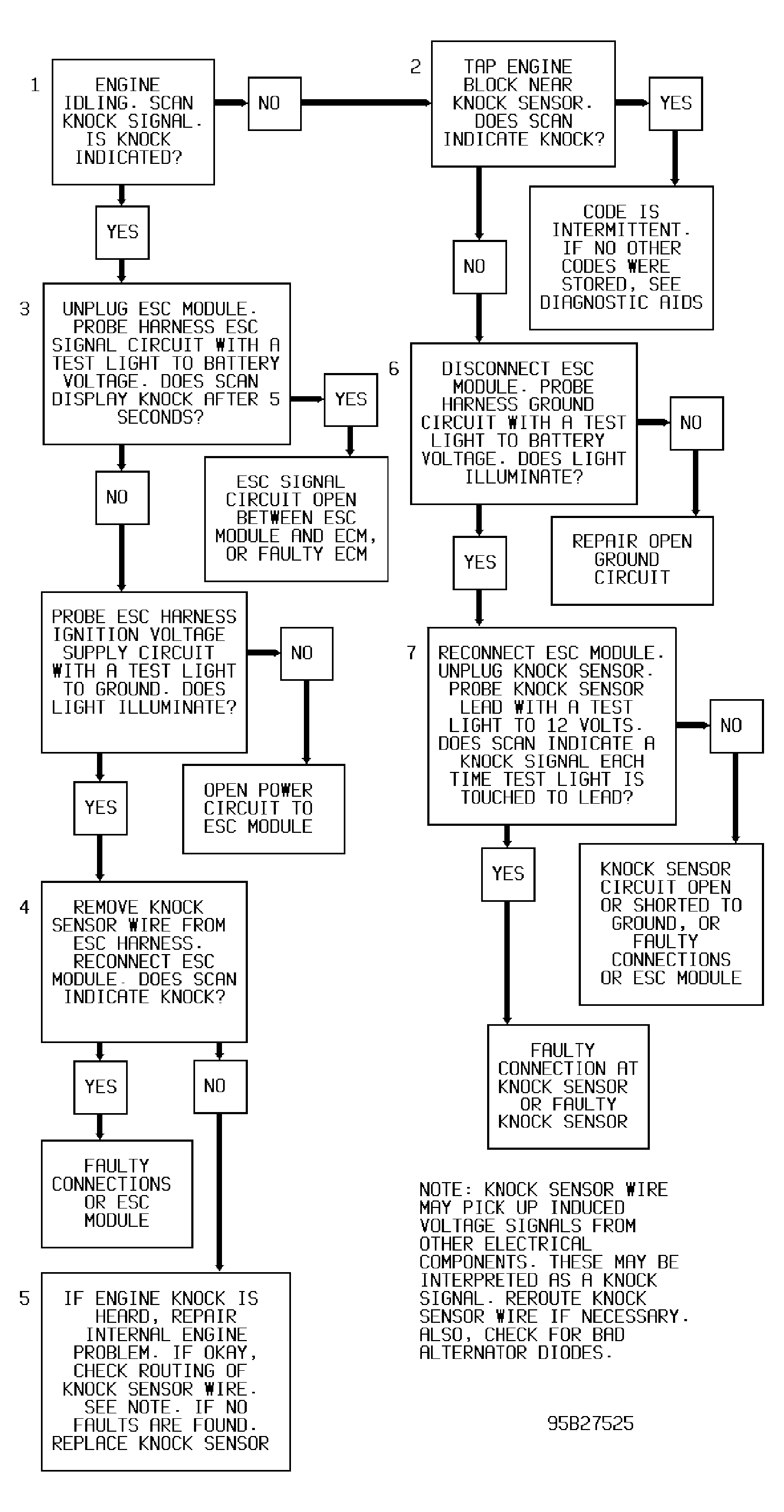

Fig 3: Code 43 Flow Chart (All Models) Knock Sensor With Spark Control Module
