Diagnostic Aids

Check all connections, especially at transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES - GASOLINE article.

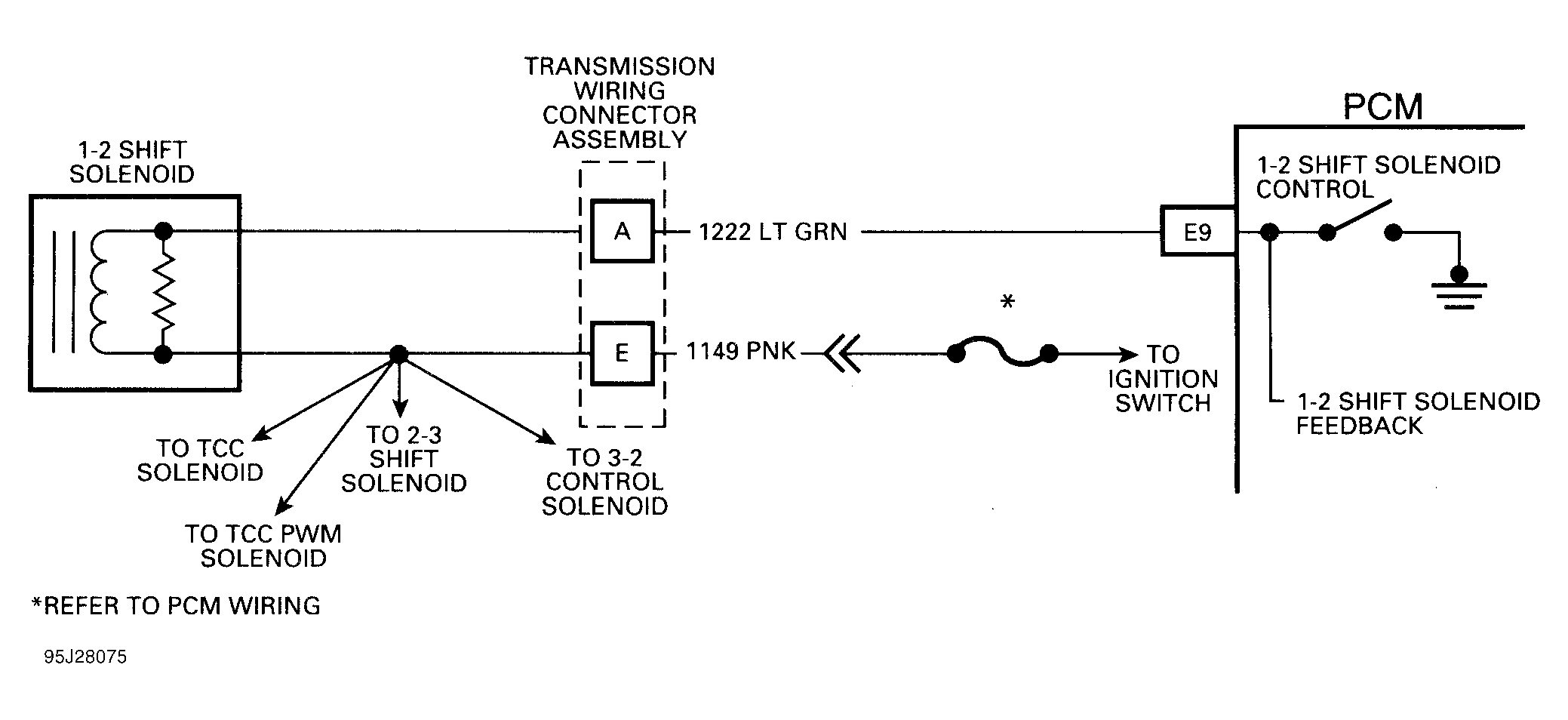

Fig 1: Code 82 Schematic (All Models) Transmission 1-2 Error

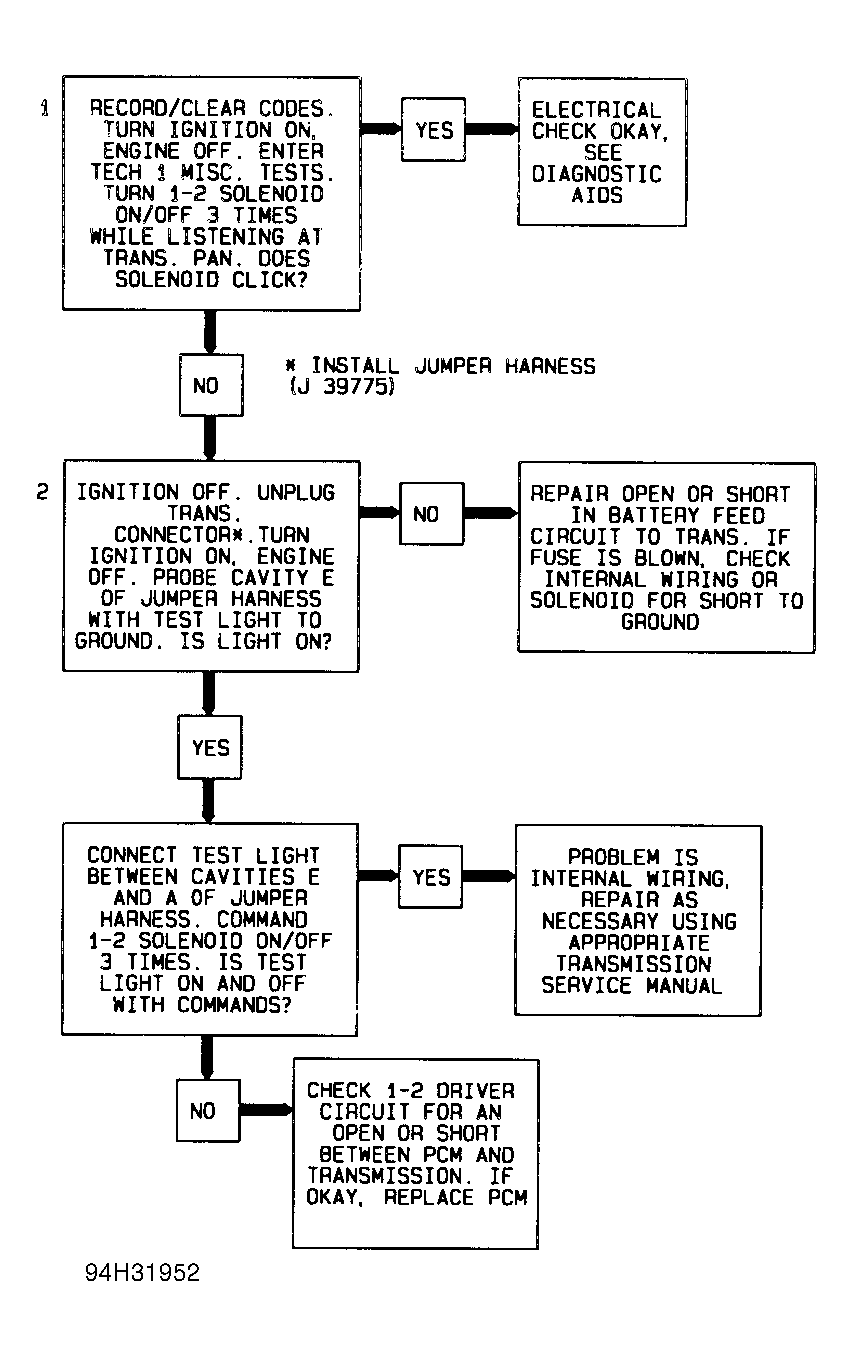

Fig 2: Code 82 Flow Chart (All Models) Transmission 1-2 Error
