Component Locations

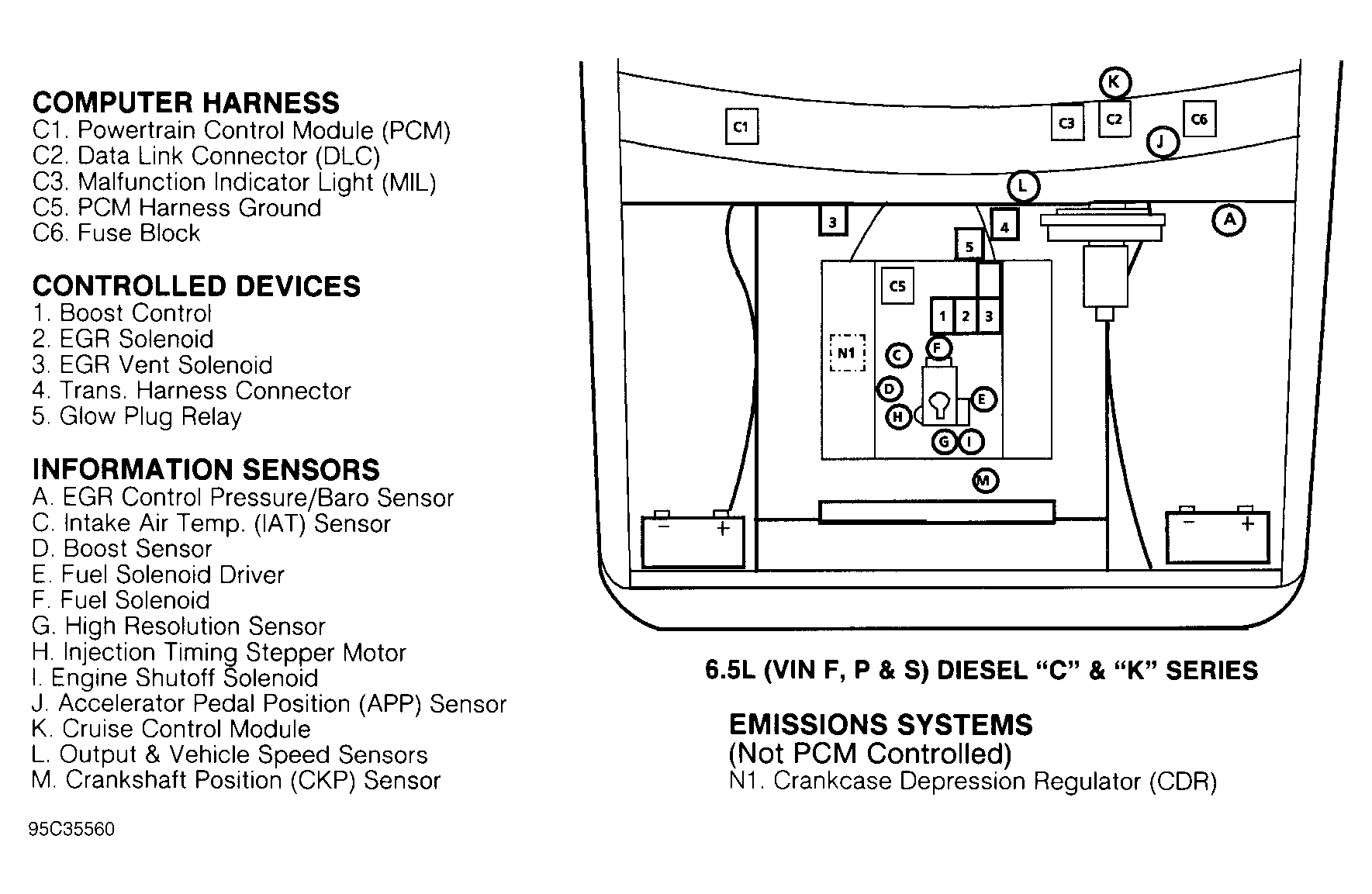

Fig 1: Component Locations
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
