Transmission Control Module (TCM) C1 Diesel

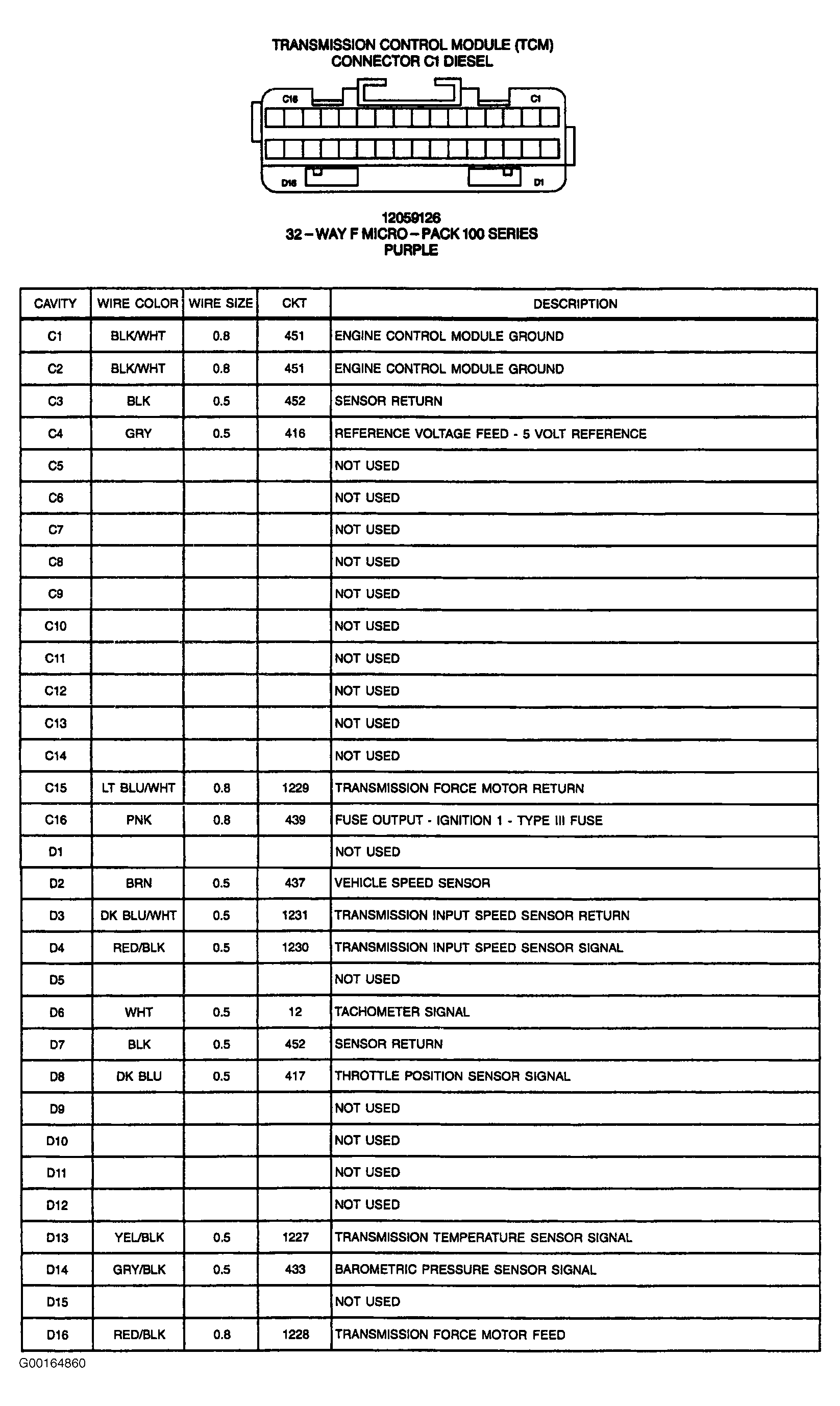

Fig 1: Transmission Control Module (TCM) C1 Diesel - 32-Pin Connector, Purple
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
