Brake Service Information
NOTE:
For more information regarding brake system service refer to the BRAKE SYSTEM article in the BRAKES section.

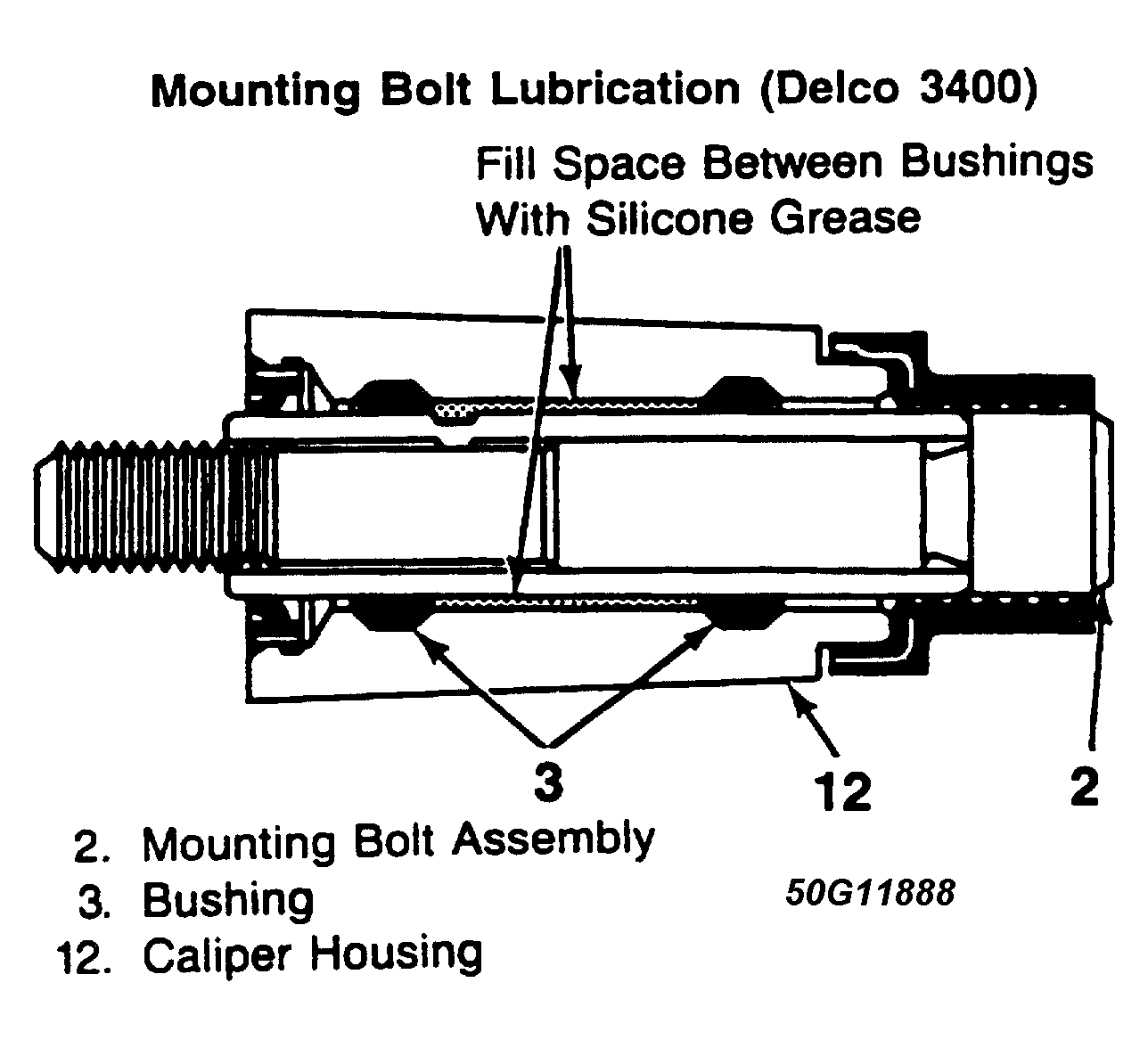

Fig 1: Brake Caliper Lubrication (Delco 3400/Under 9600# GVW)
Courtesy of GENERAL MOTORS CORP.

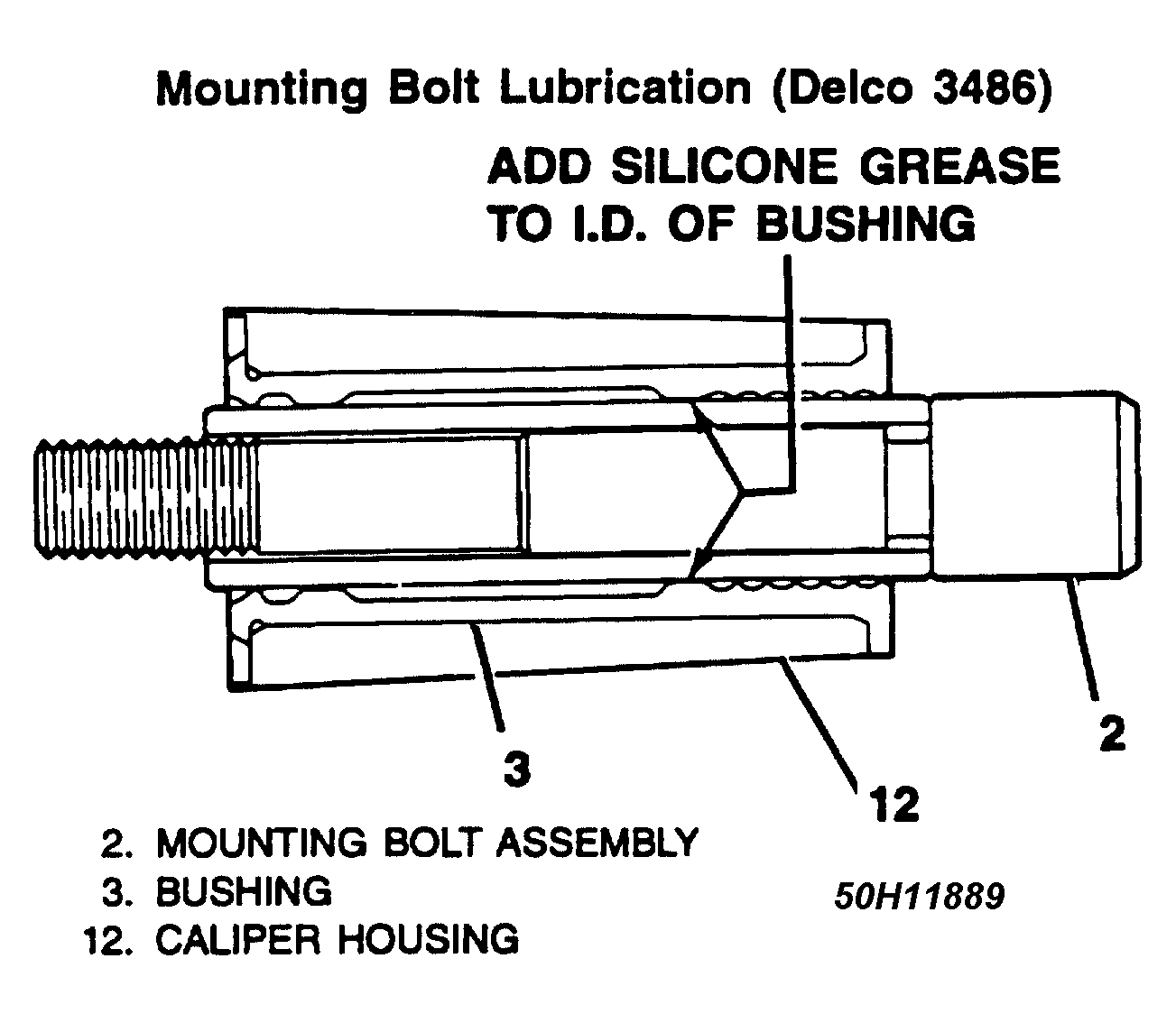

Fig 2: Brake Caliper Lubrication (Delco 3486/10-12,000# GVW)
Courtesy of GENERAL MOTORS CORP.

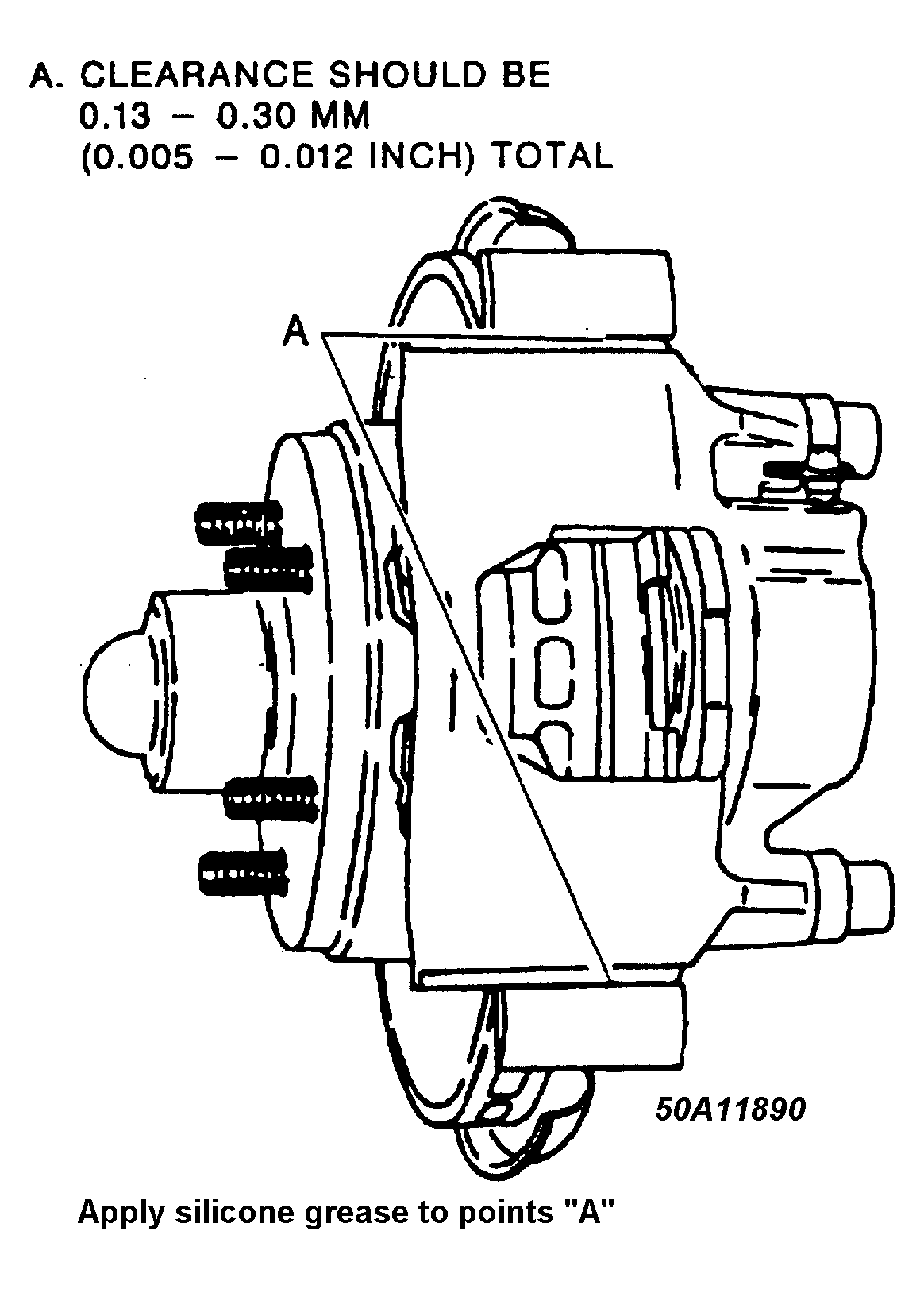

Fig 3: Brake Caliper Lubrication (Front & Rear C3500 HD)
Courtesy of GENERAL MOTORS CORP.
