Idler Arm: Notes
NOTE:

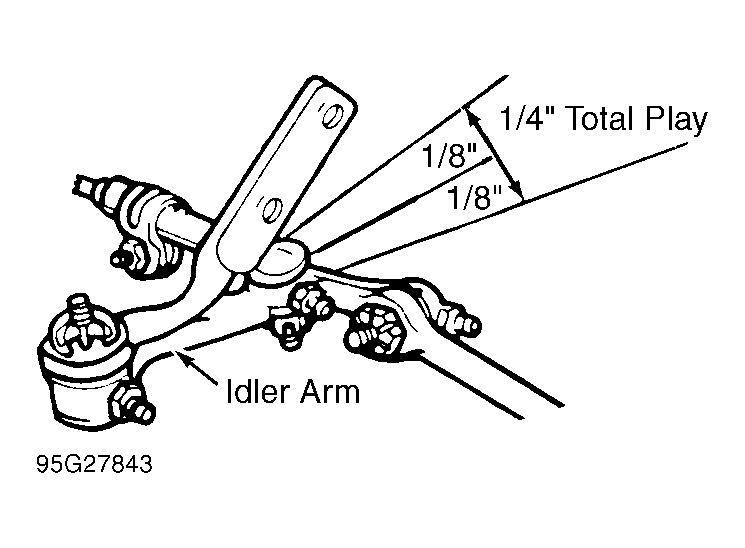

Replace idler arm assembly if an up and down force of 25 ft. lbs. (110 N.m), applied at relay rod end of idler arm, produces a lash of more than 1/8" (3 mm) for a total of 1/4" (6 mm) in straight-ahead position. See Figure
.
