Relay - Motor Home Chassis (Multiple Applications)

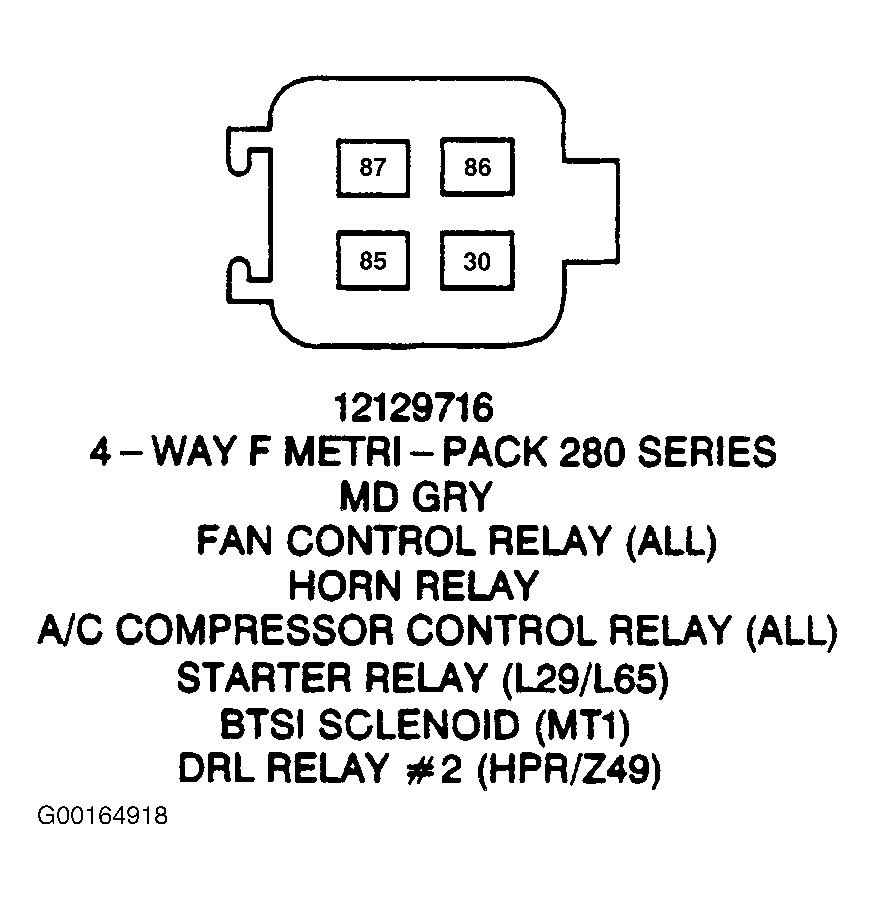

Fig 1: Relay - Motor Home Chassis (Multiple Applications, See Table) - 4-Pin Connector, Medium Gray
G00164918Courtesy of GENERAL MOTORS CORP.
