Brake Pressure Modulator Valve C2

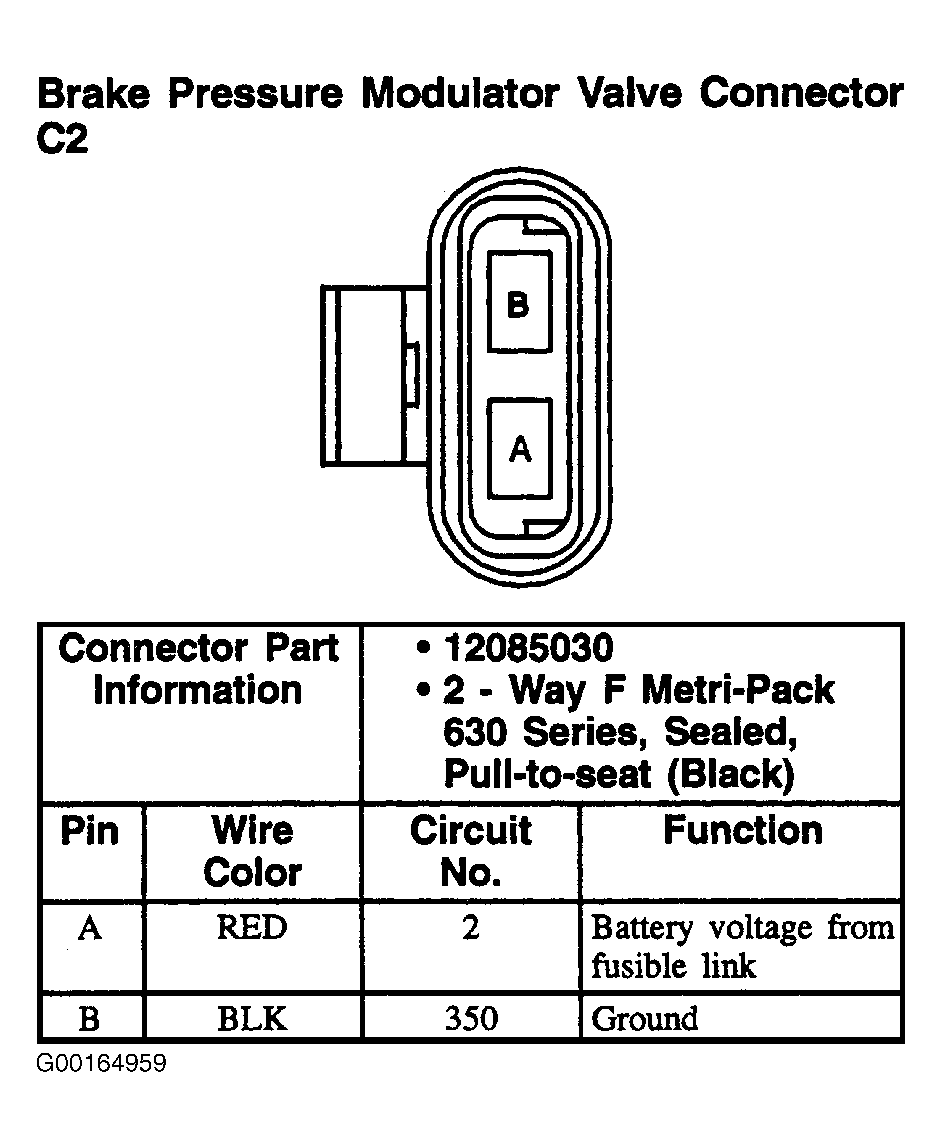

Fig 1: Brake Pressure Modulator Valve C2 - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
