Fuel Level Buffer Module

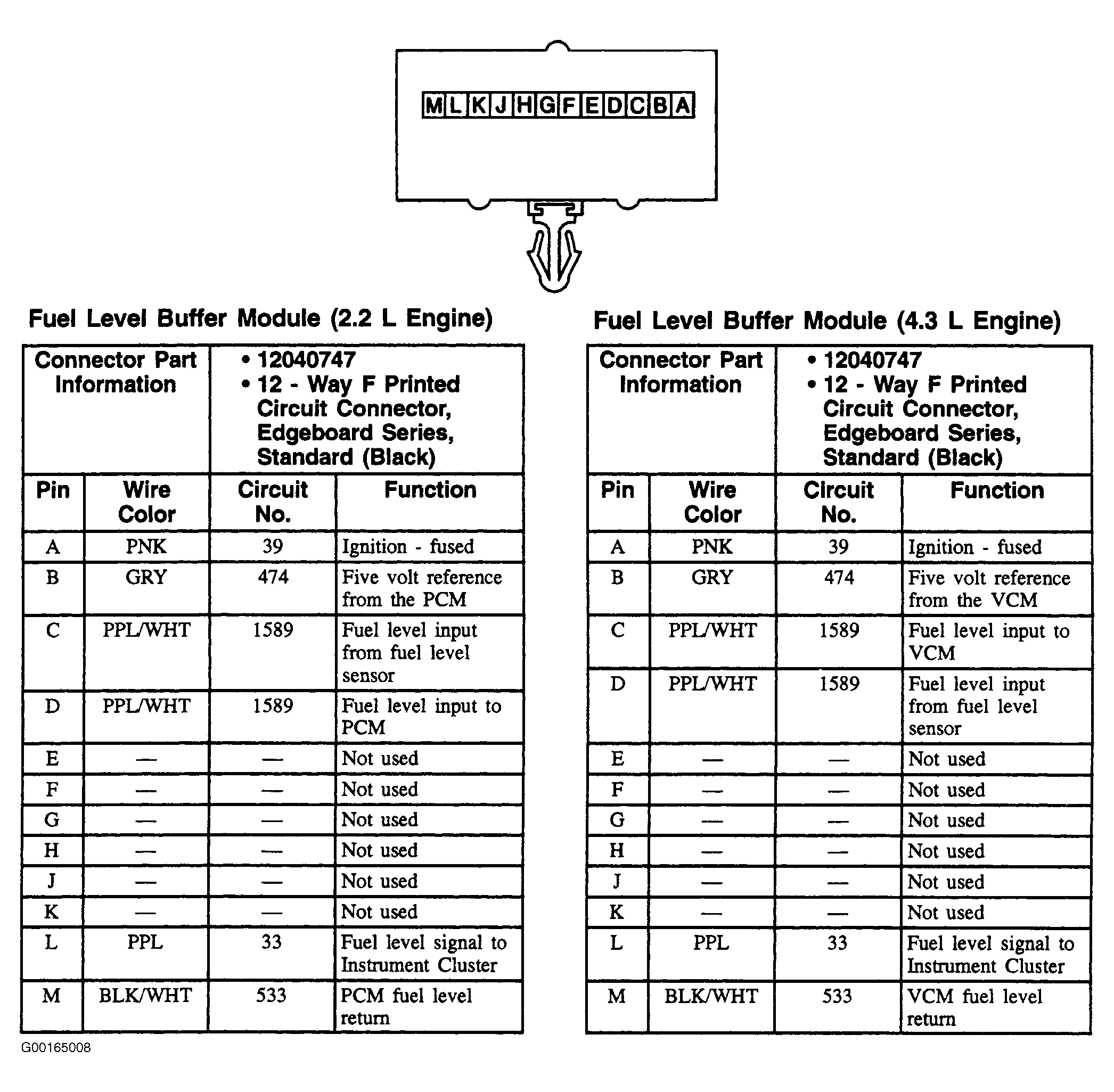

Fig 1: Fuel Level Buffer Module - 12-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
