Connector Terminal Identification: Generator

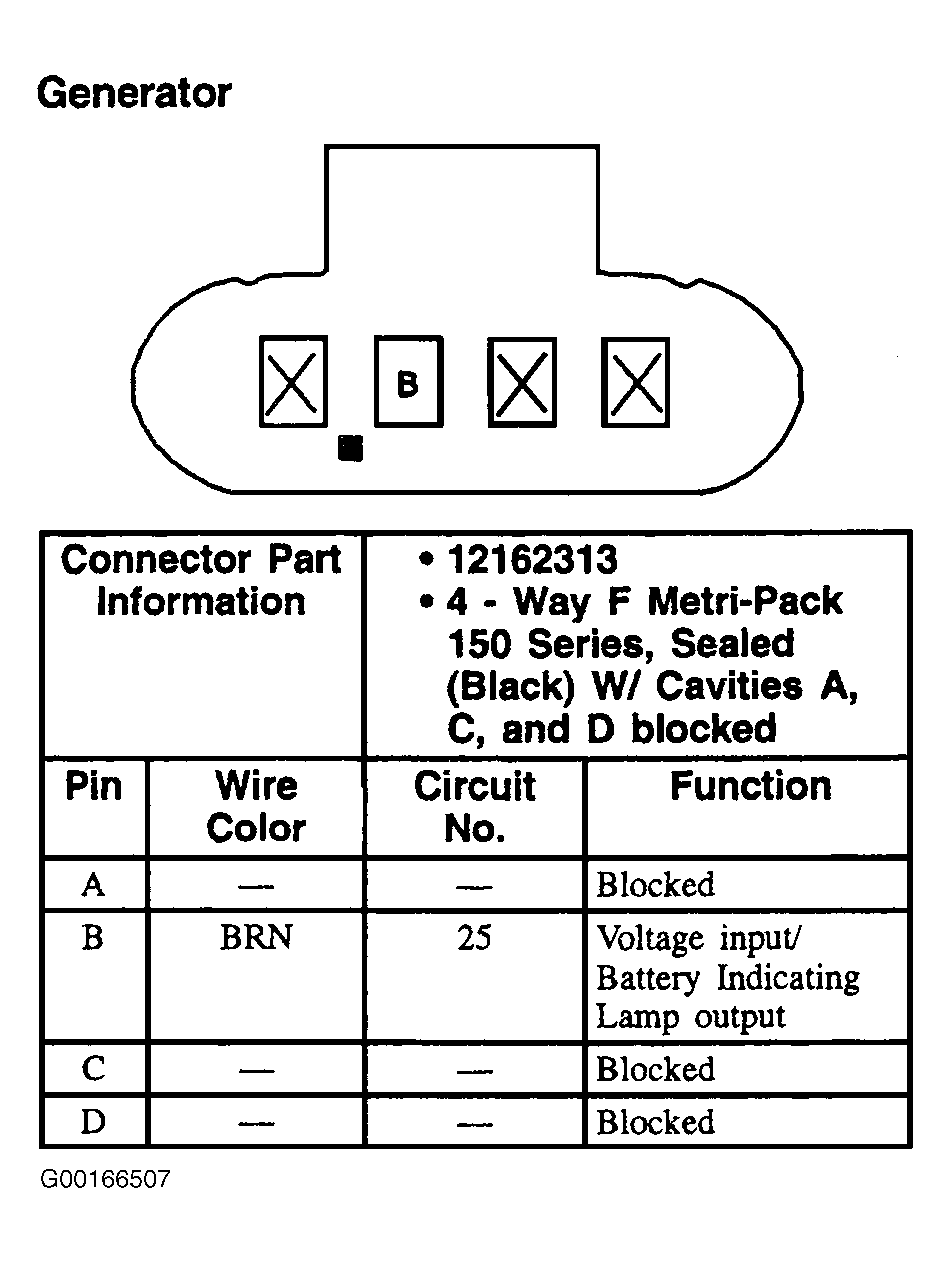

Fig 1: Generator - 4-Pin Connector, Black

G00166507

Courtesy of GENERAL MOTORS CORP.
