Connector Terminal Identification: Horn

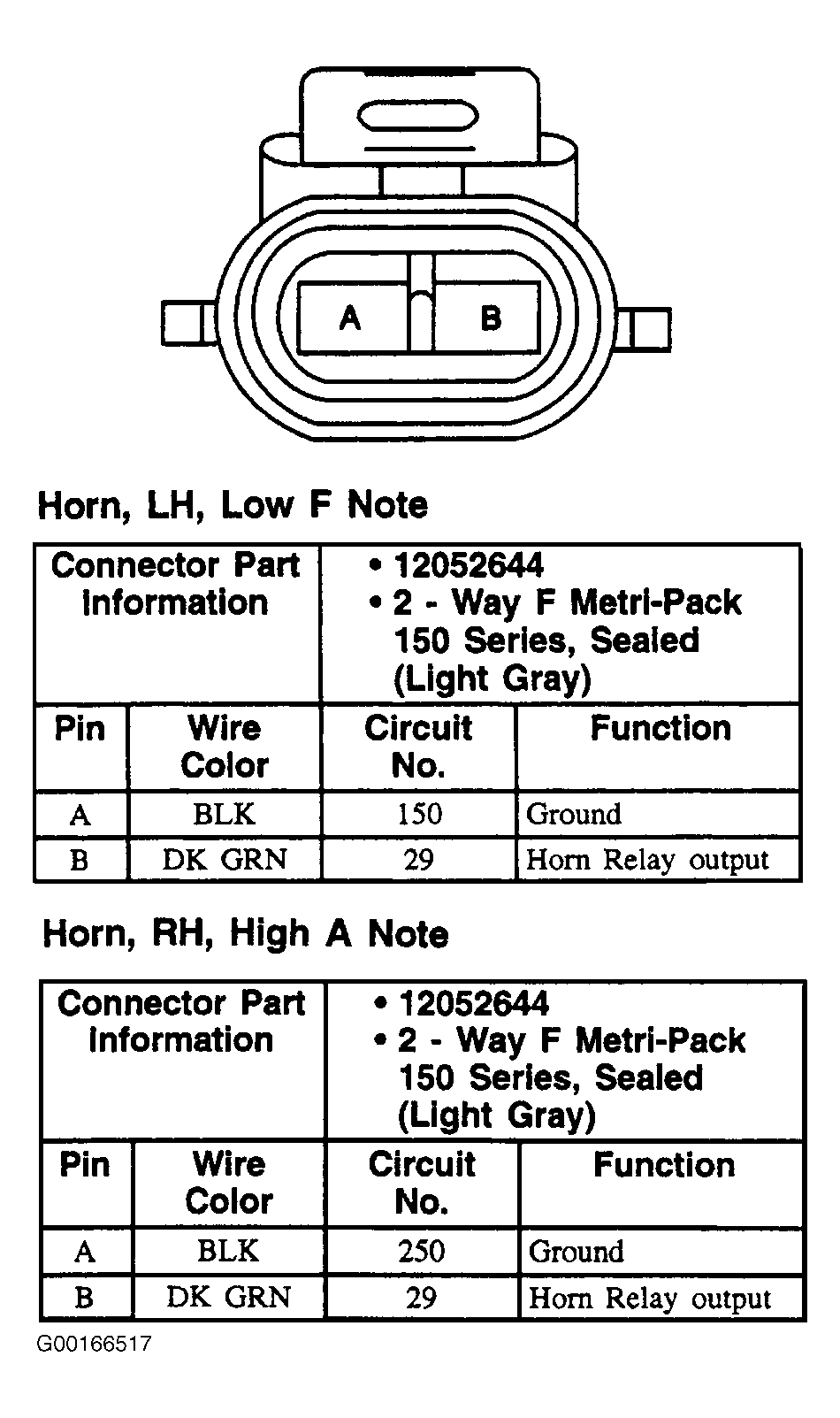

Fig 1: Horn - 2-Pin Connector, Light Gray
G00166517Courtesy of GENERAL MOTORS CORP.
