Inflatable Restraint (Discriminating) Sensor (LH)

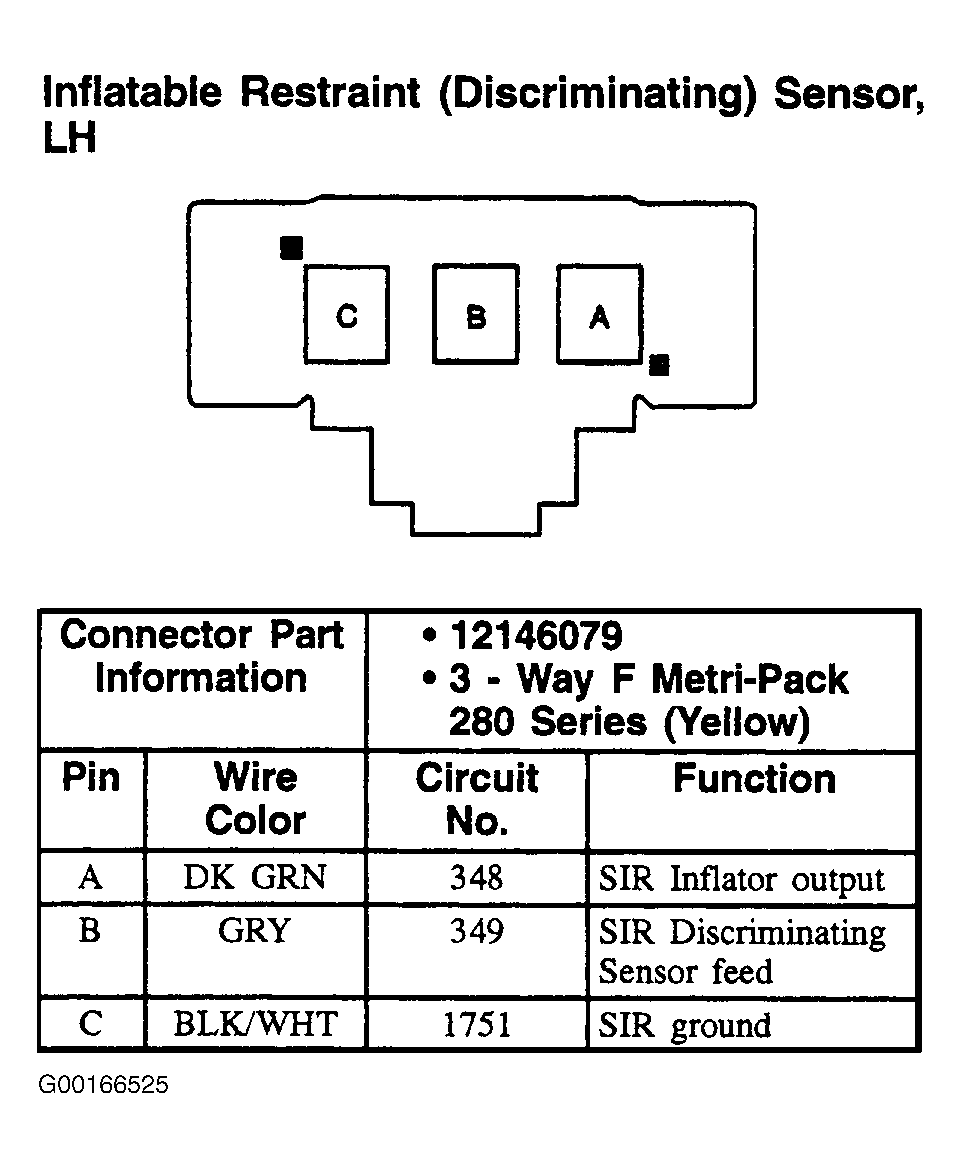

Fig 1: Inflatable Restraint (Discriminating) Sensor (LH) - 3-Pin Connector, Yellow
G00166525Courtesy of GENERAL MOTORS CORP.
