Inflatable Restraint Diagnostic Energy Reserve Module

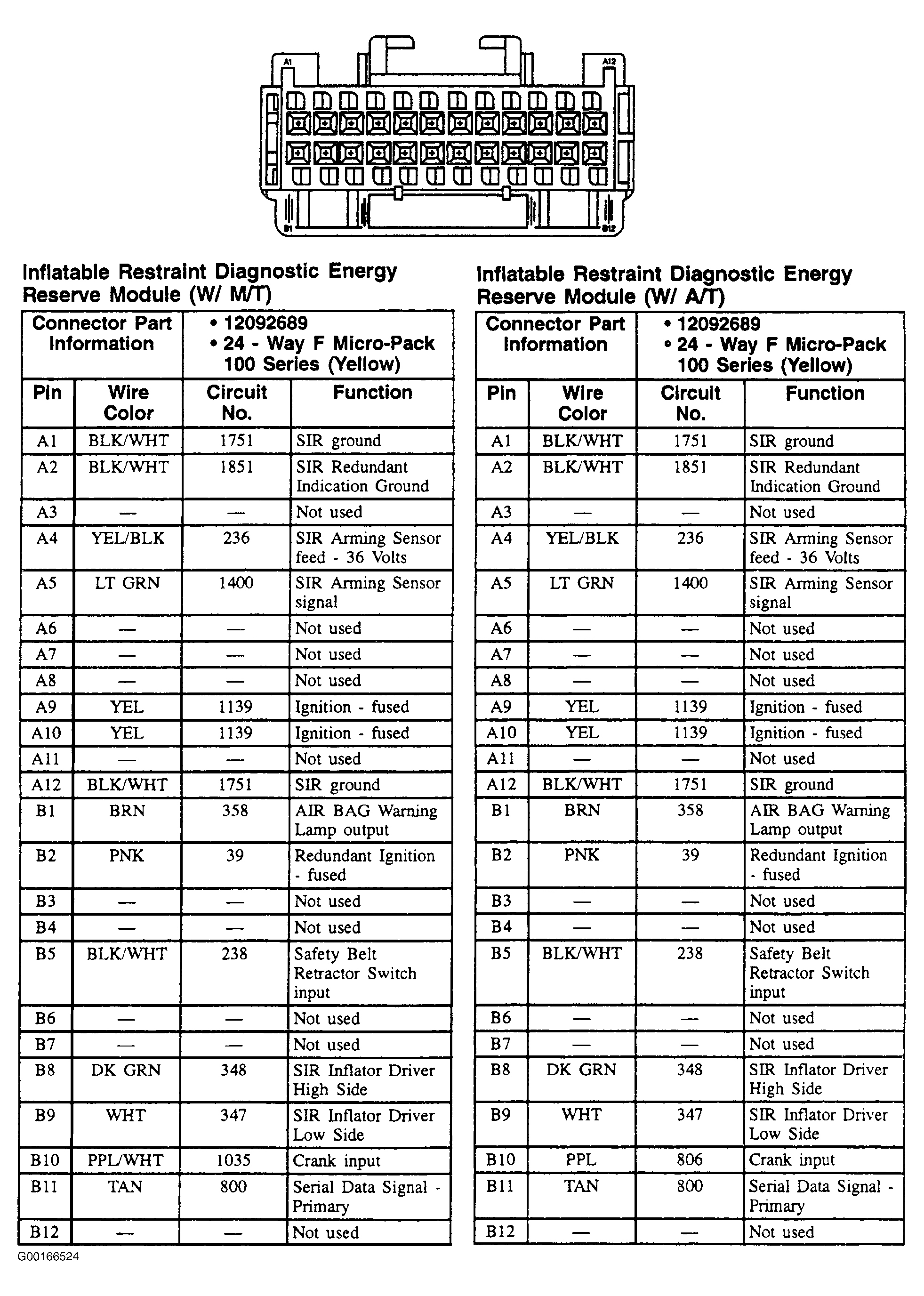

Fig 1: Inflatable Restraint Diagnostic Energy Reserve Module - 24-Pin Connector, Yellow
G00166524Courtesy of GENERAL MOTORS CORP.
