Instrument Panel Wiring Diode Module

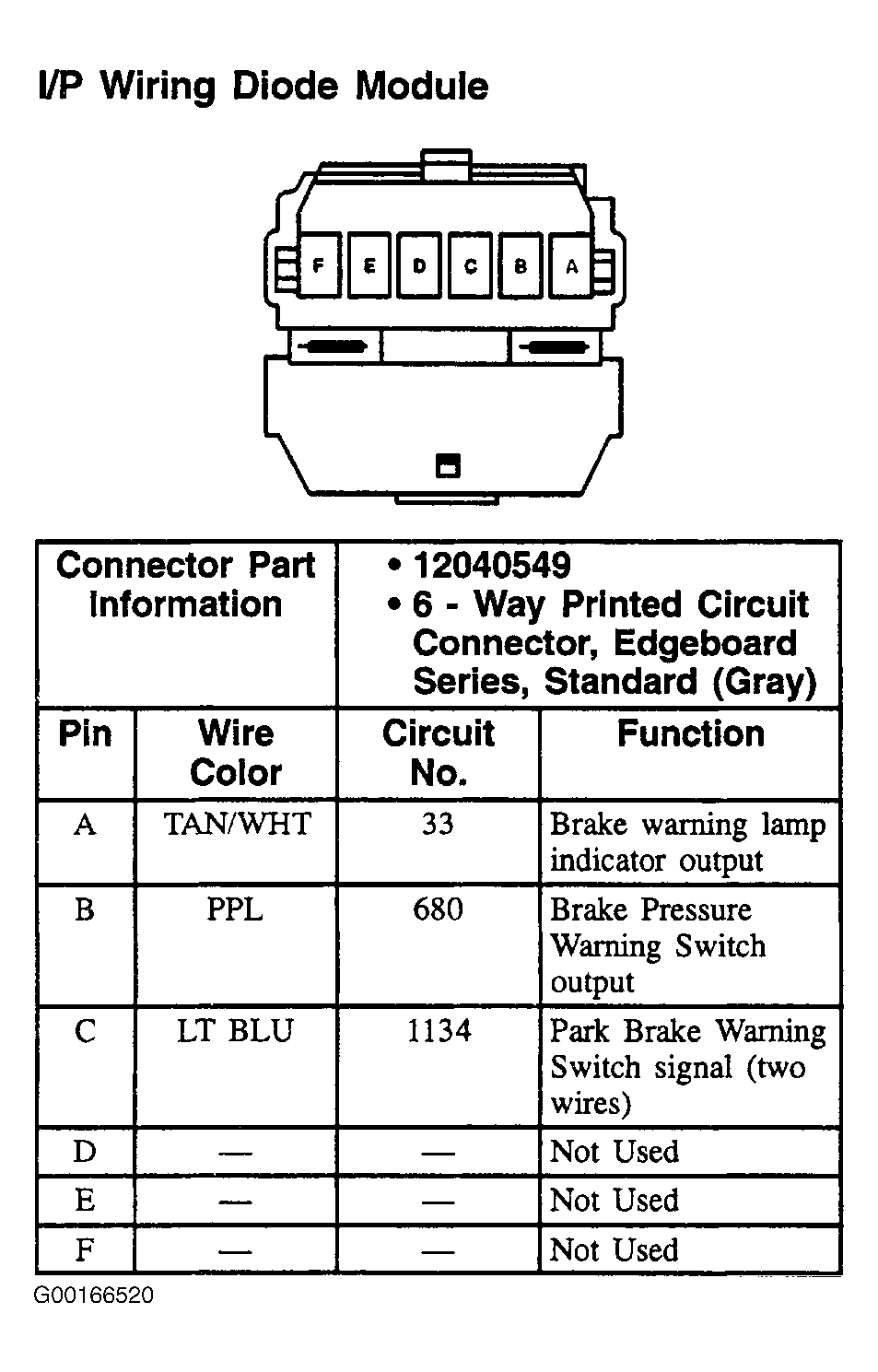

Fig 1: Instrument Panel Wiring Diode Module - 6-Pin Connector, Gray
G00166520Courtesy of GENERAL MOTORS CORP.
