Liftgate Lock Switch

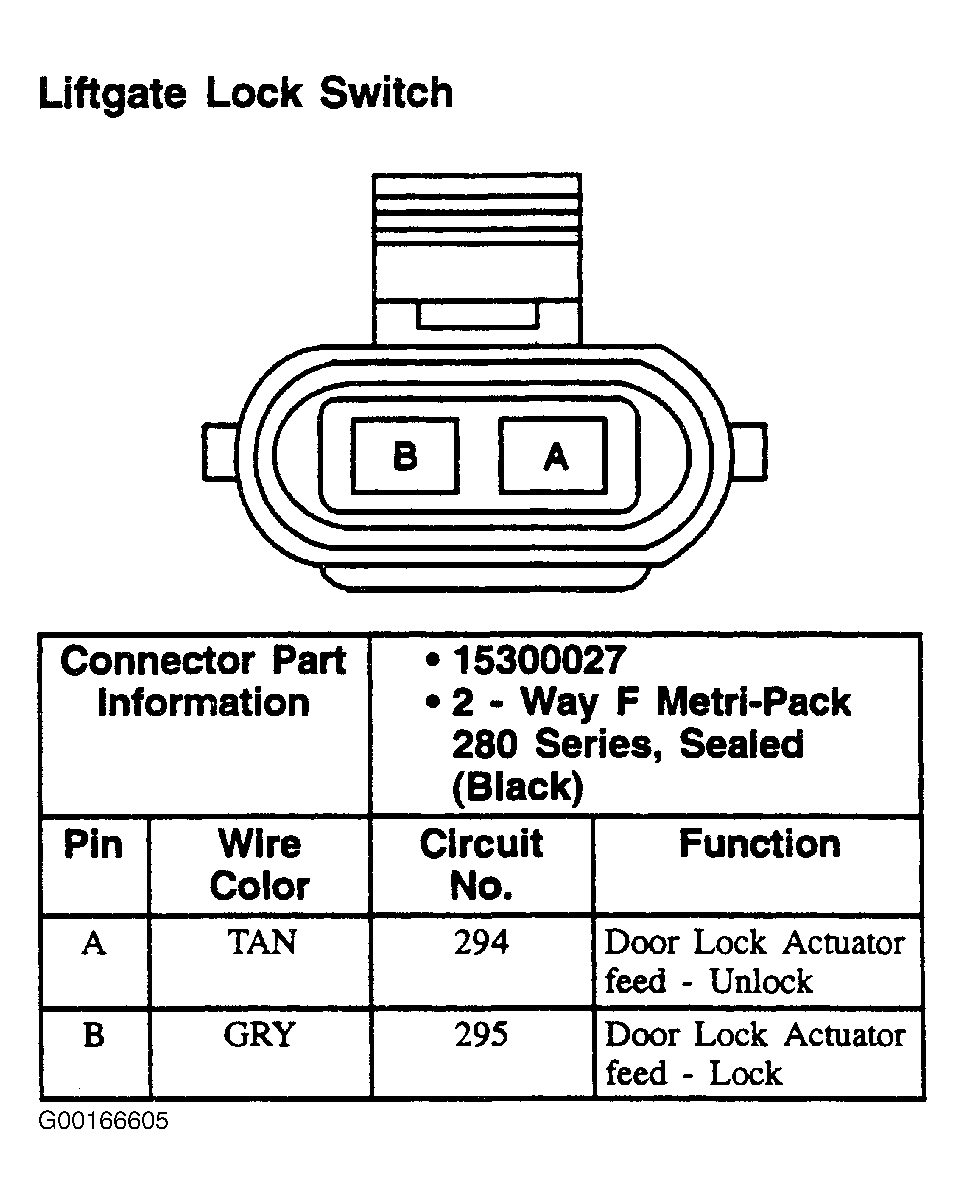

Fig 1: Liftgate Lock Switch - 2-Pin Connector, Black
G00166605Courtesy of GENERAL MOTORS CORP.

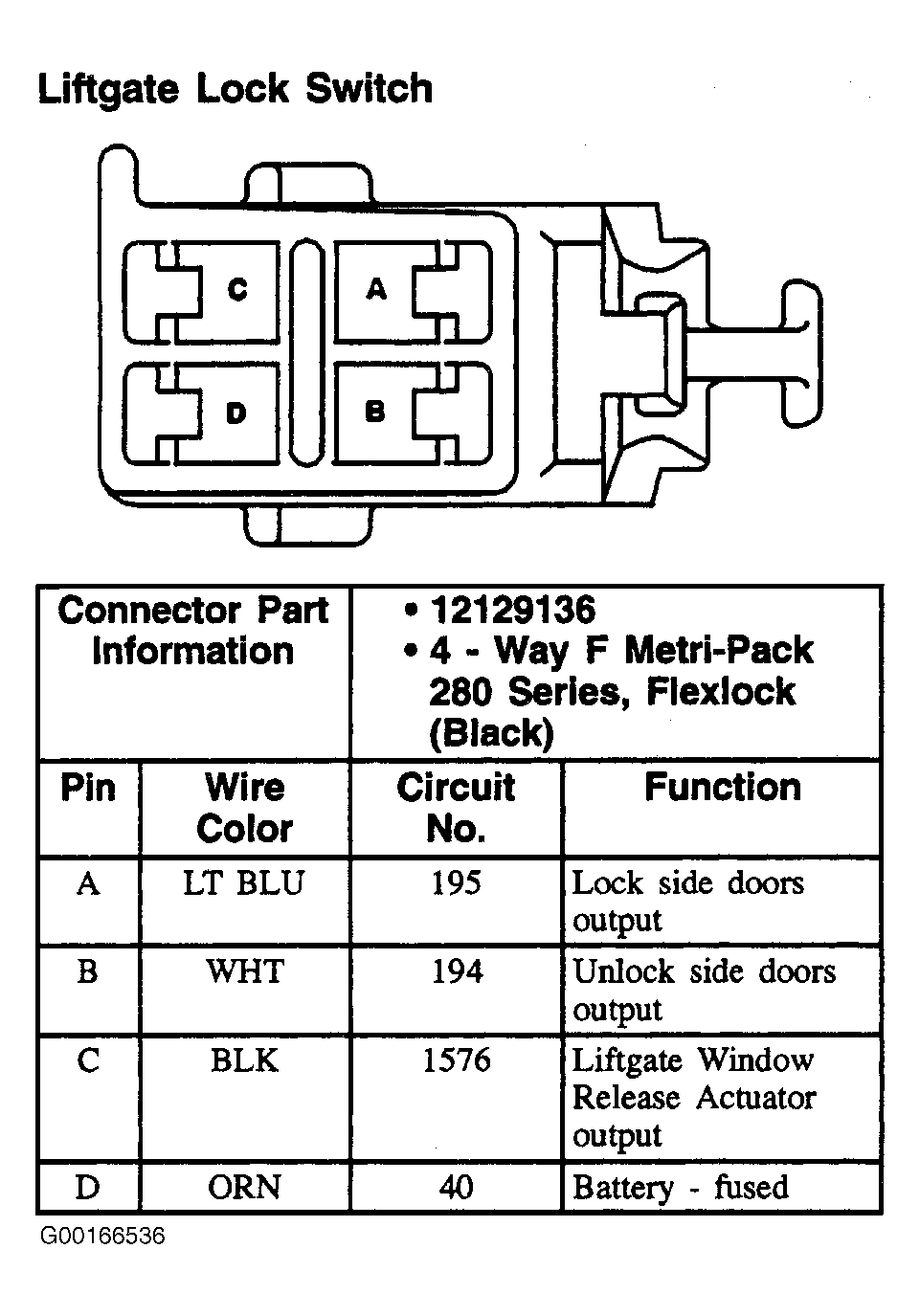

Fig 2: Liftgate Lock Switch - 4-Pin Connector, Black
G00166536Courtesy of GENERAL MOTORS CORP.
