Map/Dome Lamp Relay

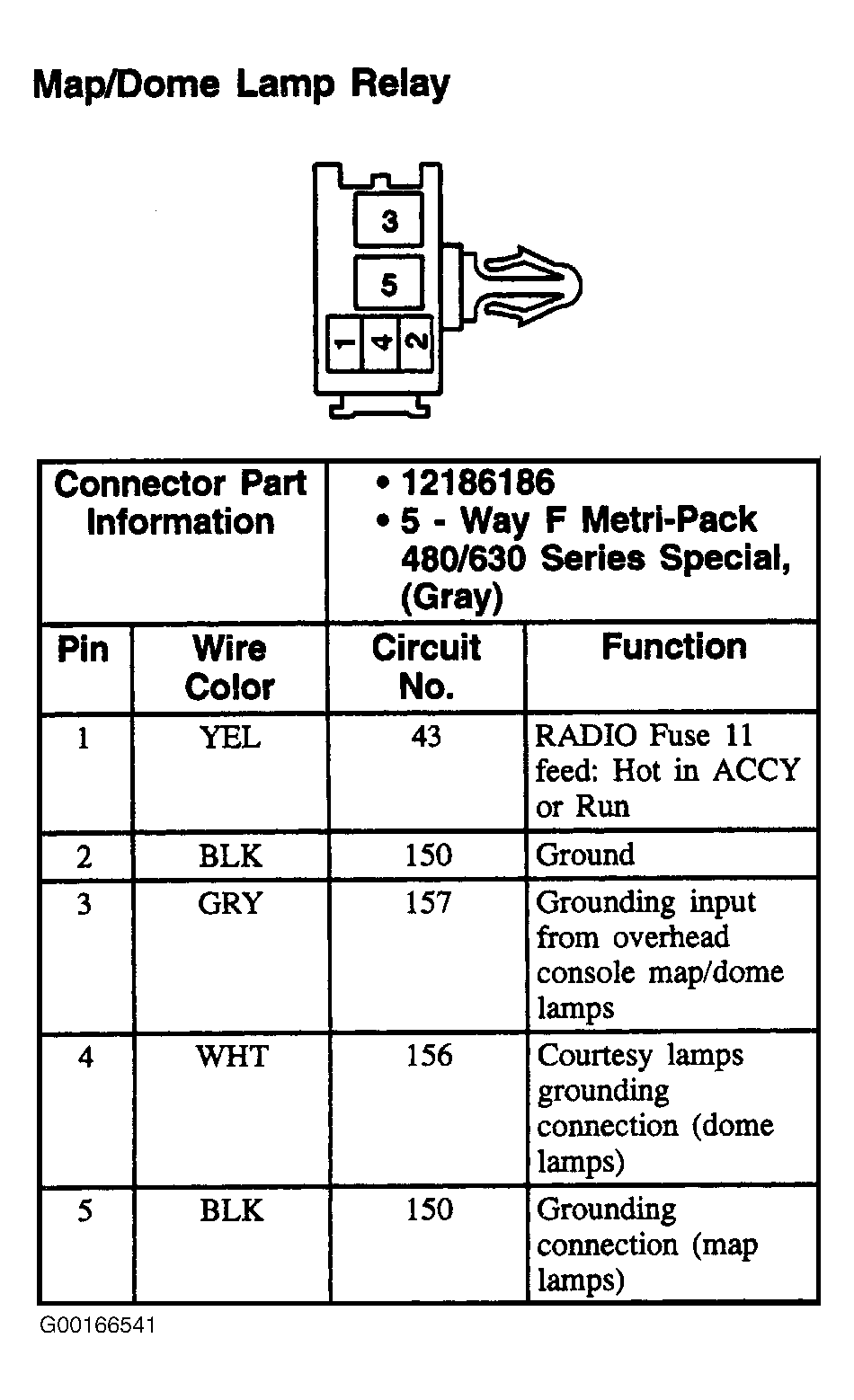

Fig 1: Map/Dome Lamp Relay - 5-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
