Powertrain Control Module C2 (2.2L W/ M/T, W/ A/C)

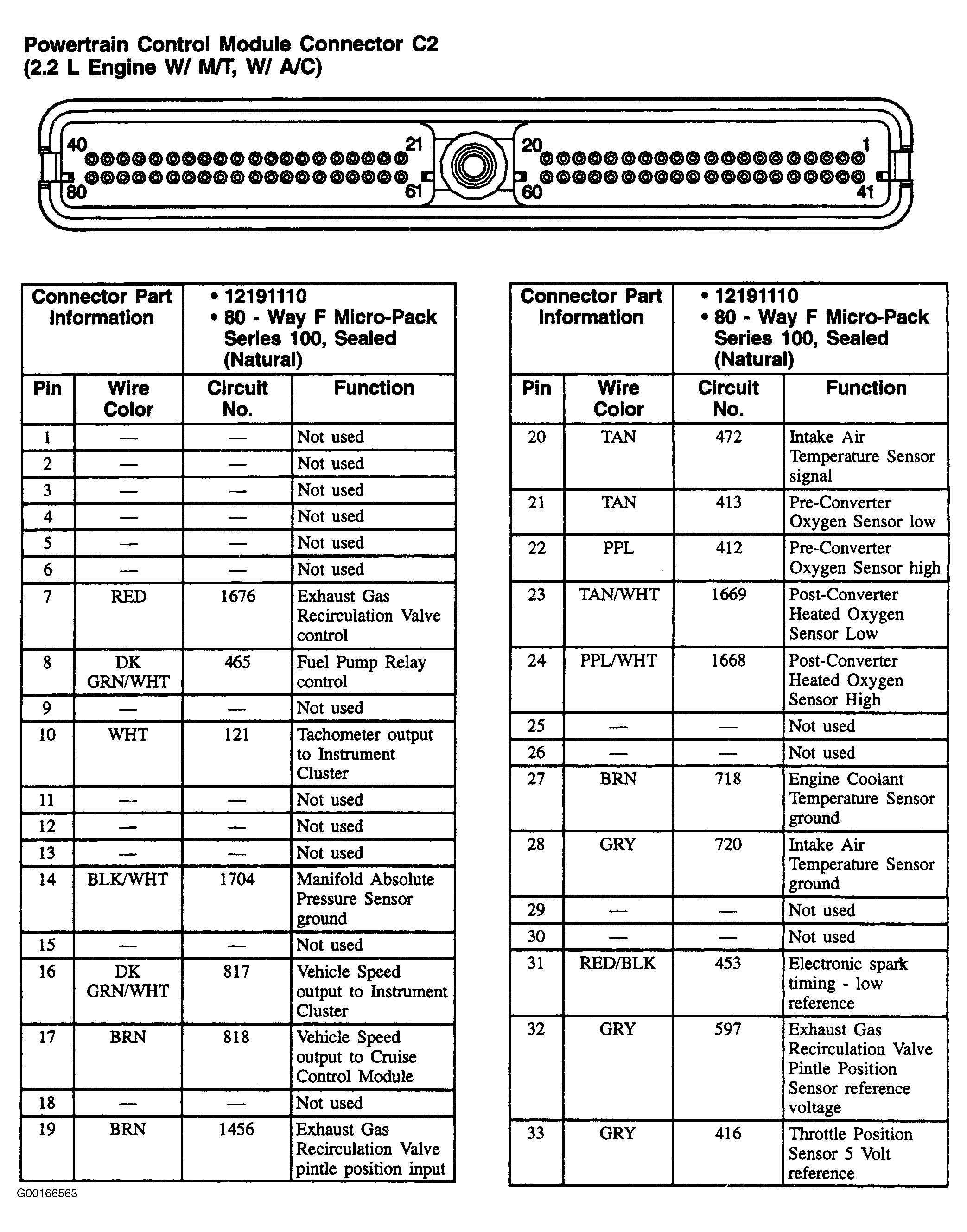

Fig 1: Powertrain Control Module C2 (2.2L W/ M/T, W/ A/C) - 80-Pin Connector, Natural (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

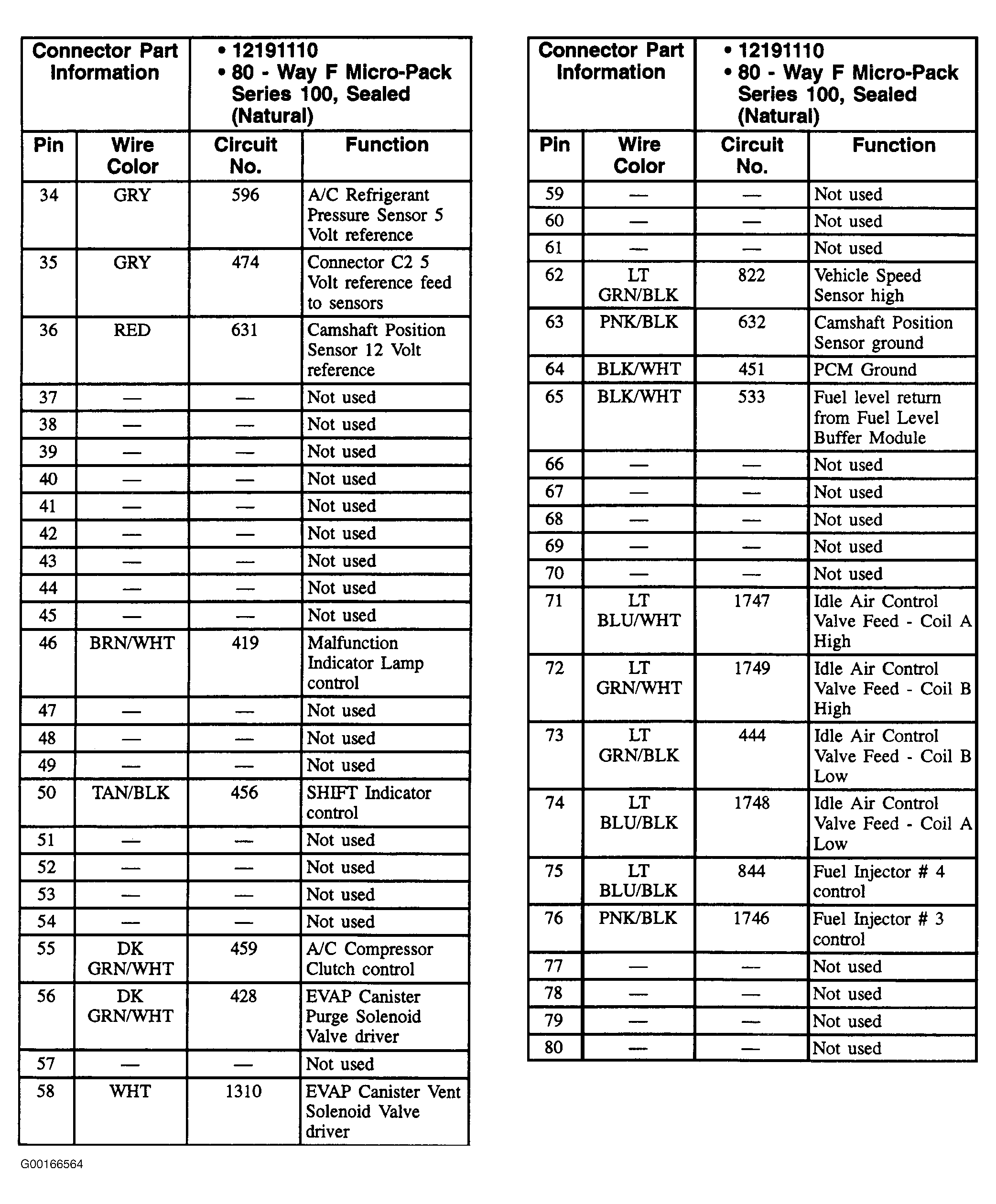

Fig 2: Powertrain Control Module C2 (2.2L W/ M/T, W/ A/C) - 80-Pin Connector, Natural (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
