Rear Window Defogger Grid

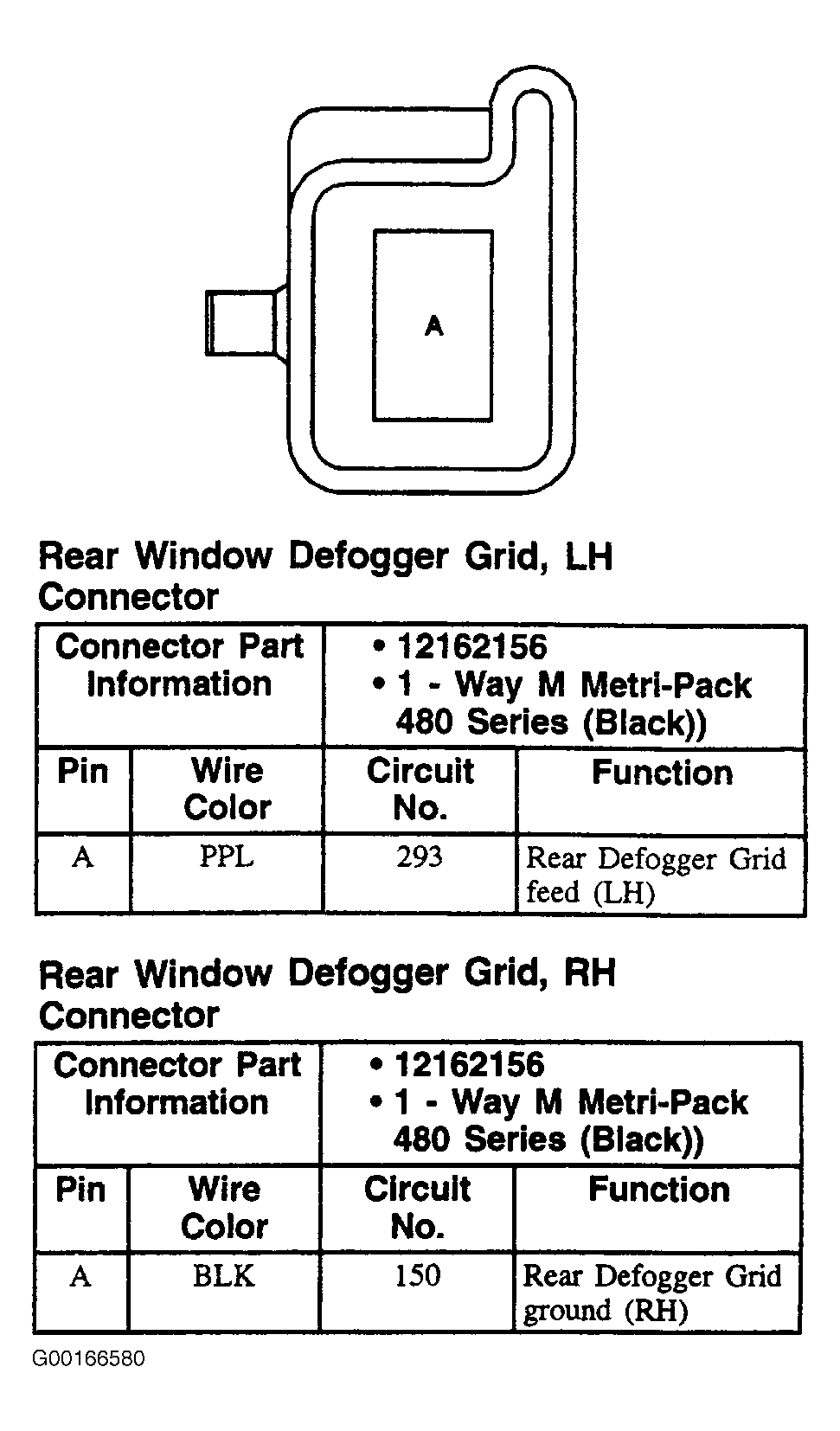

Fig 1: Rear Window Defogger Grid - 1-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
