Rear Window Defogger Switch

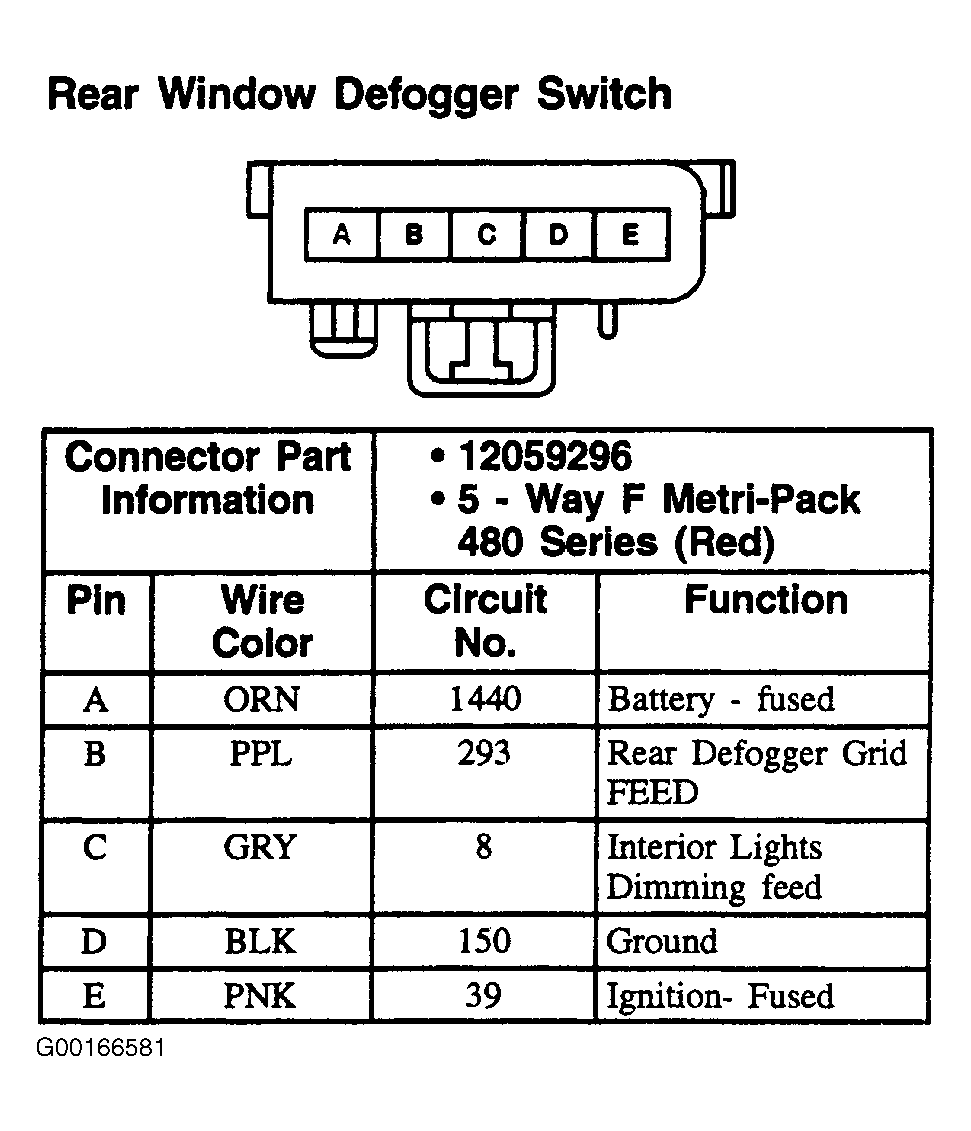

Fig 1: Rear Window Defogger Switch - 5-Pin Connector, Red
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
