Side Window Lockout Switch

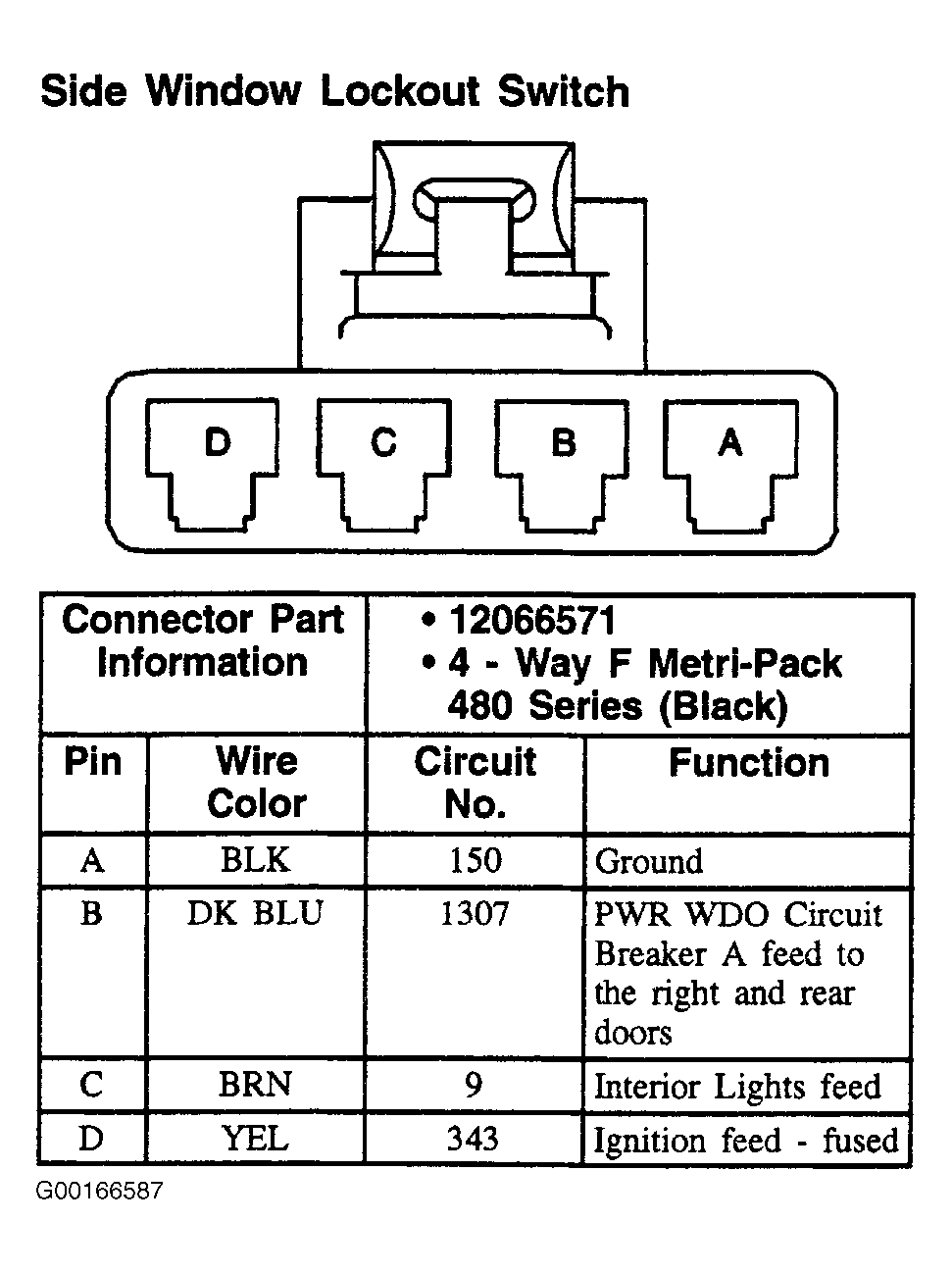

Fig 1: Side Window Lockout Switch - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
