Sunroof Express Module C1

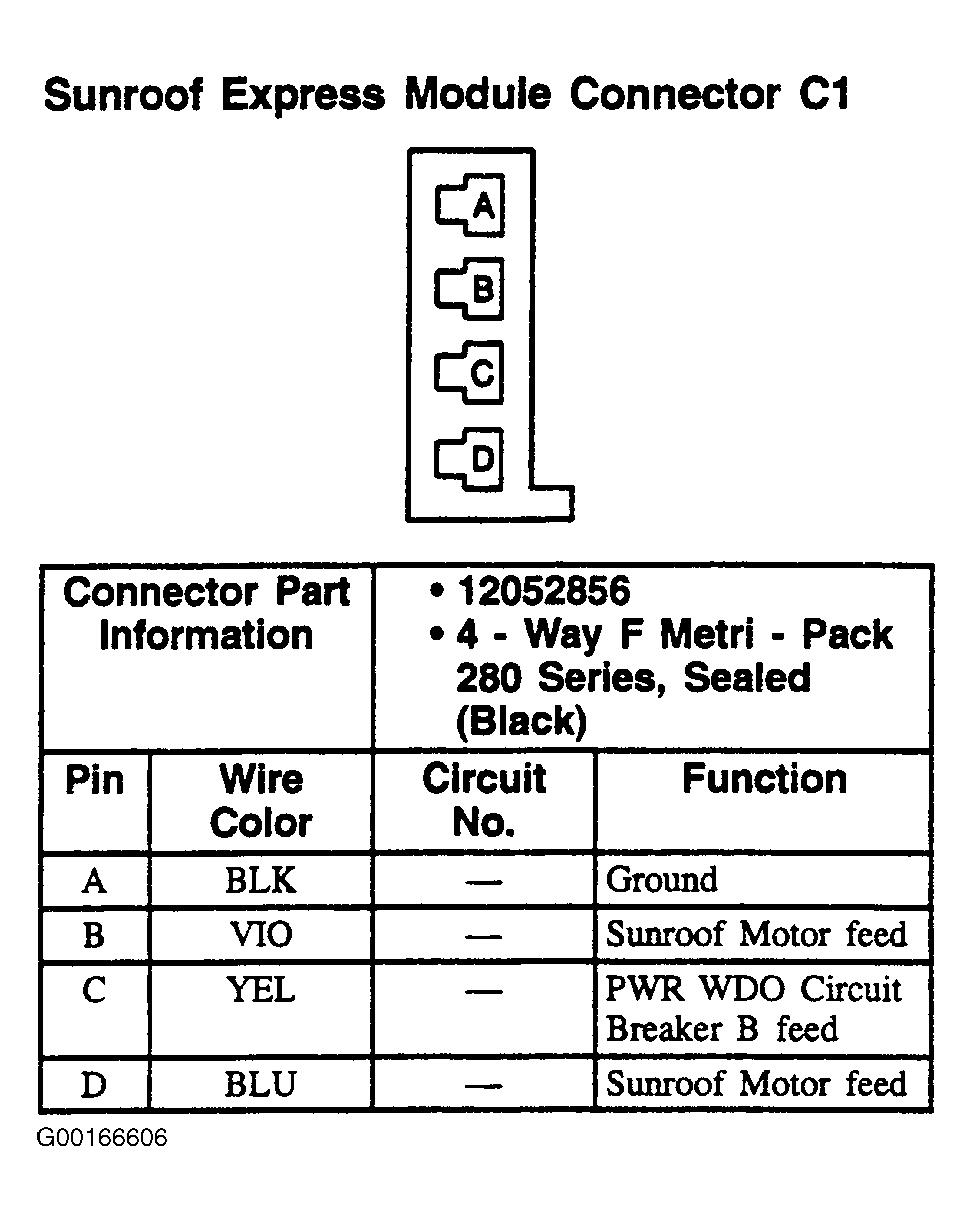

Fig 1: Sunroof Express Module C1 - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
