Transfer Case Select Switch

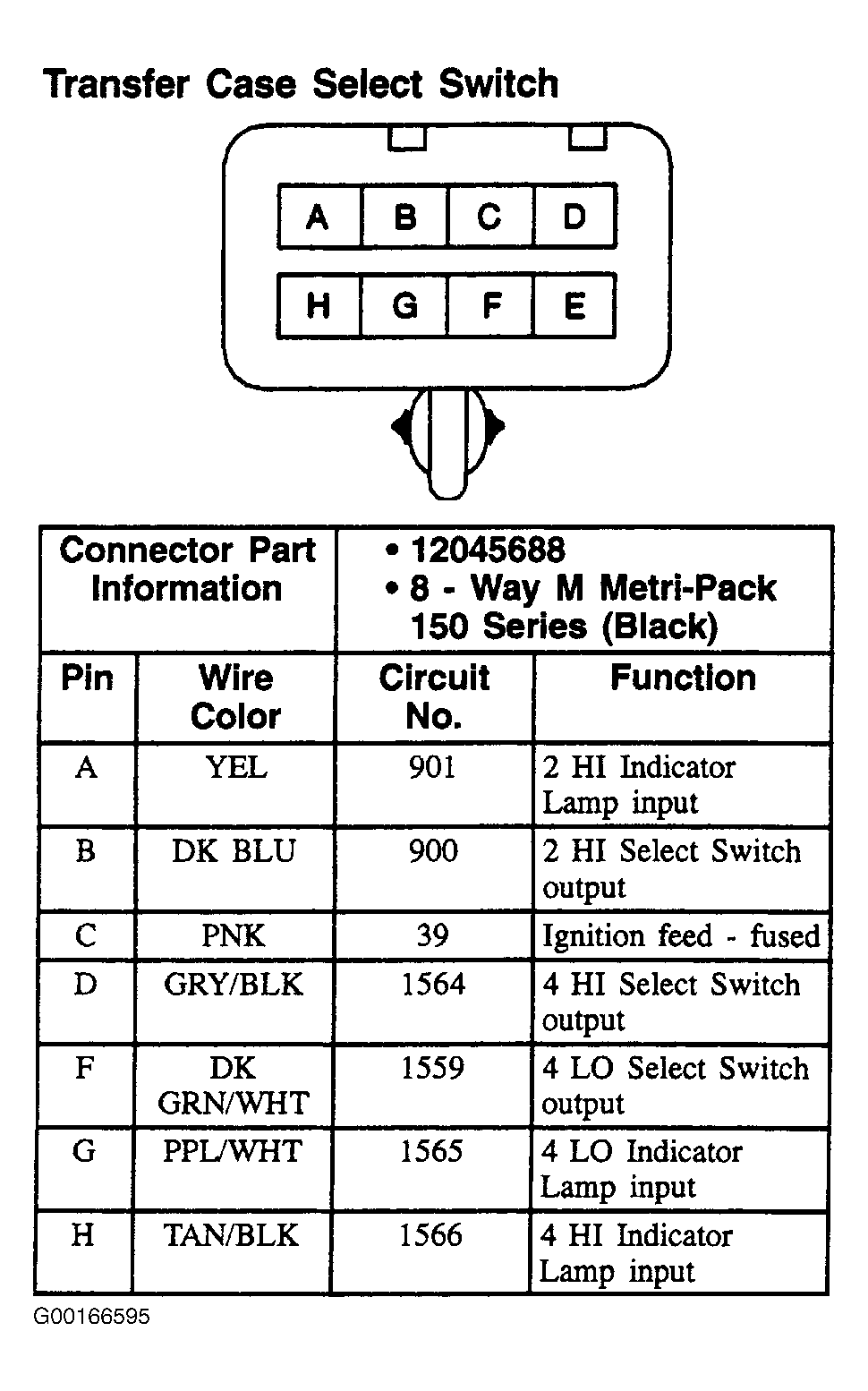

Fig 1: Transfer Case Select Switch - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
