Backup Lamp (Utility)

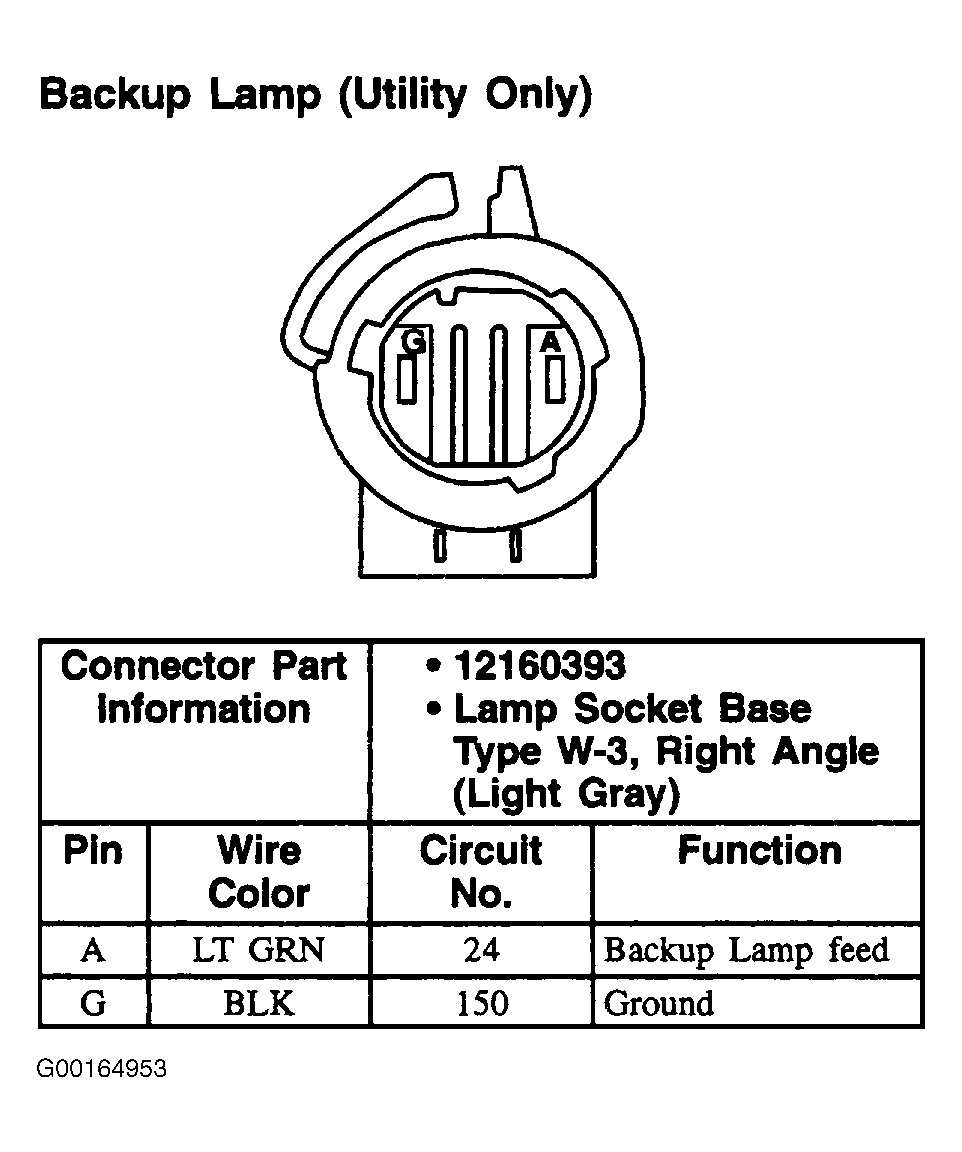

Fig 1: Backup Lamp (Utility) - 2-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
