Blower Motor Relay

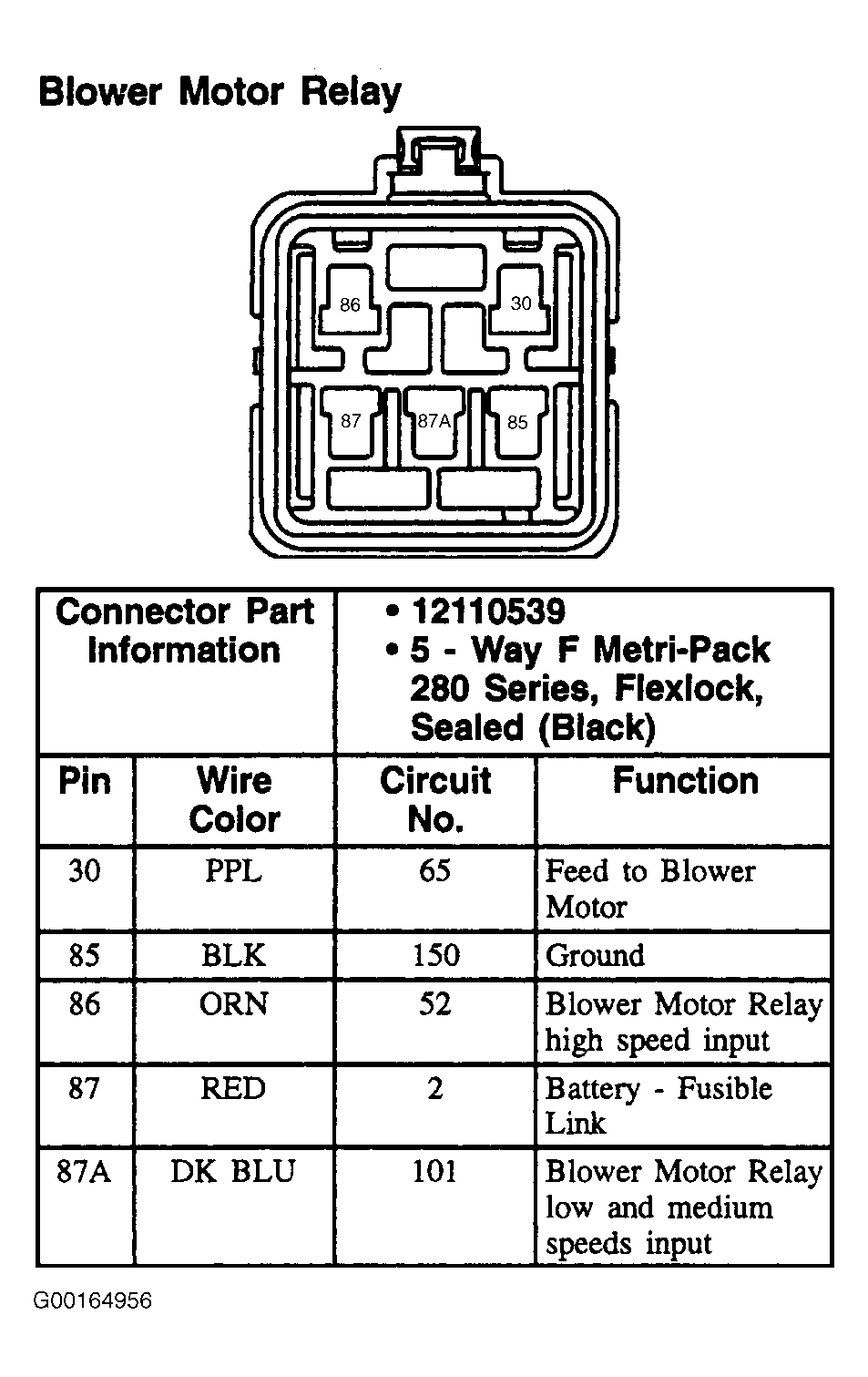

Fig 1: Blower Motor Relay - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
