Blower Motor Resistor

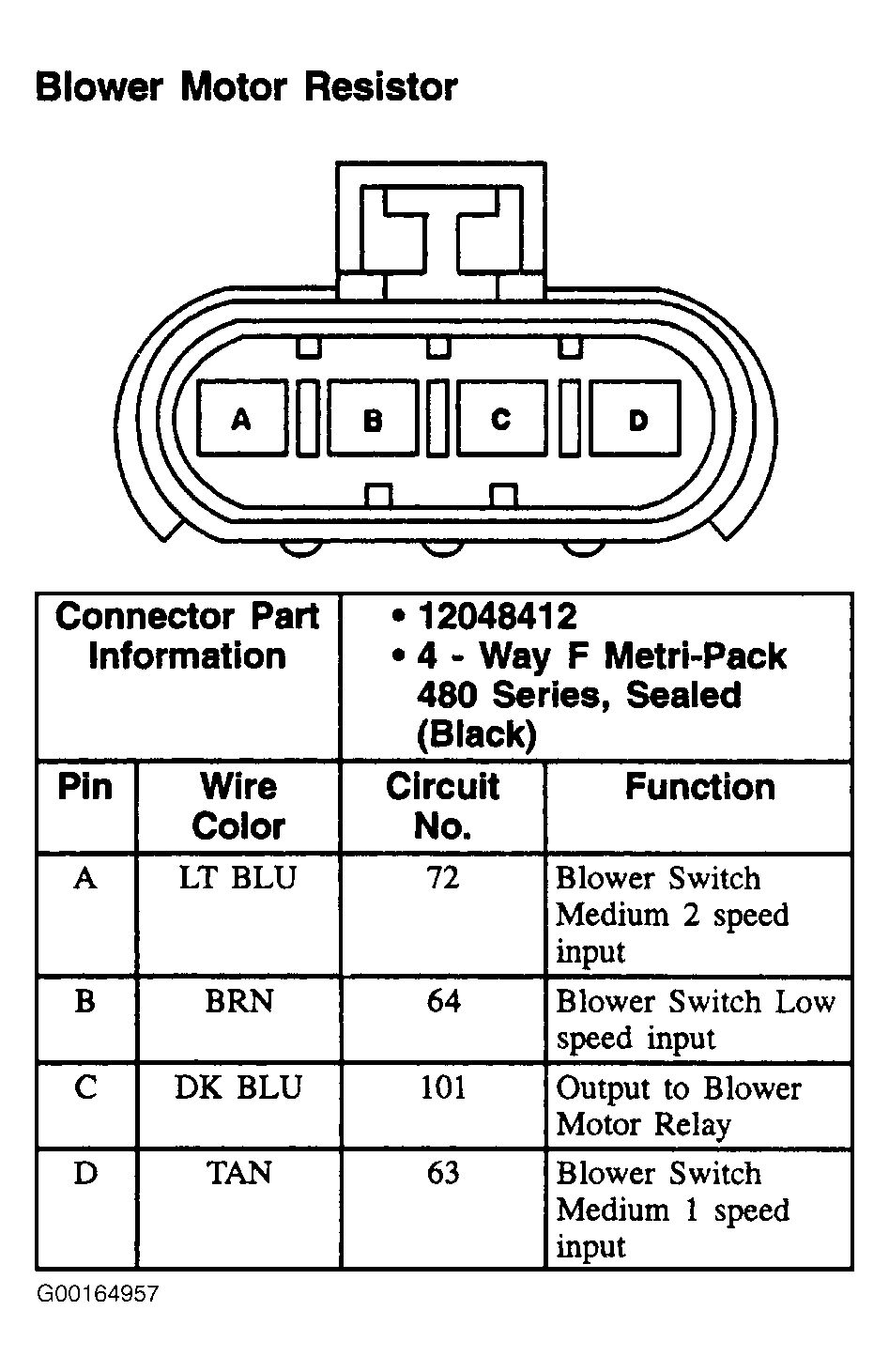

Fig 1: Blower Motor Resistor - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
