Brake Pressure Modulator Valve C1

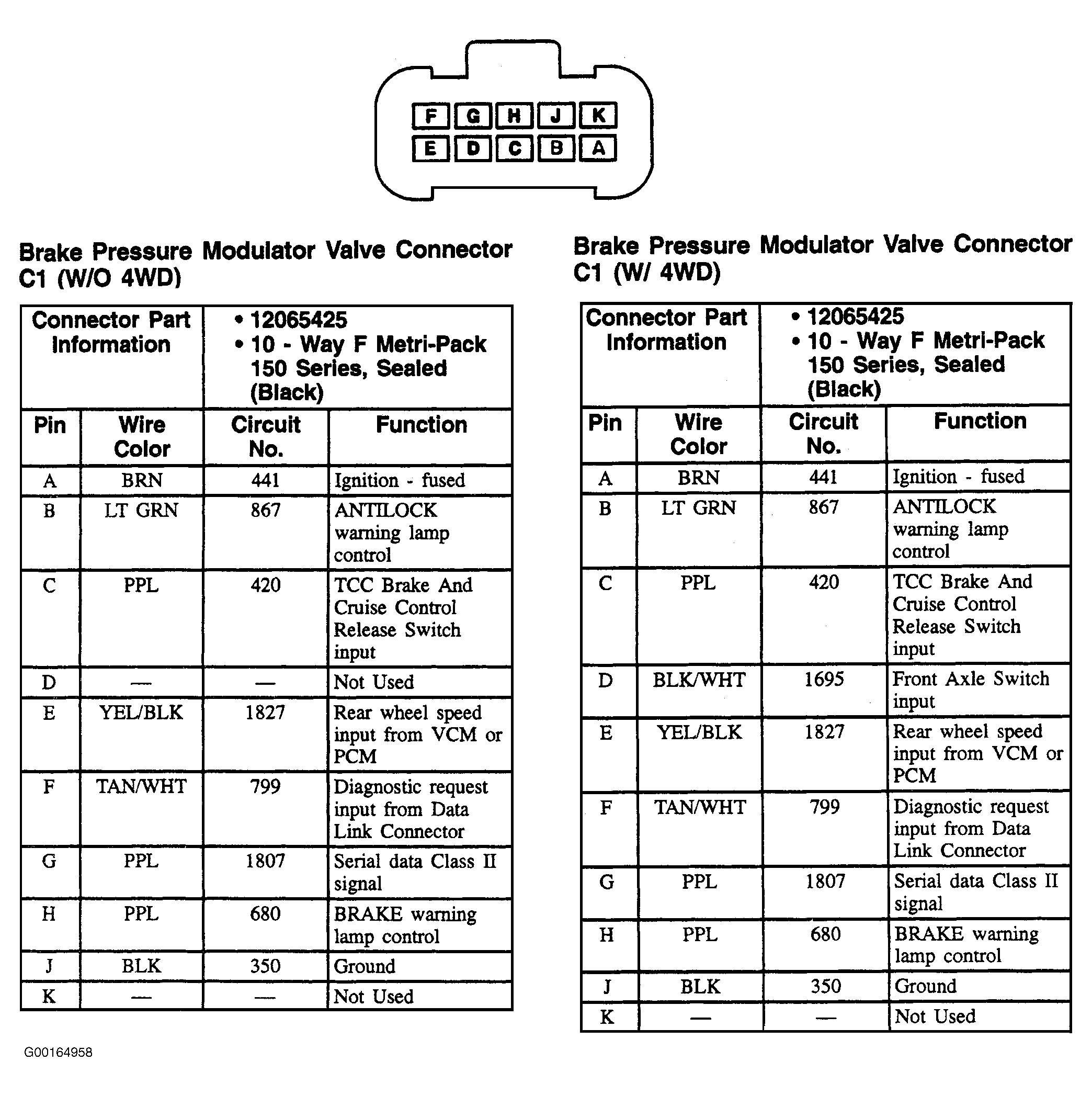

Fig 1: Brake Pressure Modulator Valve C1 - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
