Brake Pressure Modulator Valve C3

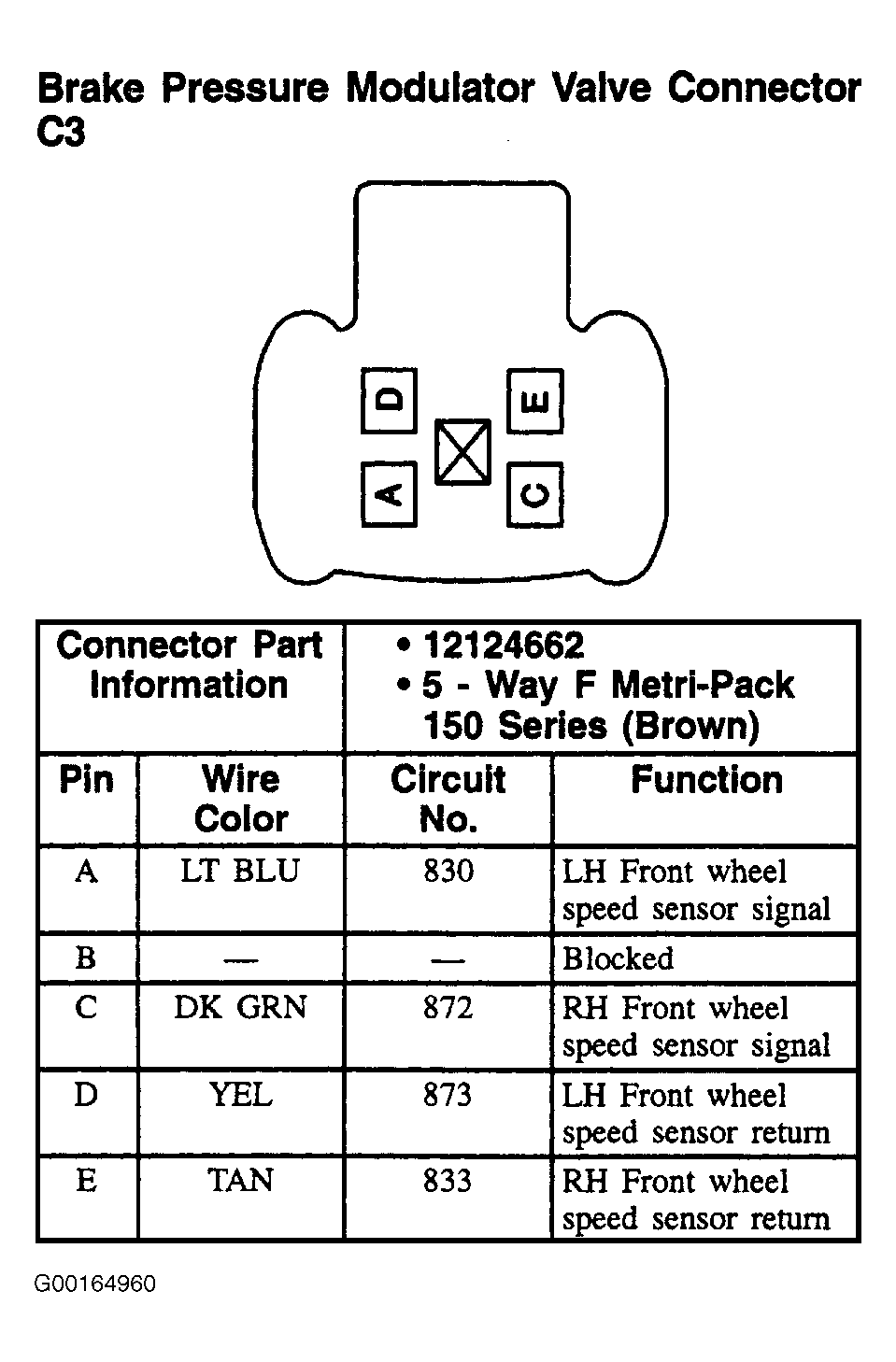

Fig 1: Brake Pressure Modulator Valve C3 - 5-Pin Connector, Brown
Courtesy of GENERAL MOTORS CORP.
