C102 (2.2L)

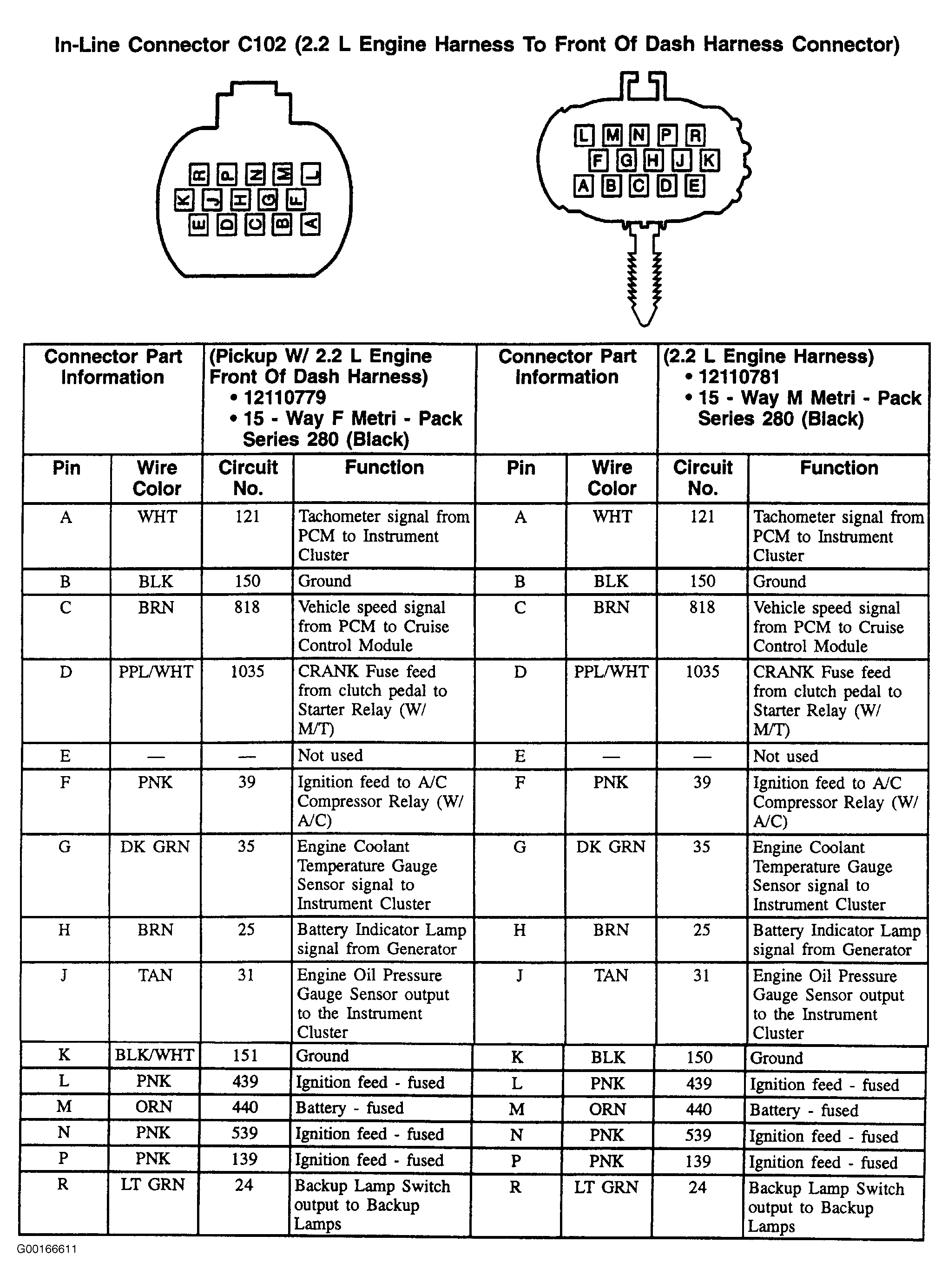

Fig 1: C102 (2.2L) - 15-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
