C100 To C603: C109

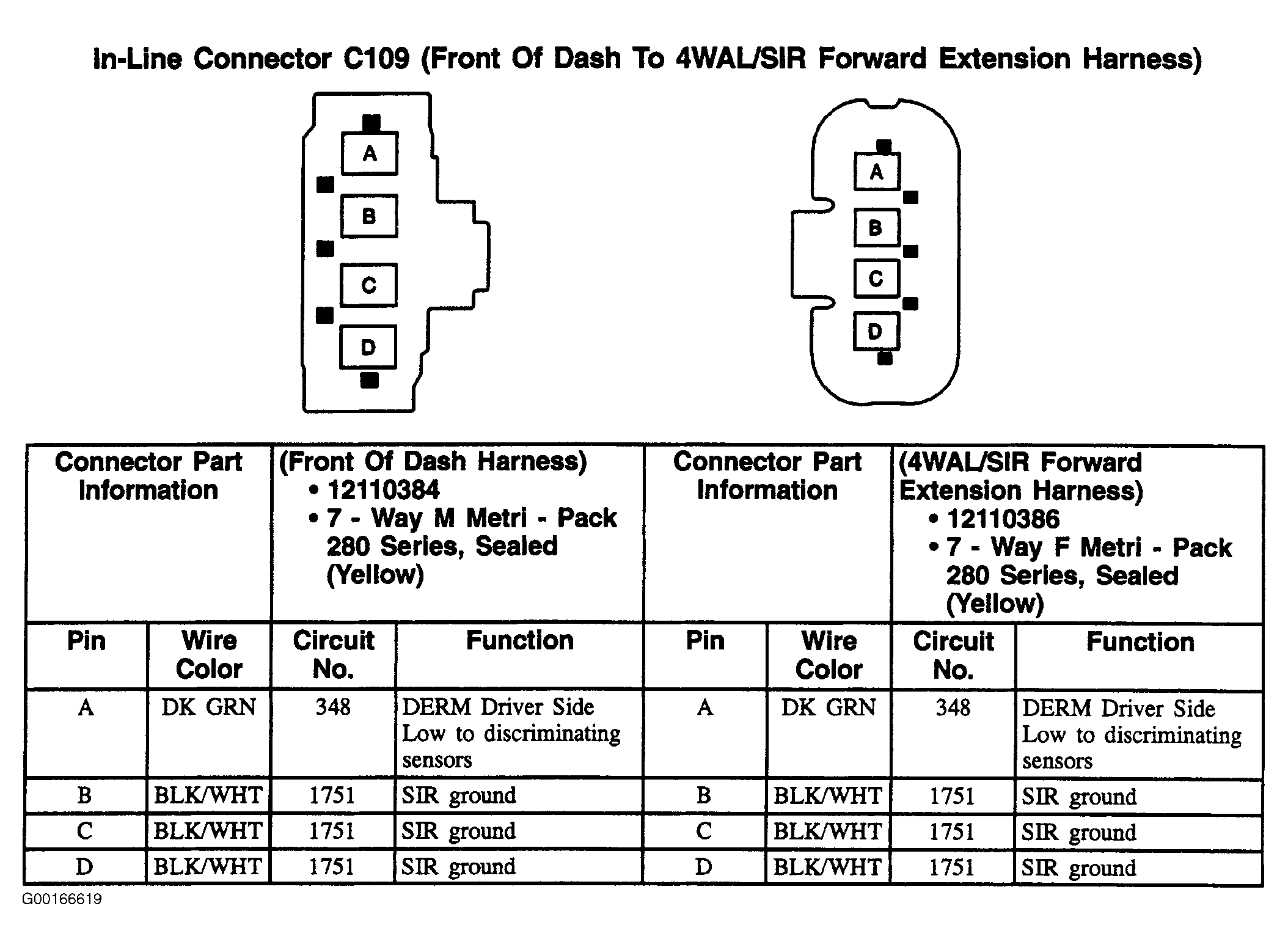

Fig 1: C109 - 4-Pin Connector, Yellow

G00166619

Courtesy of GENERAL MOTORS CORP.
