C100 To C603: C202

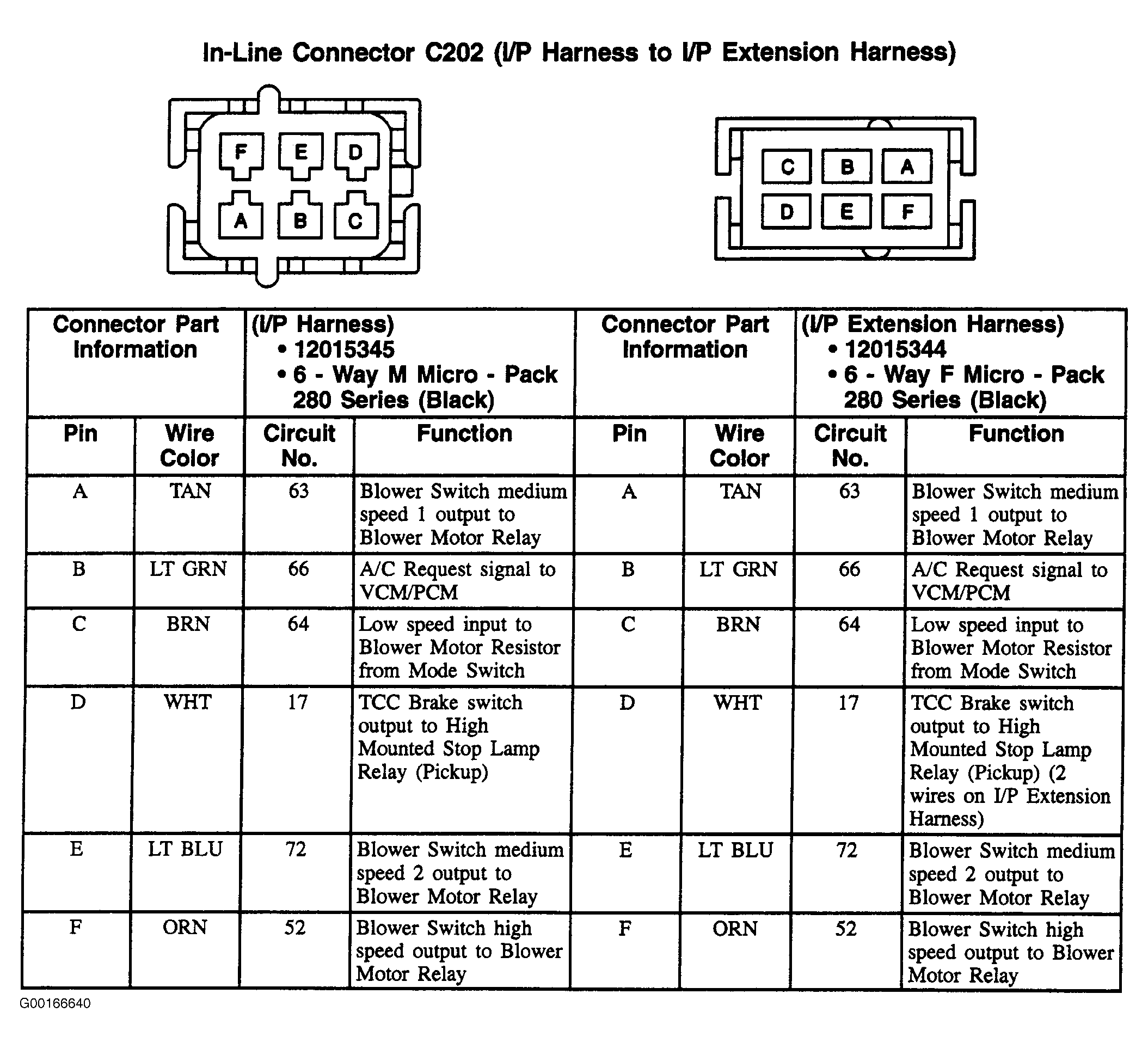

Fig 1: C202 - 6-Pin Connector, Black

G00166640

Courtesy of GENERAL MOTORS CORP.
