C203 (Utility)

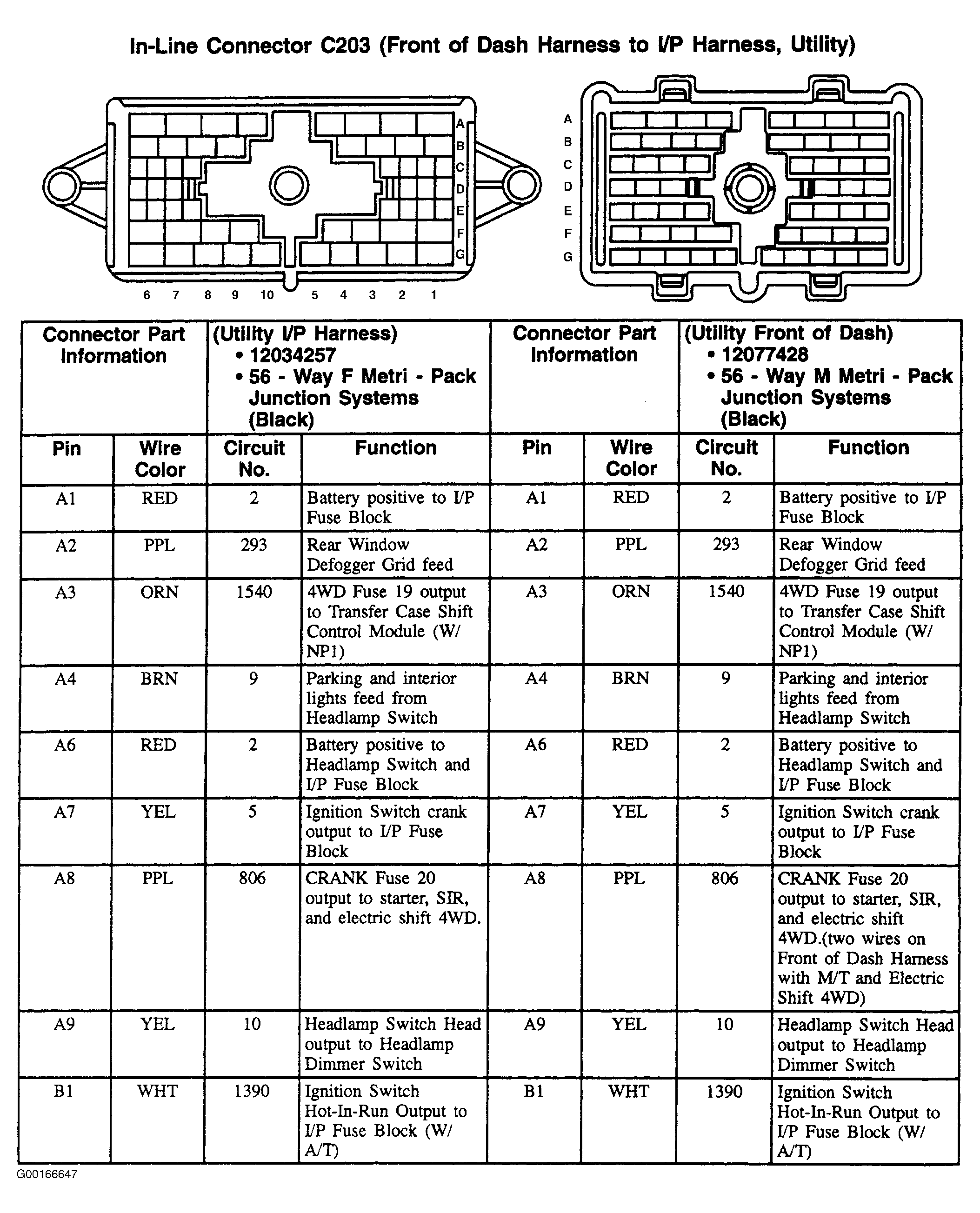

Fig 1: C203 (Utility) - 56-Pin Connector, Black (1 Of 4)
G00166647Courtesy of GENERAL MOTORS CORP.

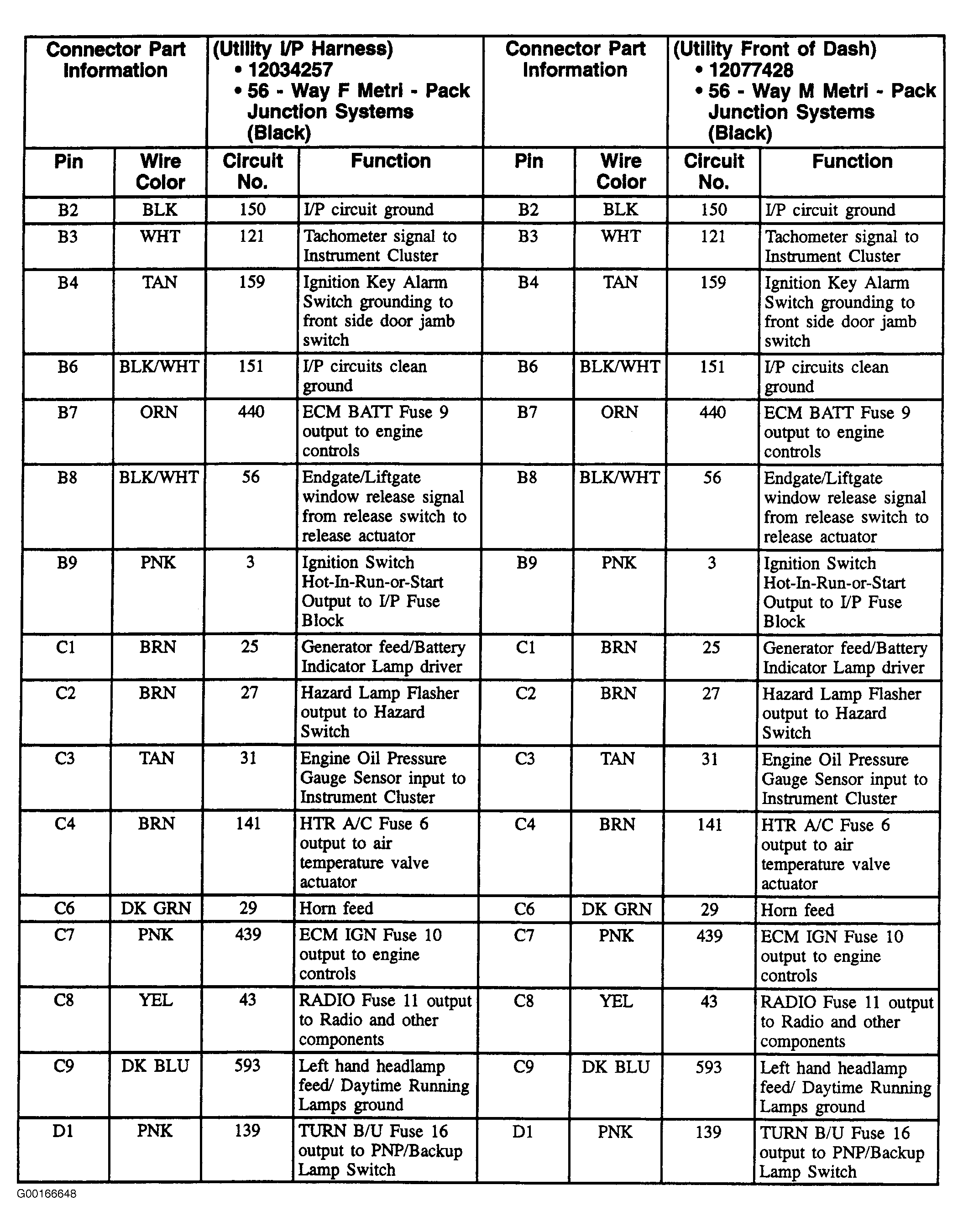

Fig 2: C203 (Utility) - 56-Pin Connector, Black (2 Of 4)
G00166648Courtesy of GENERAL MOTORS CORP.

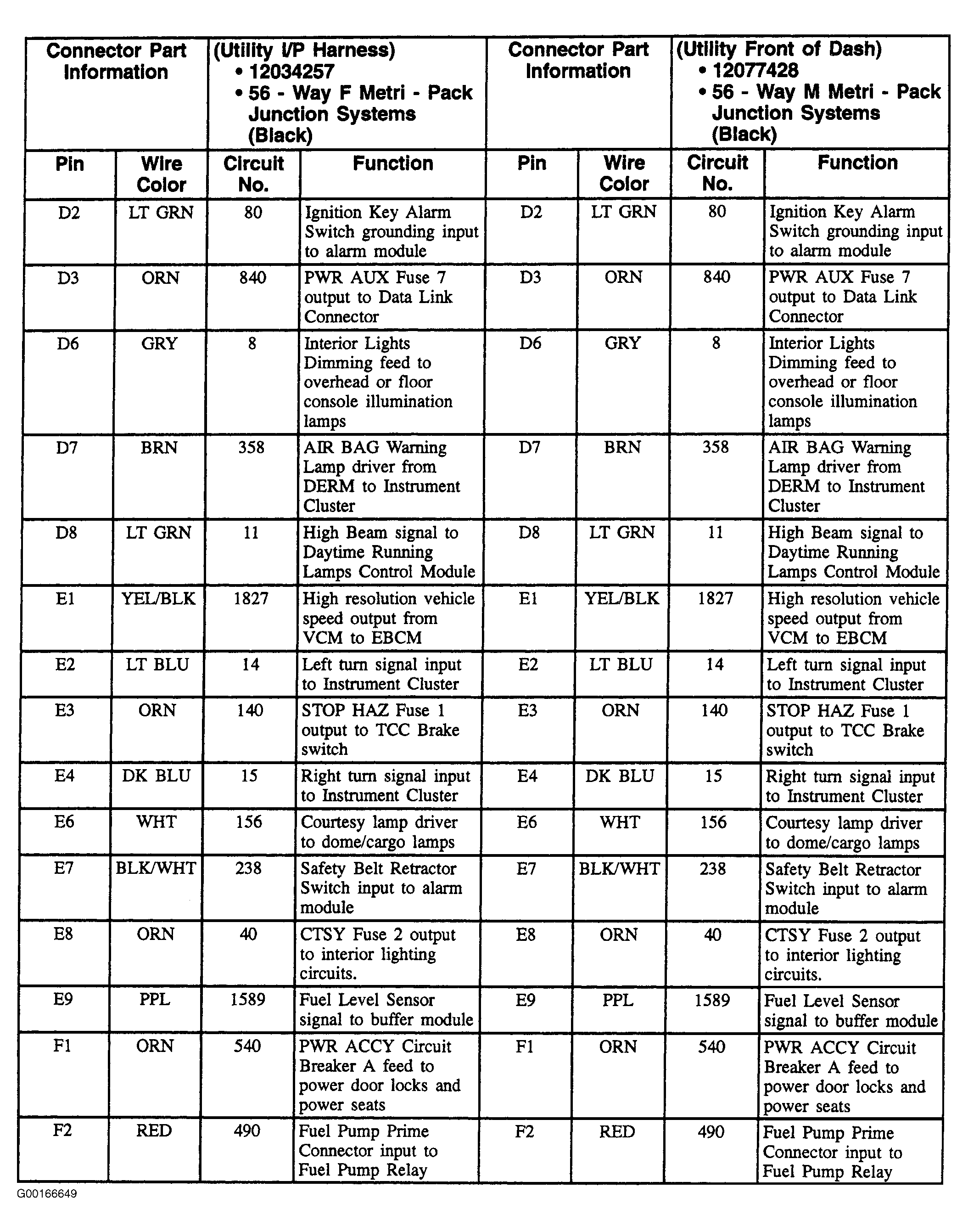

Fig 3: C203 (Utility) - 56-Pin Connector, Black (3 Of 4)
G00166649Courtesy of GENERAL MOTORS CORP.

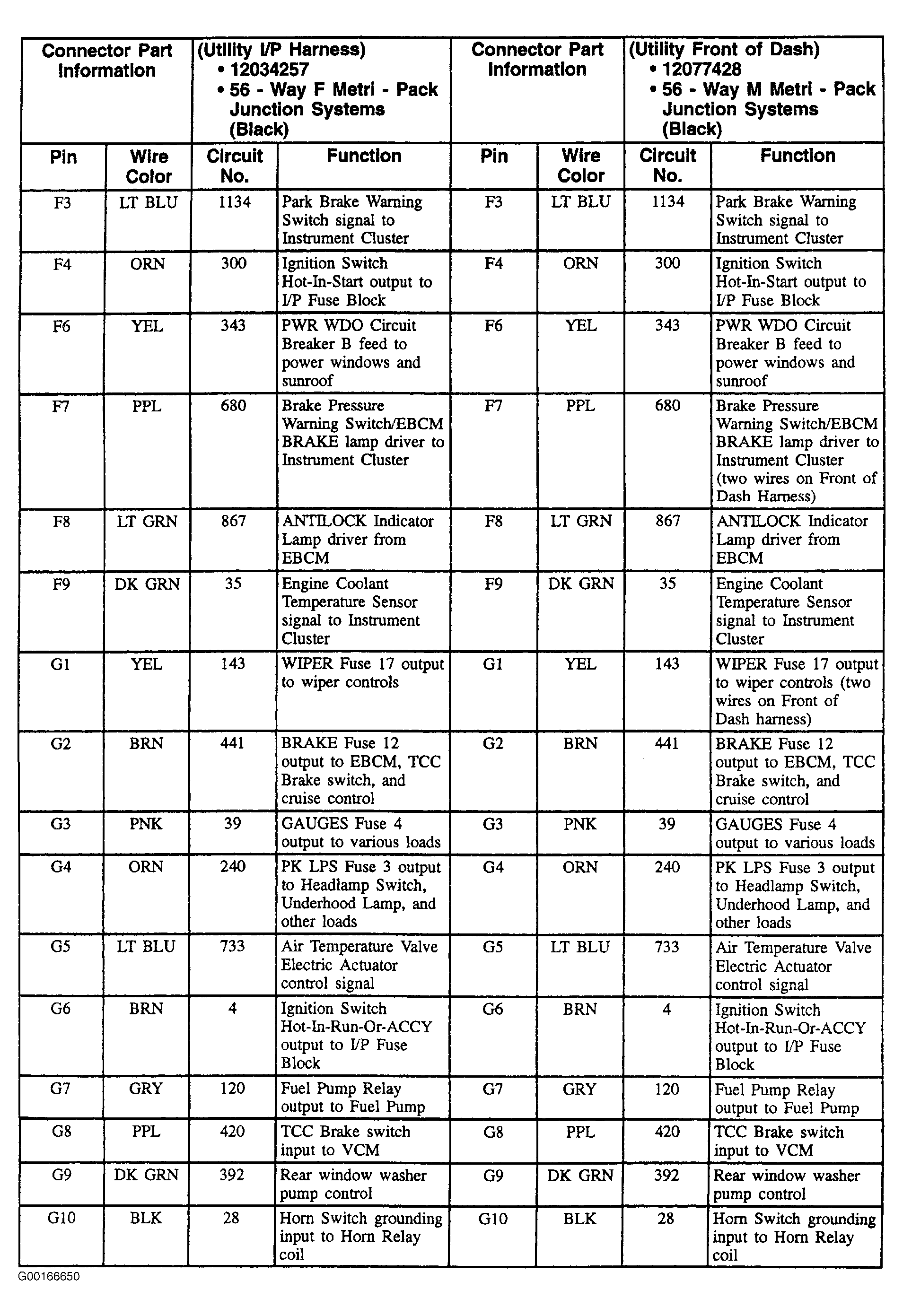

Fig 4: C203 (Utility) - 56-Pin Connector, Black (4 Of 4)
G00166650Courtesy of GENERAL MOTORS CORP.
