C100 To C603: C401

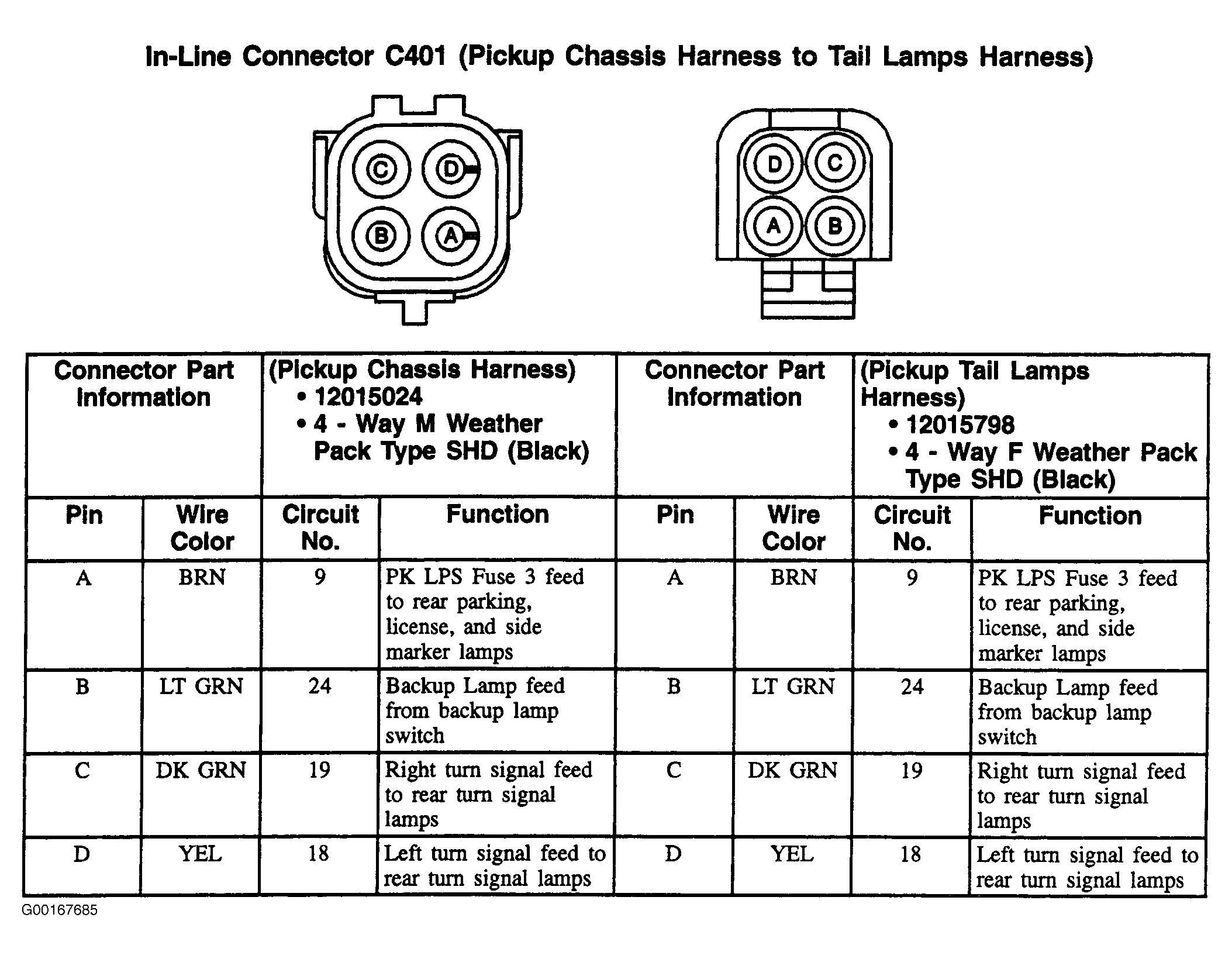

Fig 1: C401 - 4-Pin Connector, Black

G00167685

Courtesy of GENERAL MOTORS CORP.
