Dome Lamp (Utility)

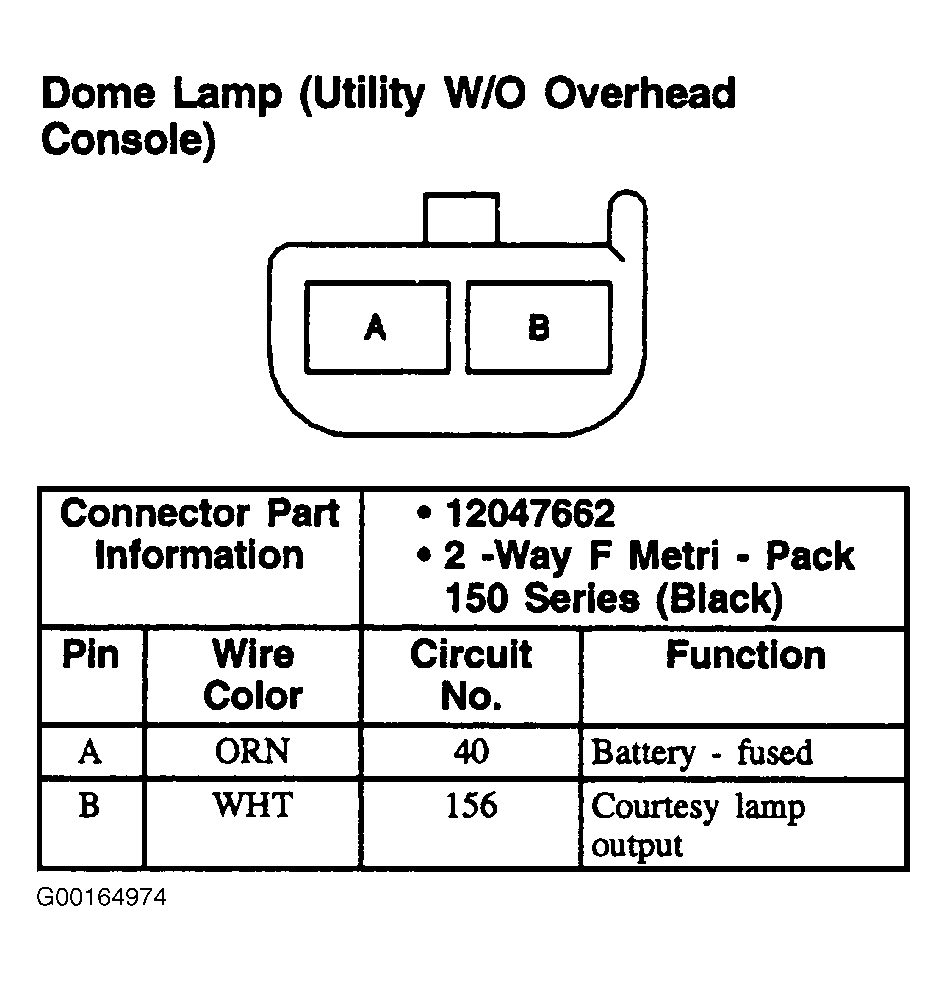

Fig 1: Dome Lamp (Utility) - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
