Ignition Coil (4.3L)

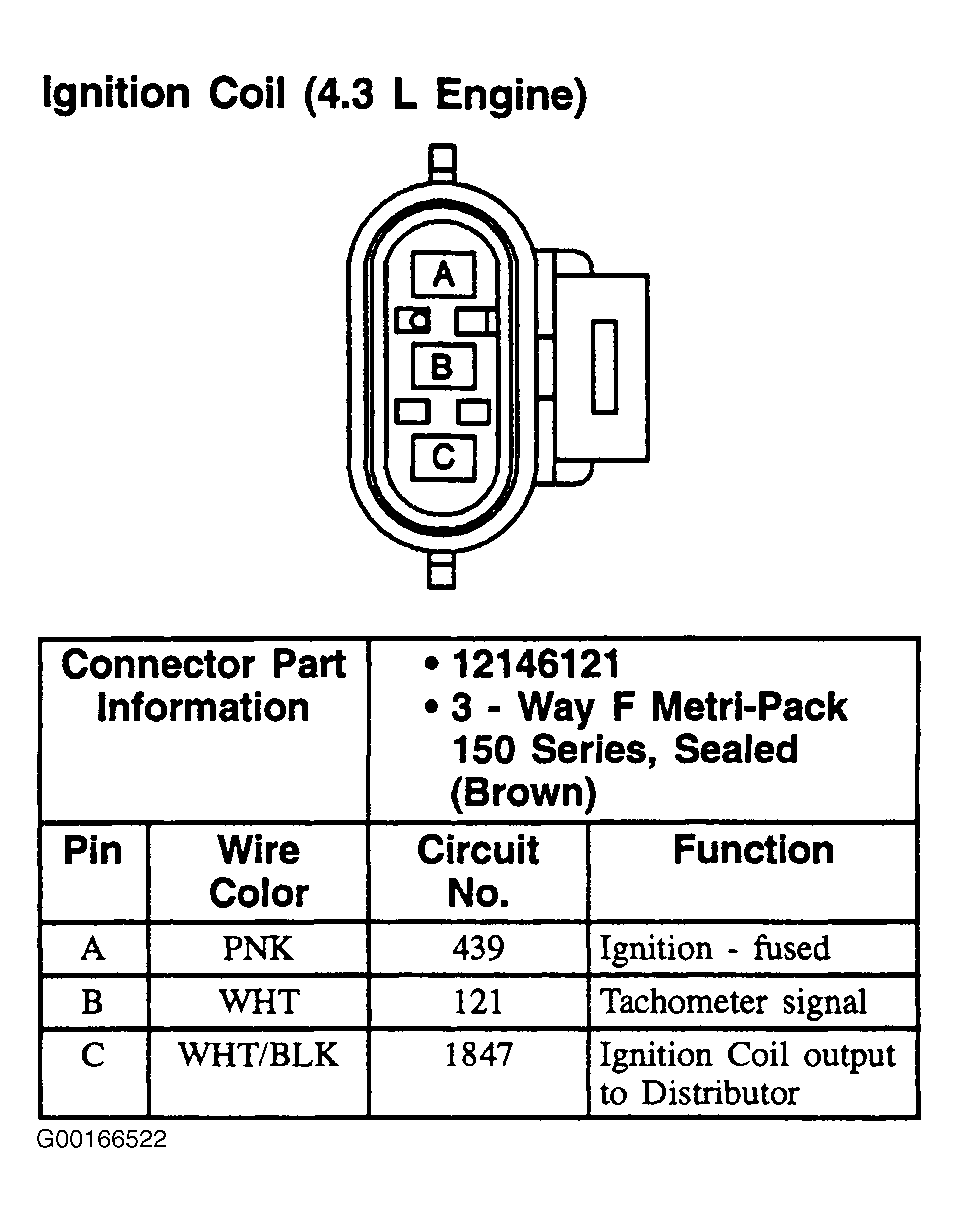

Fig 1: Ignition Coil (4.3L) - 3-Pin Connector, Brown
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
