Pressure Control Solenoid Valve

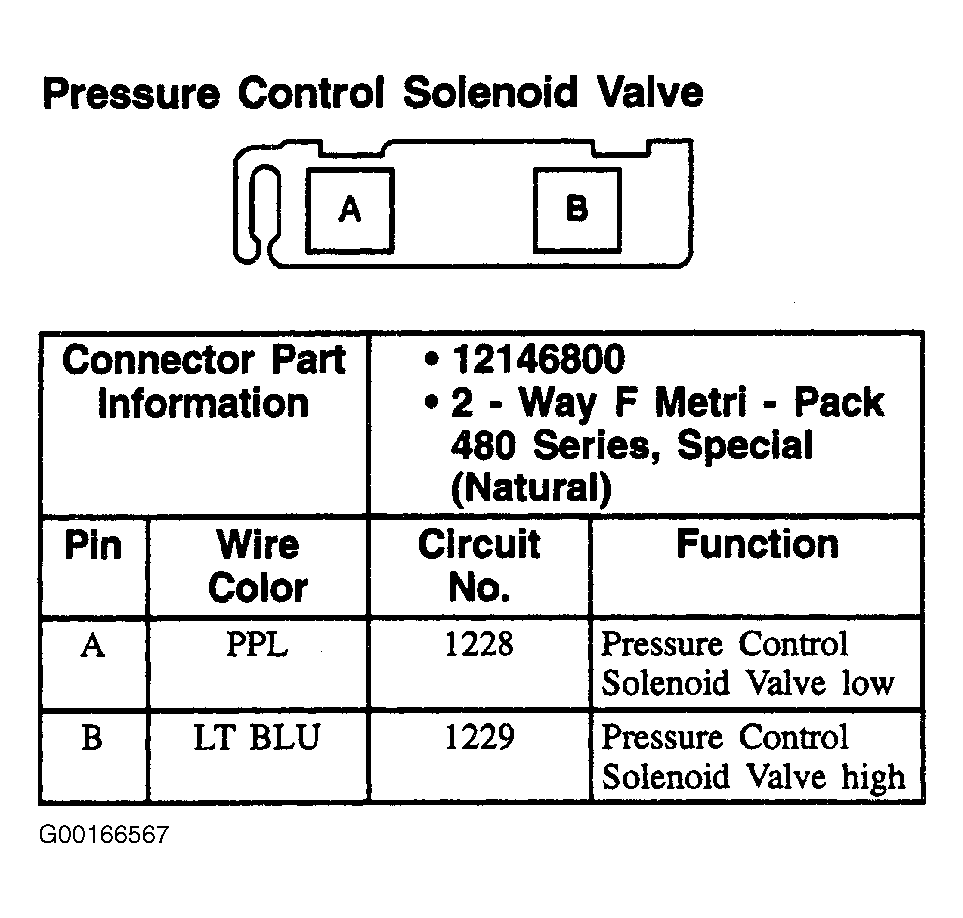

Fig 1: Pressure Control Solenoid Valve - 2-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
