Rear Side Marker Lamp (Pickup)

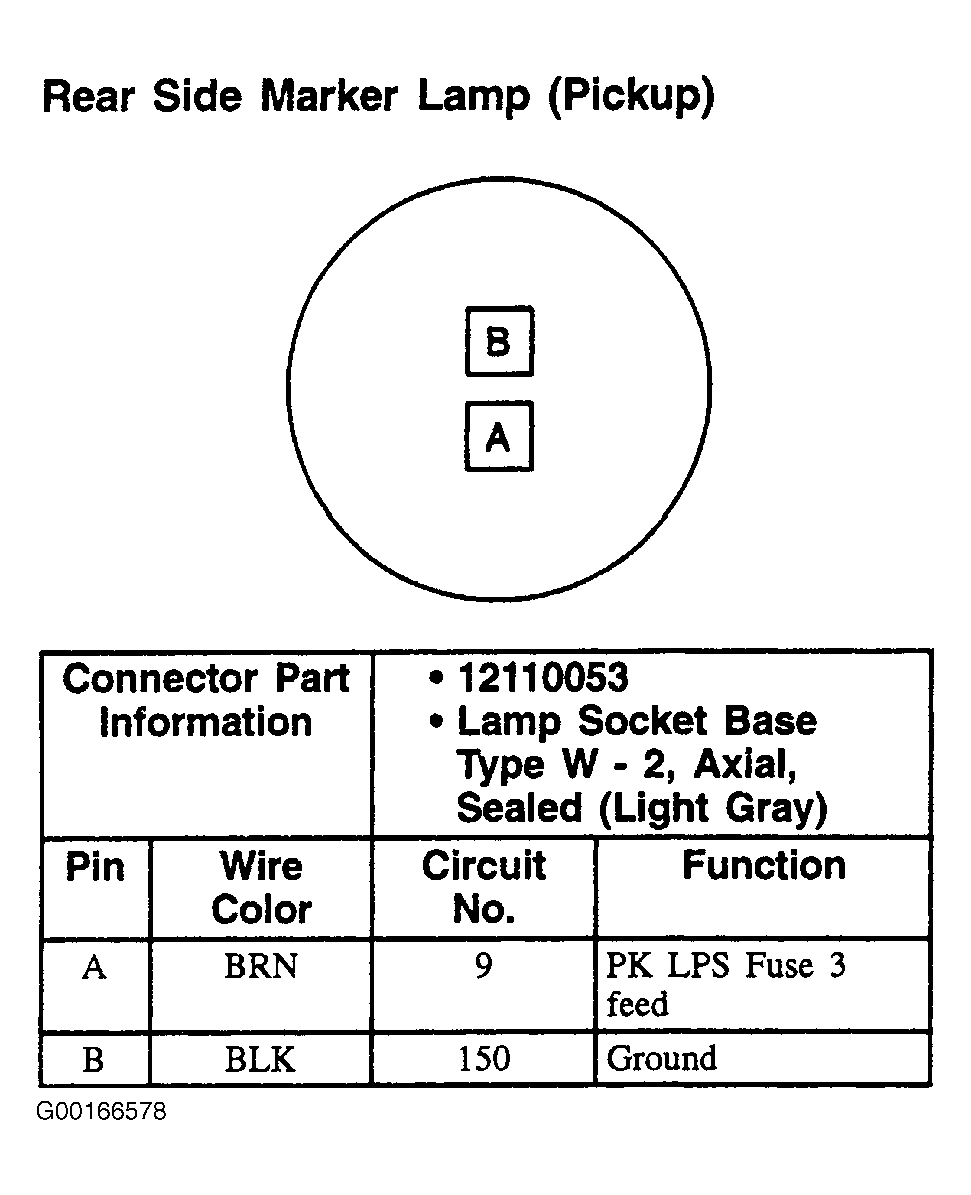

Fig 1: Rear Side Marker Lamp (Pickup) - 2-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
