Remote Control Door Lock Receiver (Pickup)

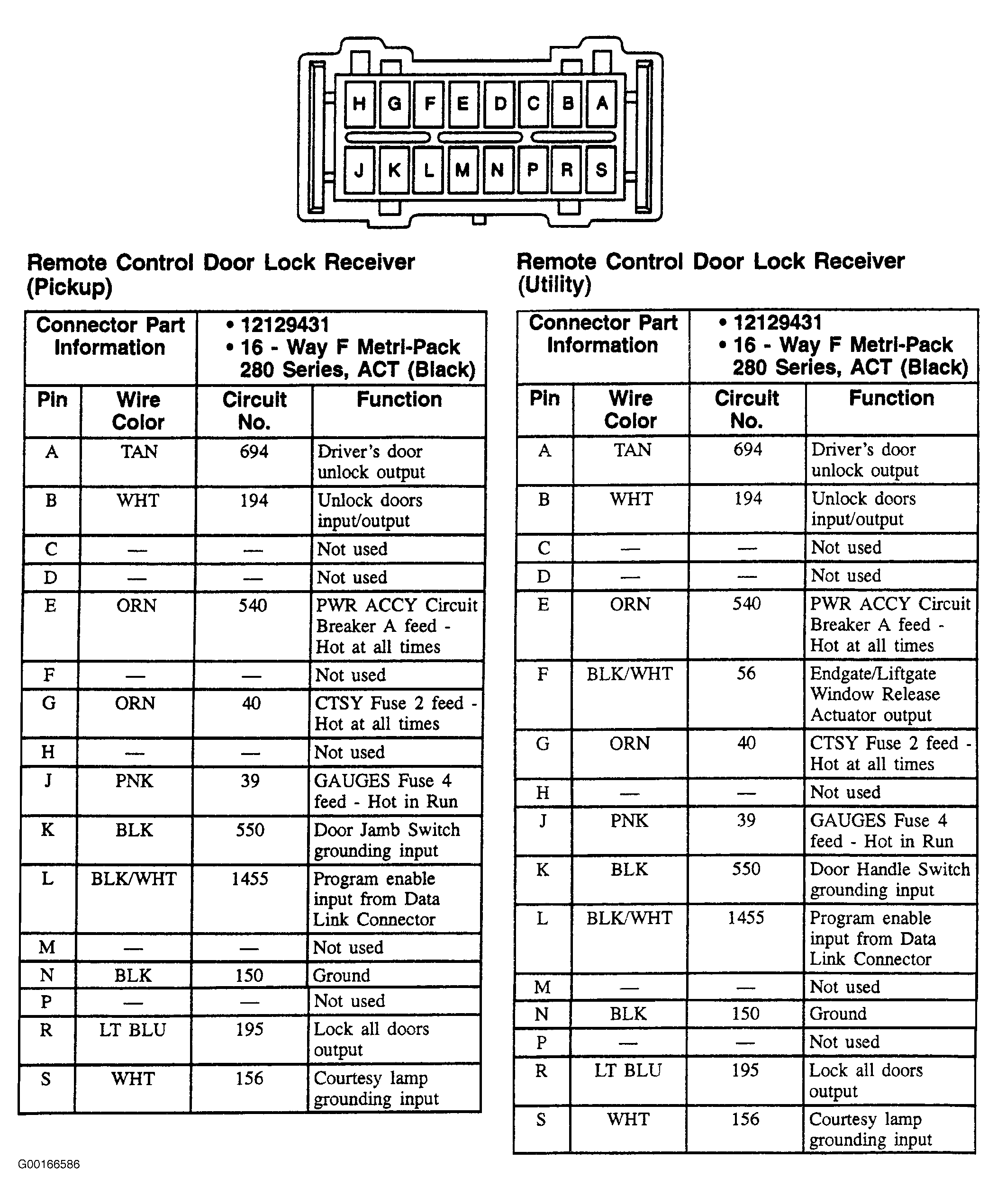

Fig 1: Remote Control Door Lock Receiver - 16-Pin Connector, Black
G00166586Courtesy of GENERAL MOTORS CORP.
