TCC Brake & Cruise Control Release Switch

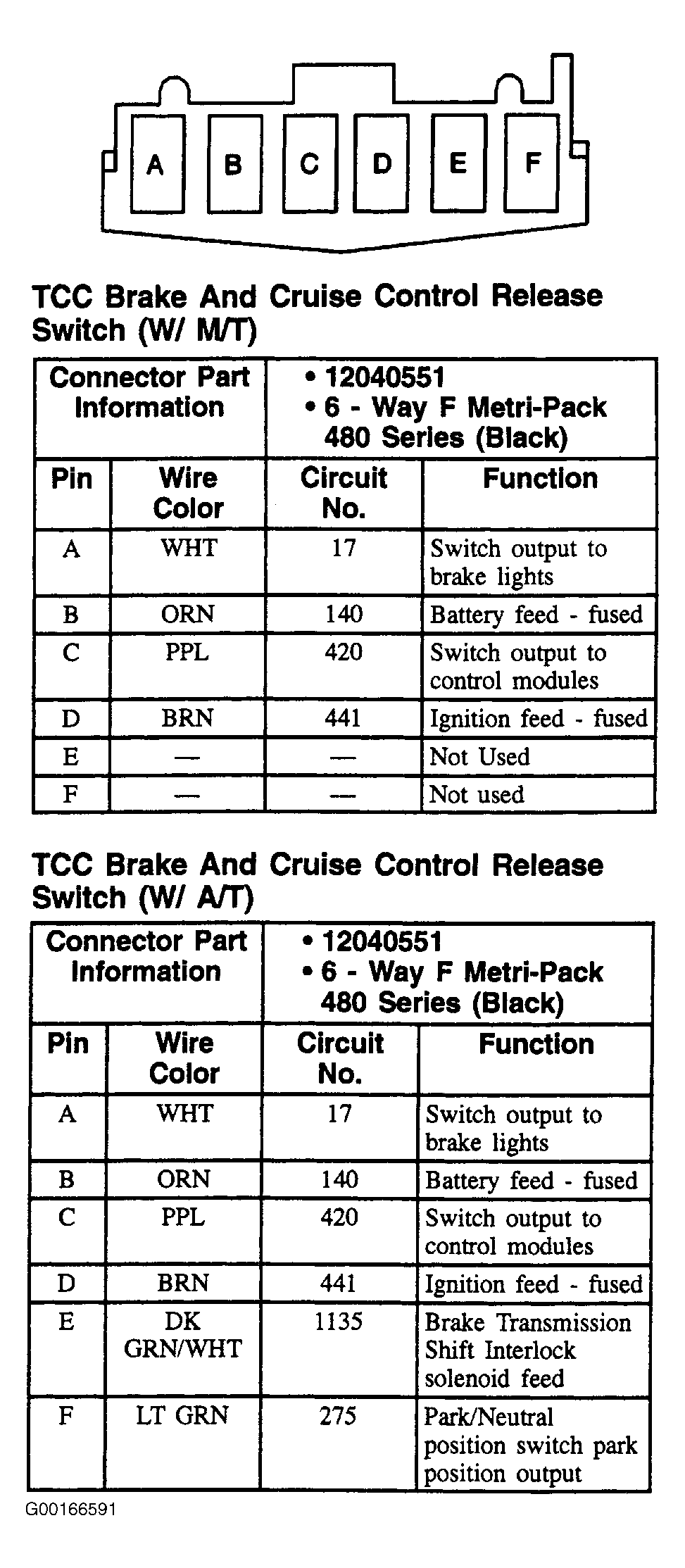

Fig 1: TCC Brake & Cruise Control Release Switch - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
