Transfer Case W/ Electric Shift 4WD

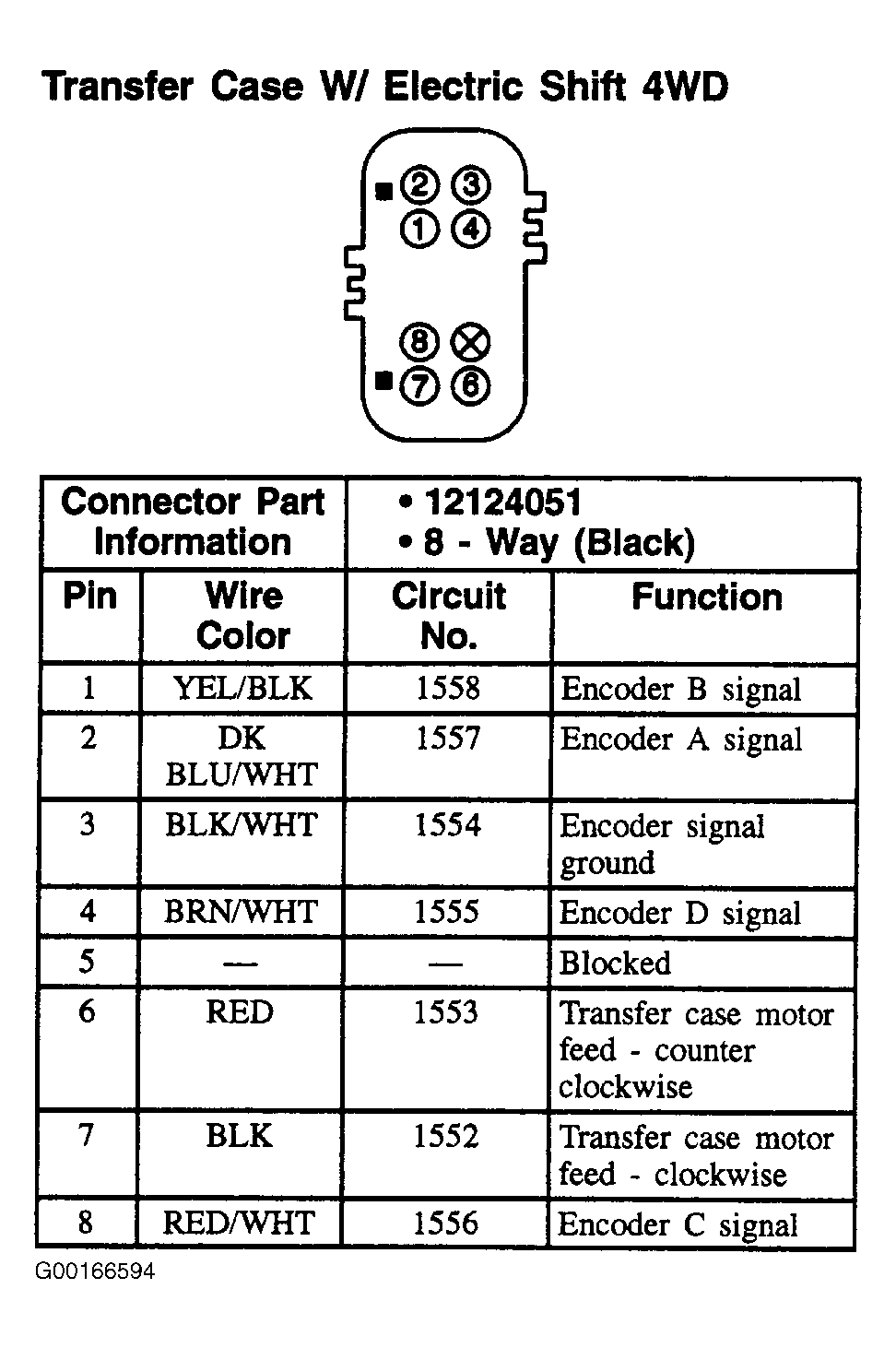

Fig 1: Transfer Case W/ Electric Shift 4WD - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
