C100 To C603: C103

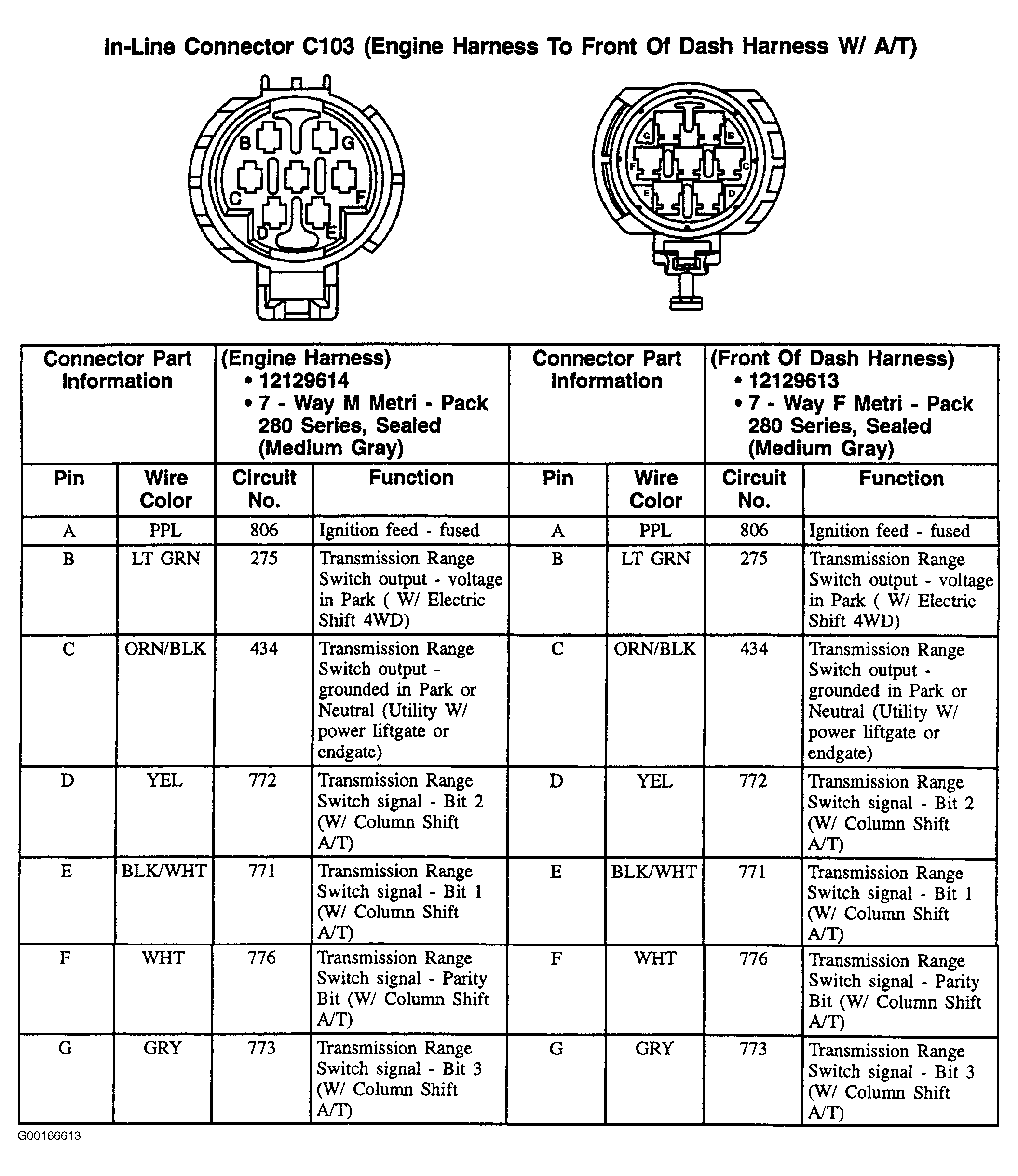

Fig 1: C103 - 7-Pin Connector, Medium Gray

G00166613

Courtesy of GENERAL MOTORS CORP.
