Front Side Door Jamb Switch

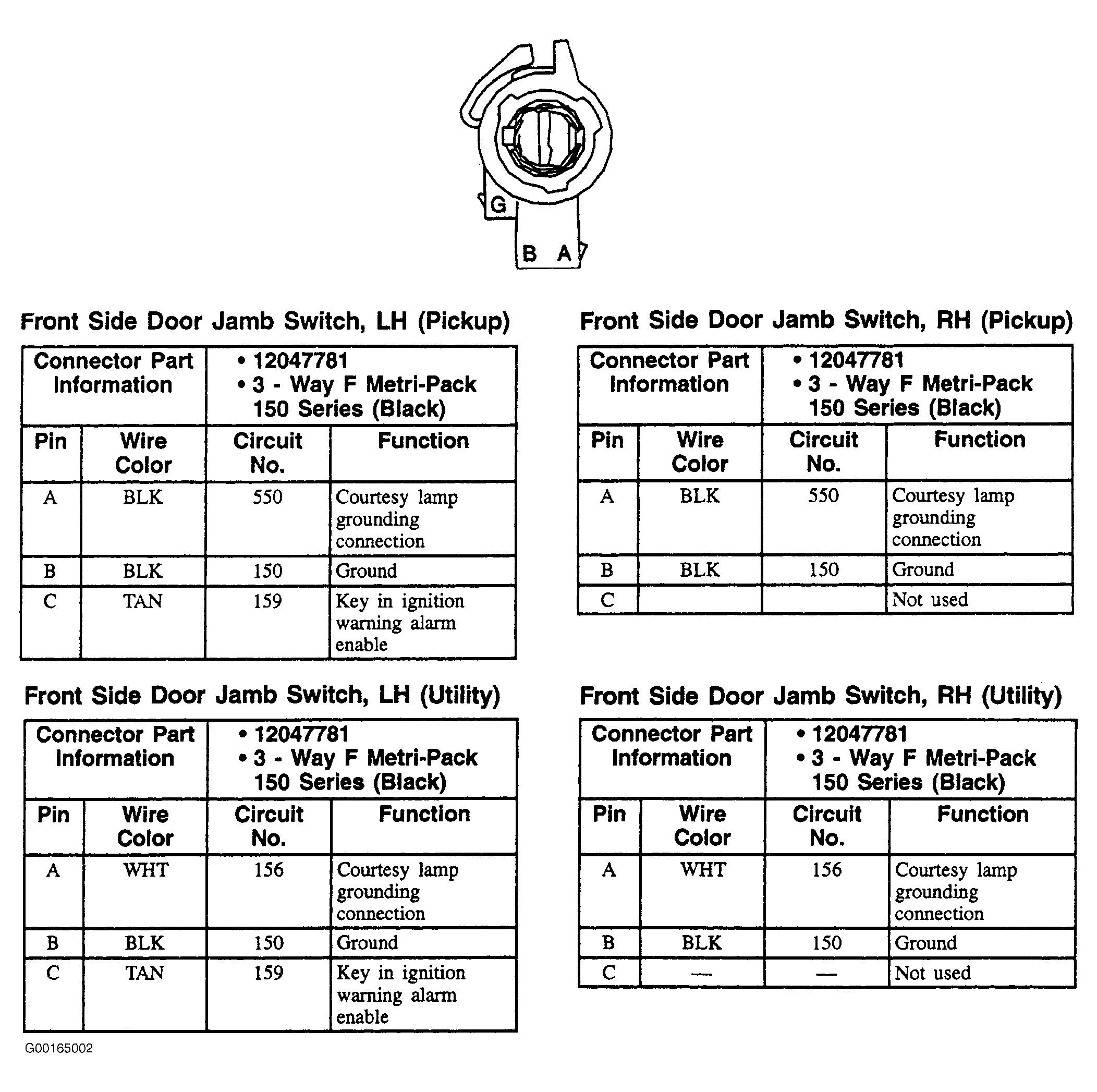

Fig 1: Front Side Door Jamb Switch - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
