Instrument Panel Ashtray Lamp

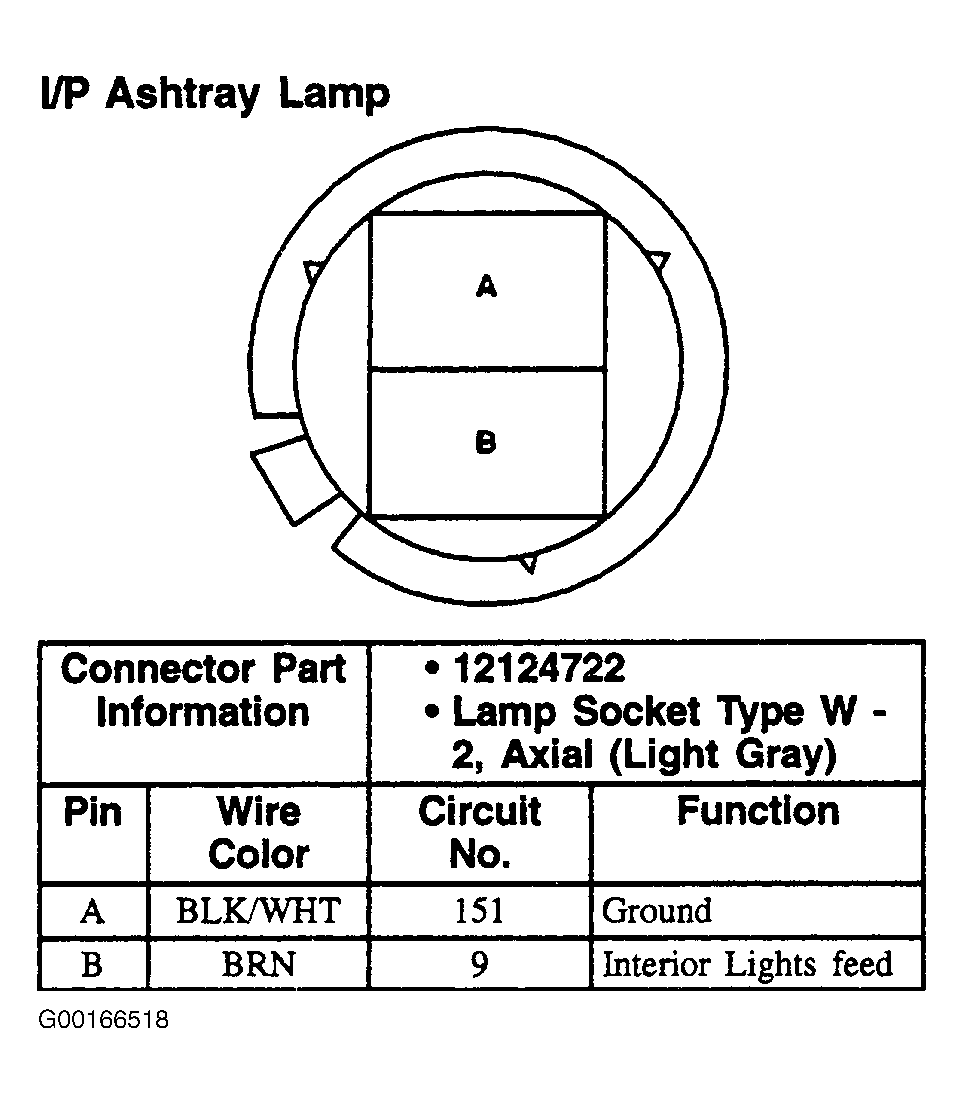

Fig 1: Instrument Panel Ashtray Lamp - 2-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
