Service Point Locations

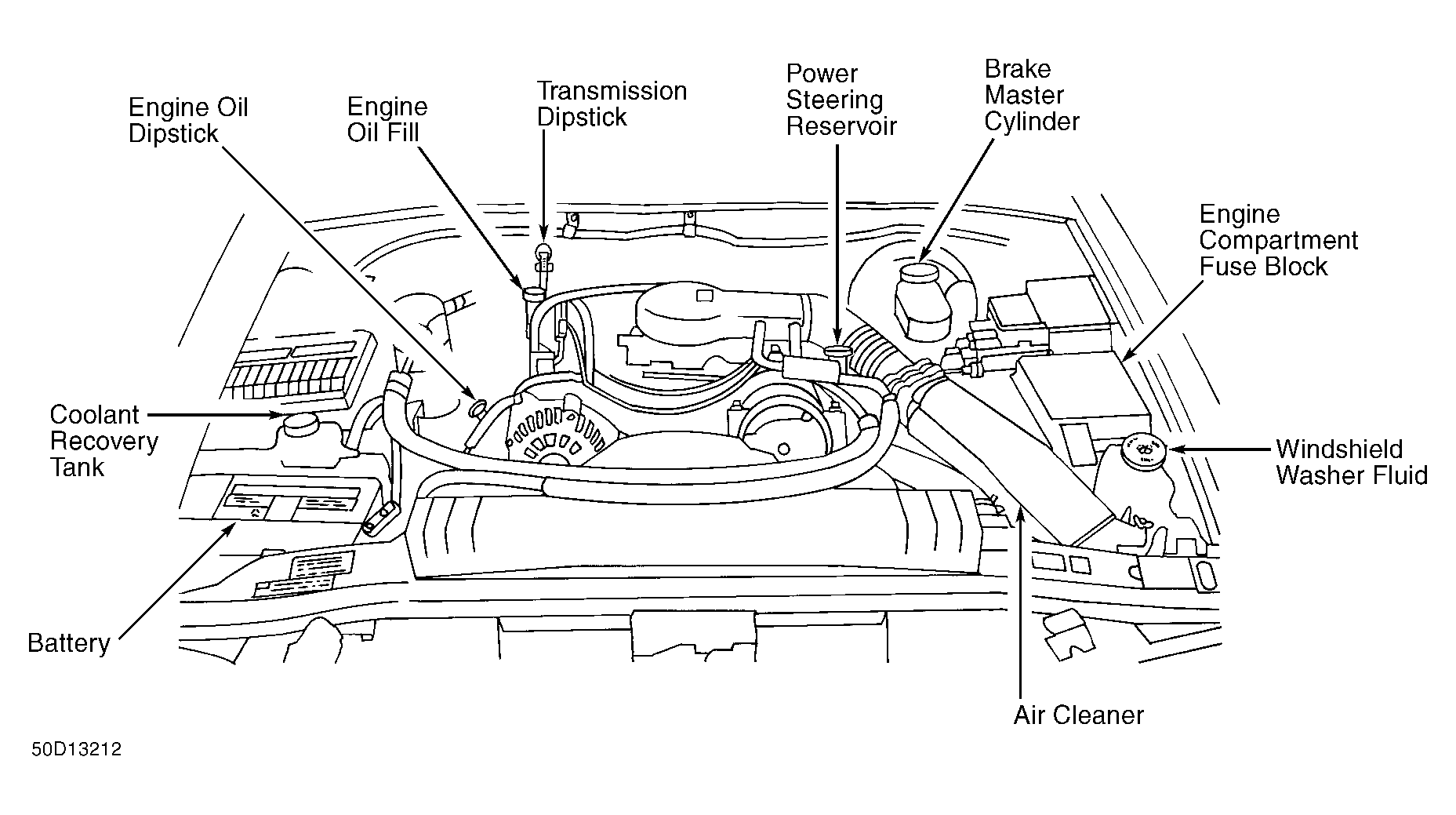

Fig 1: Service Point Locations

Courtesy of GENERAL MOTORS CORP.

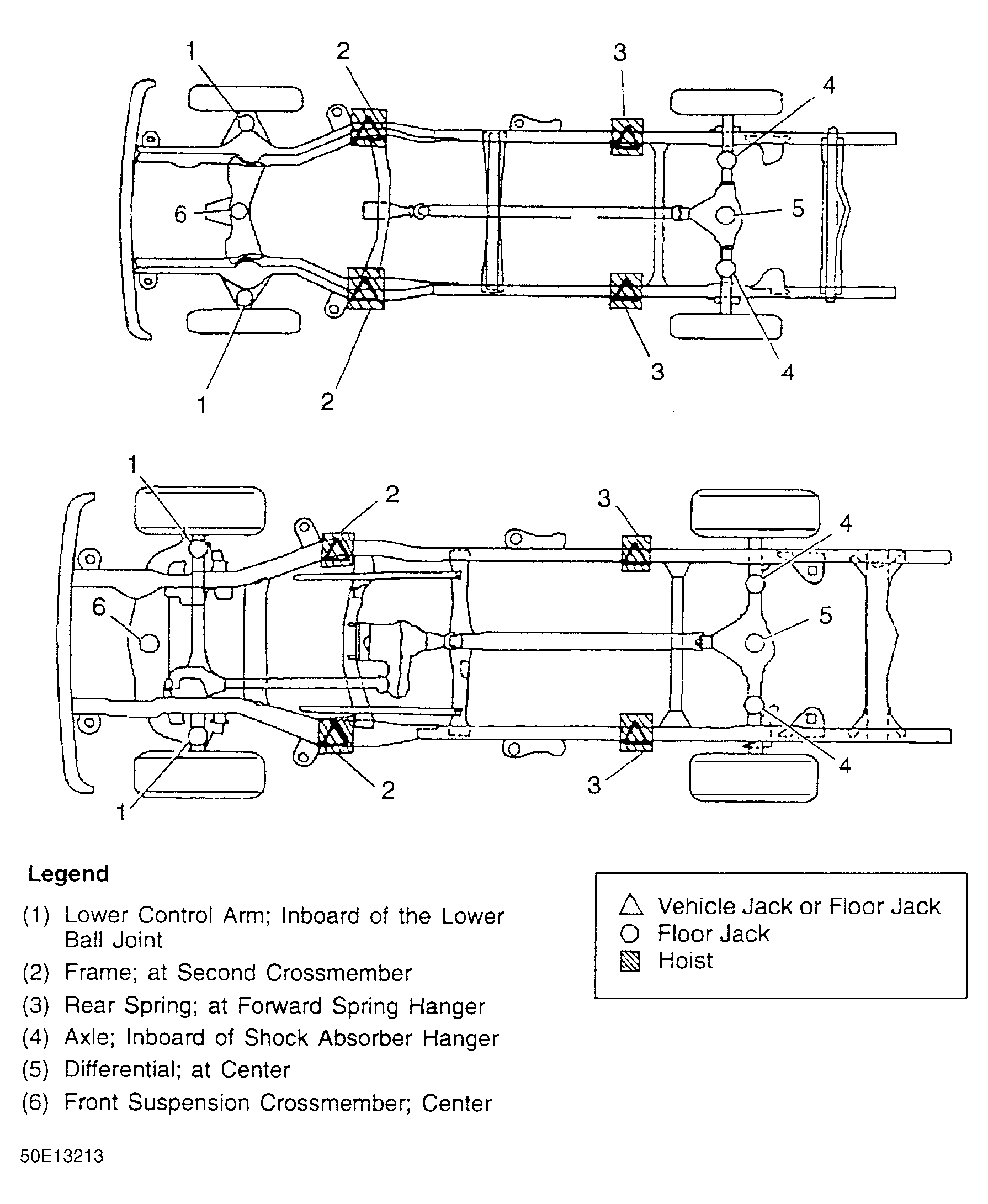

Fig 2: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
