Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

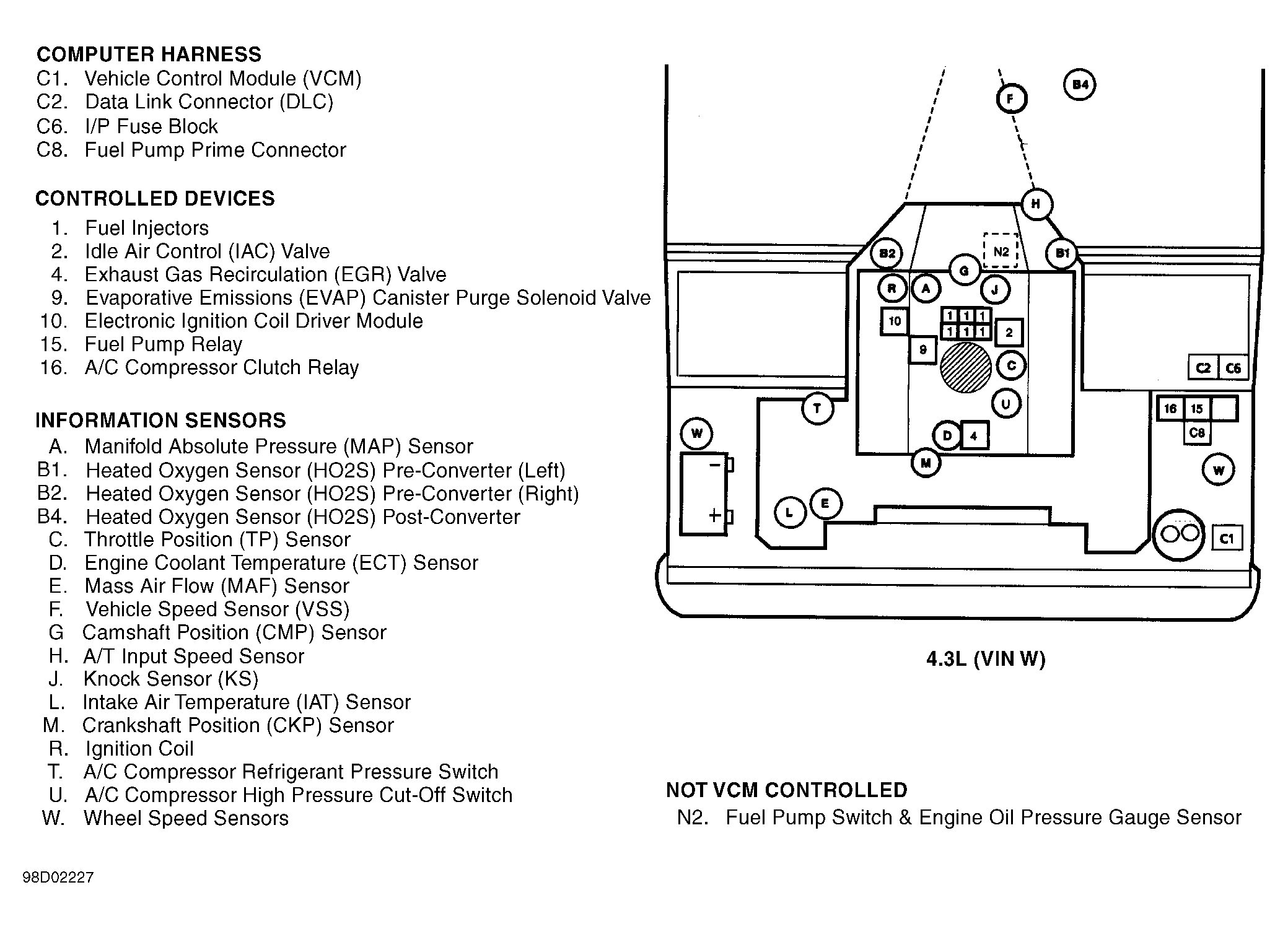

Fig 1: Engine Compartment (4.3L VIN W)

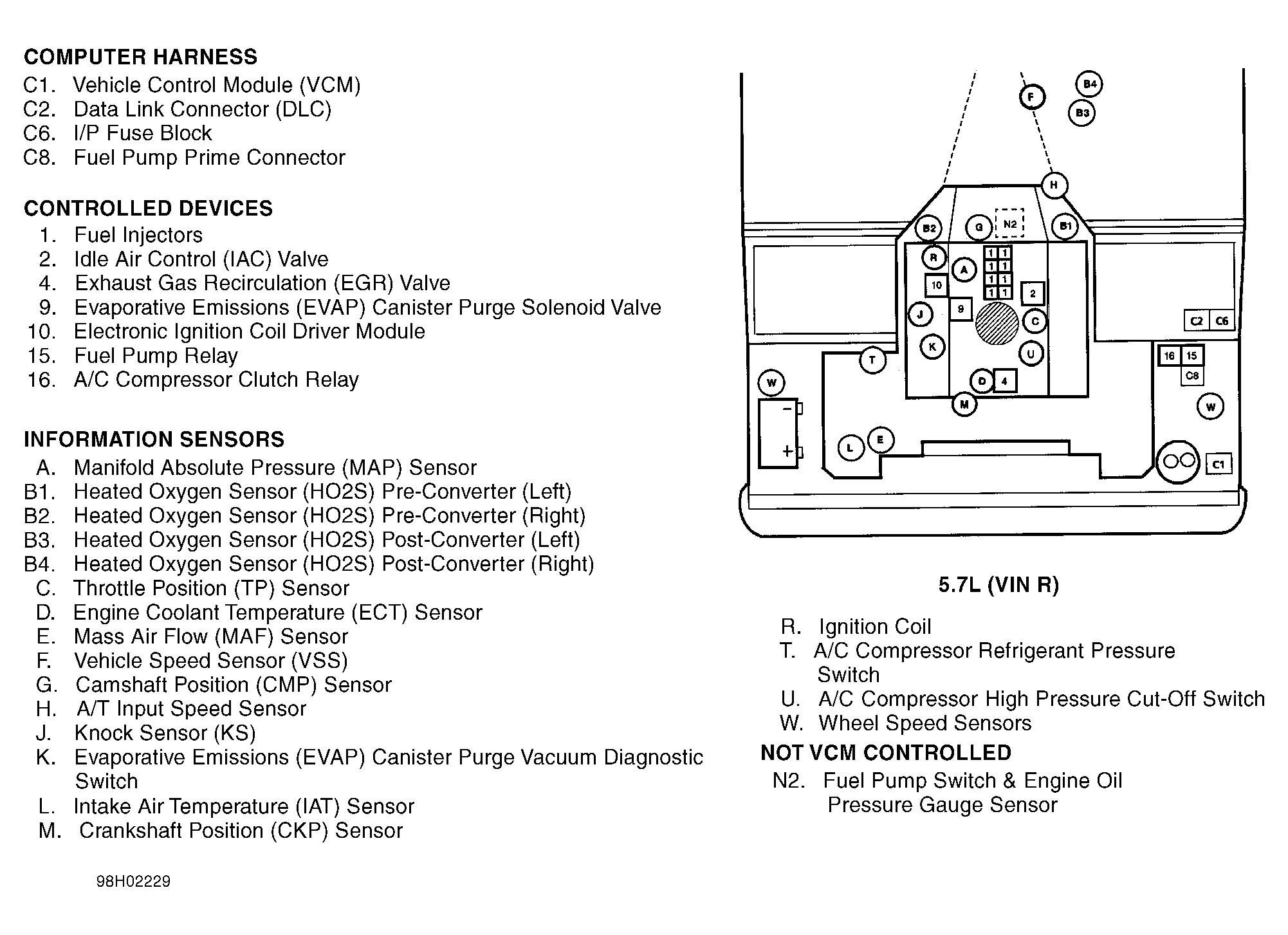

Fig 2: Engine Compartment (5.7L VIN R)

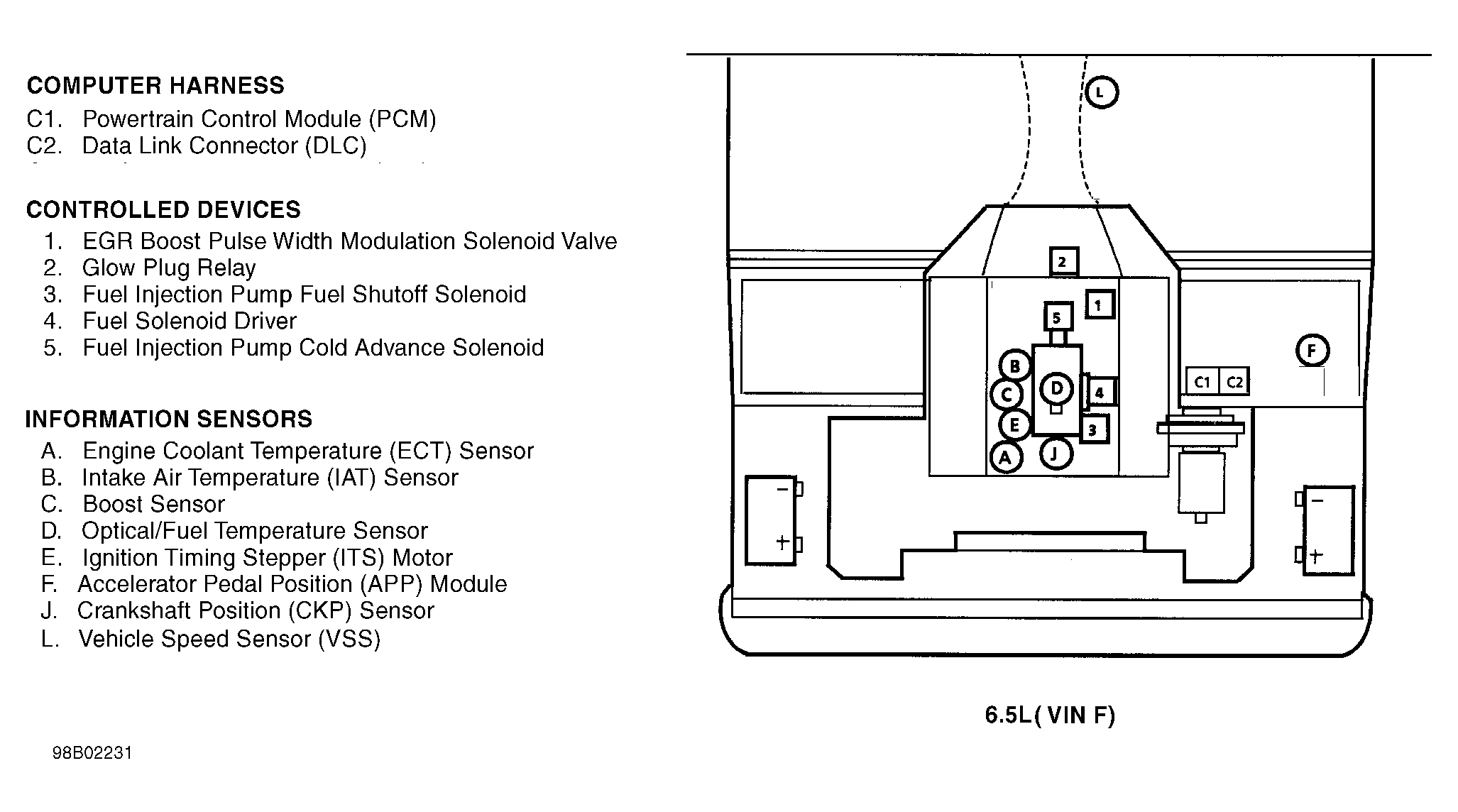

Fig 3: Engine Compartment (6.5L VIN F)

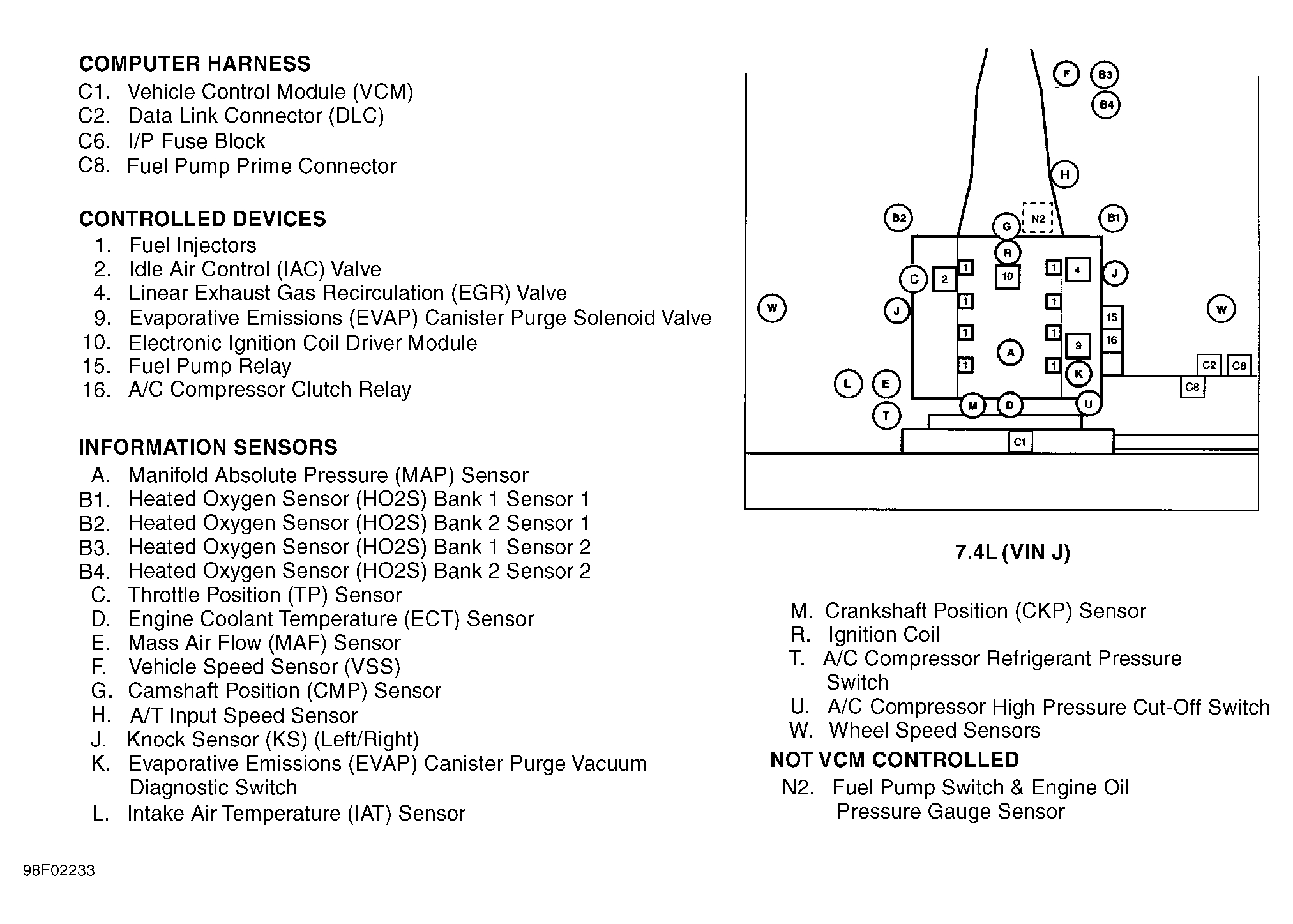

Fig 4: Engine Compartment (7.4L VIN J)
