Engine Controls - System & Component Testing - 6.5L Turbo Diesel
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

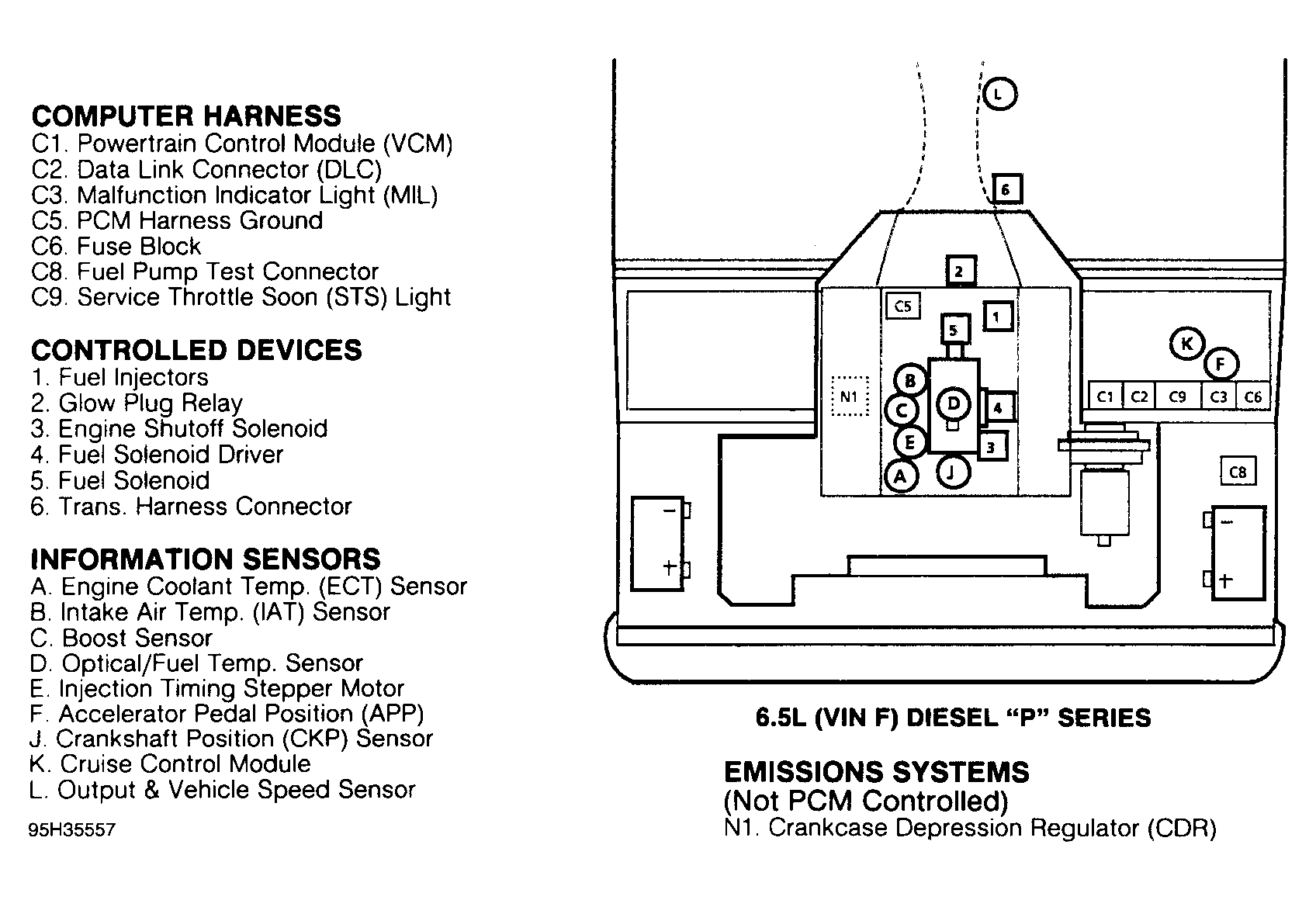

Fig 1: Component Locations (VIN F)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
