Engine Controls - System & Component Testing - 4.3L
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

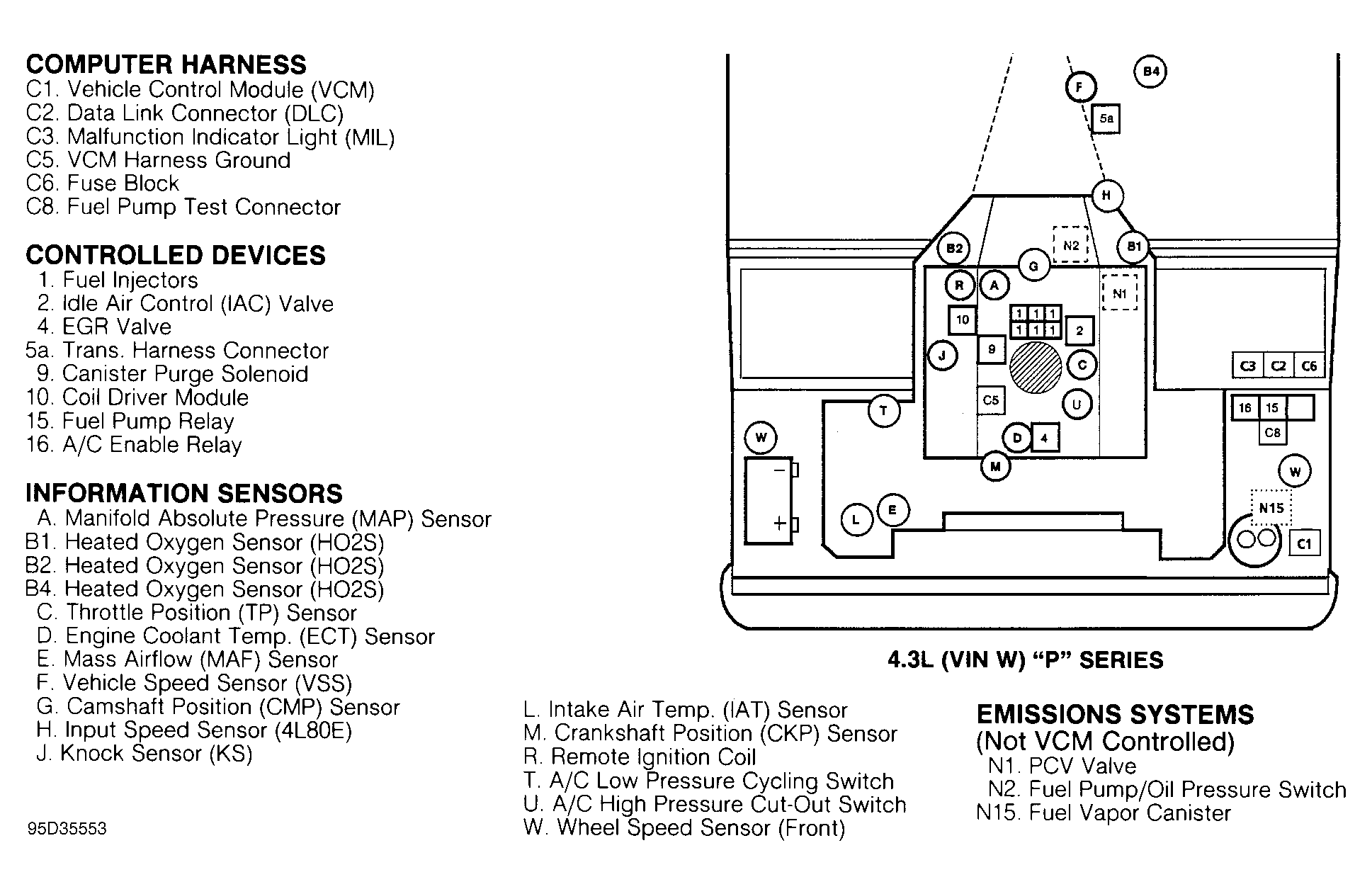

Fig 1: Component Locations For 4.3L (VIN W)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
