Component Locations

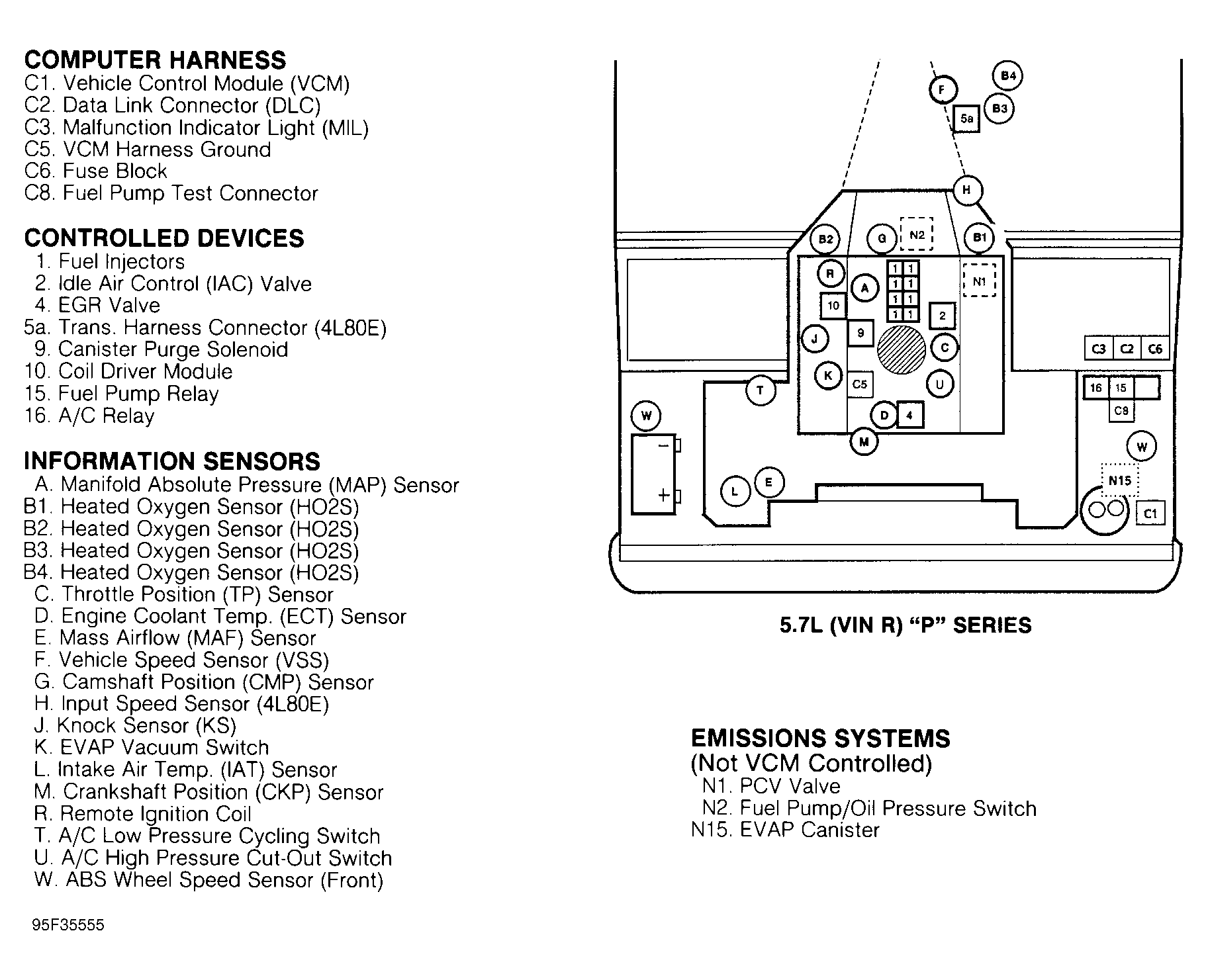

Fig 1: Component Locations (VIN R)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
