Engine Controls - System & Component Testing - 7.4L
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

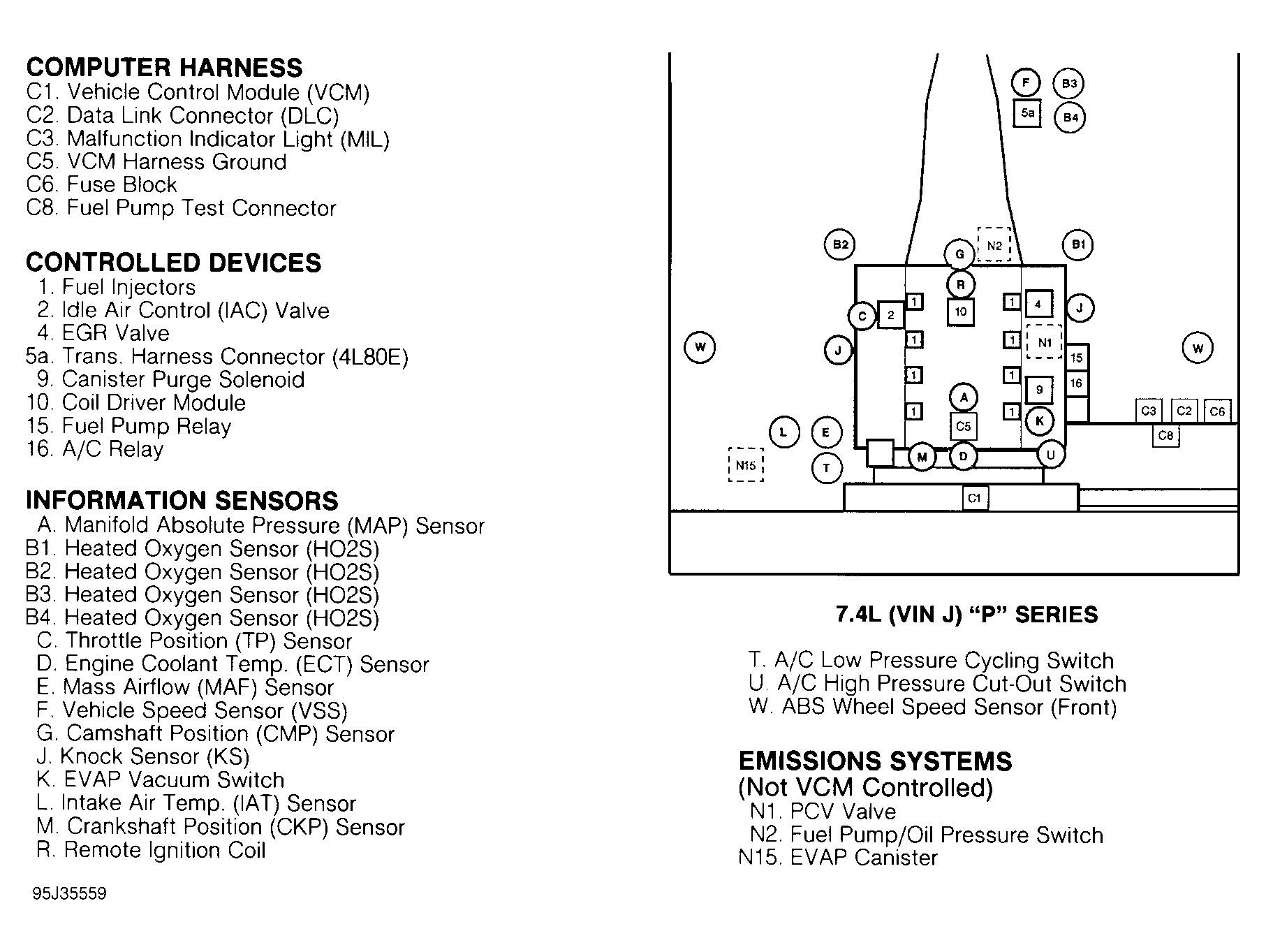

Fig 1: Component Locations (VIN J)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
