Powertrain Control Module (Pcm) Connector Terminal Identification: Notes

Fig 1: Identifying Powertrain Control Module (PCM) Harness Connector Terminals (2.2L)
G98F00864Courtesy of GENERAL MOTORS CORP.

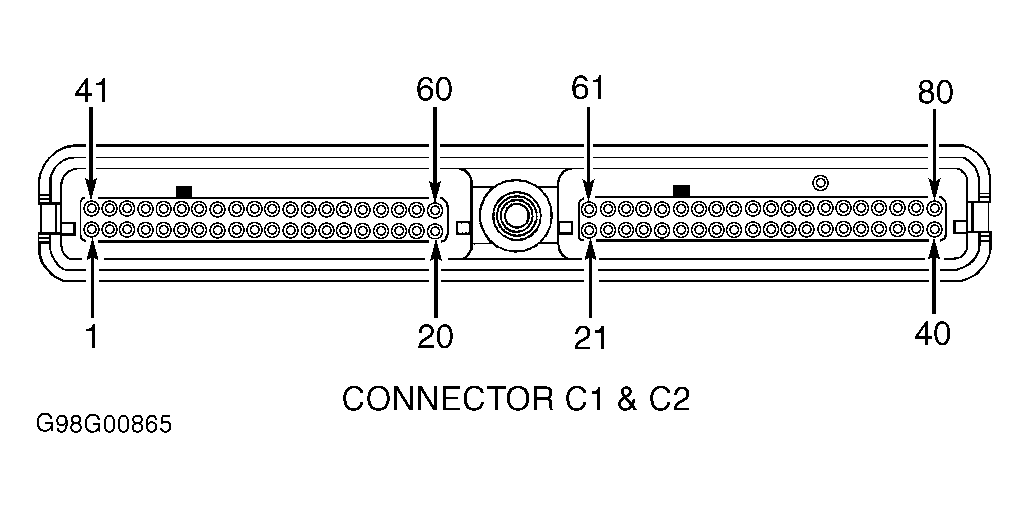

Fig 2: Identifying Powertrain Control Module (PCM) Harness Connector Terminals (3.4L, 4.8L, 5.3L & 6.0L)
G98G00865Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Powertrain Control Module (PCM) Harness Connector Terminals (4.3L, 5.0L, 5.7L & 7.4L)
G98H00866Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Powertrain Control Module (PCM) Harness Connector Terminals (6.5L)
G98I00867Courtesy of GENERAL MOTORS CORP.
